Environmental Test Chamber Equipped With Water Cooling Xenon Arc Light Source For Weathering Tests According To ISO 4892

Environmental Test Chamber Equipped With Water Cooling Xenon Arc Light Source For Weathering Tests According To ISO 4892

Brand Name:	Sinuo
Model Number:	SN883-X65
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Equipment Dimensions:

124cm×114cm×202cm (W×D×H)

Exposure Area:

6500cm2

Light Source Life:

2000h

Irradiance Display Band:

340nm, 420nm, 300～400nm Optional

Blackboard Temperature:

40℃～110℃

Black Mark Temperature:

40℃～120℃

Temperature In The Chamber:

38℃～80℃

Humidity In The Chamber:

30%RH～75%RH

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Highlight:

water cooling xenon arc test chamber

ISO 4892 weathering test chamber

environmental test chamber with xenon light

Product Description

Environmental Test Chamber with Water Cooling Xenon Arc Light Source

ISO 4892 Water-cooled Xenon Test Chamber for accelerated weathering tests according to international standards

Compliance Standards

AE J2412, SAE J2527, ASTMG 155ISO 105-B02
ISO 105-B04, ISO 105-B06, ISO 4892-2-A
ISO 11341-1 and related test methods

Equipment Overview

This weatherproof test chamber utilizes a long arc water-cooled xenon lamp as the light source to provide environmental simulation and accelerated aging testing for scientific research, product development, and quality control applications.

Widely used across multiple industries including automotive materials, plastics, packaging, coatings, inks, dyes, stabilizers, textiles, and electronics.

Weathering testing is essential for quality inspection of materials such as paints, plastics, aluminum-plastic panels, and automotive safety glass products.

Technical Specifications

Model	SN883-X65
Dimensions	124cm * 114cm * 202cm (WDH)
Exposure Area	6500cm² / Approximately 65 standard samples (140mm*70mm)
Light Source	6.5kW long arc water-cooled xenon lamp (Q-LAB imported)
Light Source Life	Approximately 2000 hours (at irradiance 0.51W/m² @340nm)
Irradiance Display Bands	340nm, 420nm, 300-400nm optional
Irradiance Range	0.3W/m² - 1.1W/m² (@340nm) 40W/m² - 120W/m² (@300nm-400nm)
Sample Temperature	Blackboard: 40℃-110℃ Black mark: 40℃-120℃
Chamber Temperature	38℃-80℃
Power Source	AC 208V, 60Hz, three-phase five-wire (including ground)
Water Source	Tap water: 0.14-0.3 MPa Laboratory secondary water: 0.08-0.15 MPa Consumption: ~150 L/day
Drain Requirements	Height from ground: ≤15cm Interface diameter: ≥5cm
Ambient Conditions	Temperature: 18℃-28℃ Humidity: 10%RH-85%RH
Installation Space	≥280cm300cm280cm (WDH)
Environment Requirements	Indoor, clean, low dust, flat ground, no corrosive, flammable, or explosive substances

Standard Configuration

Host Unit (1 Set)
Q-LAB 6.5kW Xenon Lamp (1 PC)
Simulated Outdoor Daylight Filter Set (1 Set)
Irradiance Calibrator (1 Set)
Pure Water Machine (1 Set)
Chiller Unit (1 Set)

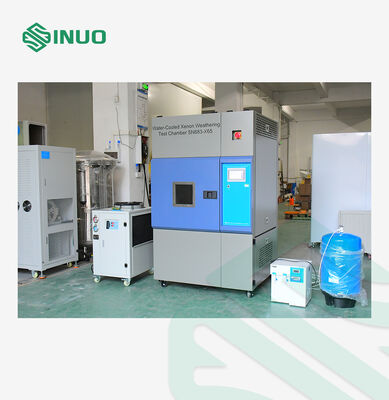

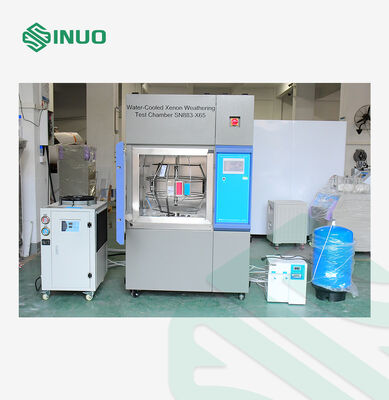

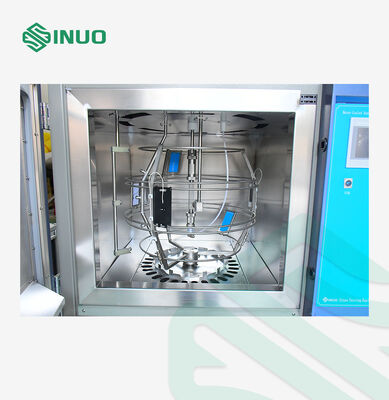

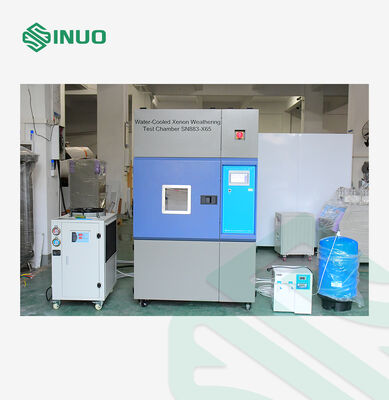

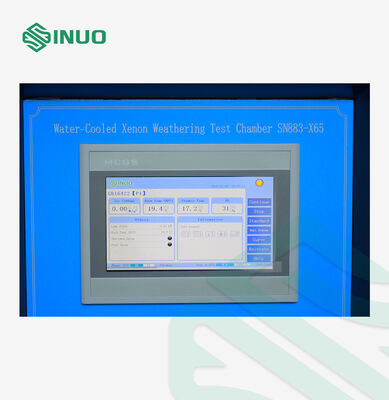

Product Images

Tags:

Water Cooling Xenon Arc Environmental Test Chamber with 6500cm2 Exposure Area and 2000h Light Source Life for Accelerated Weathering
