Water-Cooled Xenon Arc Weathering Chamber with ISO 4892 Compliance and 6500cm2 Exposure Area for Environmental Testing

Water-Cooled Xenon Arc Weathering Chamber with ISO 4892 Compliance and 6500cm2 Exposure Area for Environmental Testing

Brand Name:	Sinuo
Model Number:	SN883-X65
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Equipment Dimensions:

124cm×114cm×202cm (W×D×H)

Exposure Area:

6500cm2

Light Source Life:

2000h

Irradiance Display Band:

340nm, 420nm, 300～400nm Optional

Blackboard Temperature:

40℃～110℃

Black Mark Temperature:

40℃～120℃

Temperature In The Chamber:

38℃～80℃

Humidity In The Chamber:

30%RH～75%RH

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Highlight:

water cooling xenon arc test chamber

ISO 4892 weathering test chamber

environmental test chamber with xenon light

Product Description

Environmental Test Chamber with Water Cooling Xenon Arc Light Source

ISO 4892 Water-cooled Xenon Test Chamber for Weathering Tests According to ISO 4892

Compliance Standards

This water-cooling xenon weathering test chamber conforms to multiple international test methods including:

SAE J2412, SAE J2527
ASTM G155
ISO 105-B02, ISO 105-B04, ISO 105-B06
ISO 4892-2-A, ISO 11341-1

Equipment Overview

This weatherproof test chamber utilizes a long arc water-cooled xenon lamp as the light source to provide environmental simulation and accelerated aging testing for scientific research, product development, and quality control applications.

Widely used across multiple industries including automotive materials, plastics, packaging, coatings, inks, dyes, stabilizers, textiles, and electronics. Weathering testing is an essential component of product quality inspection, particularly for materials such as paints, plastics, aluminum-plastic panels, and automotive safety glass.

Technical Specifications

Model	SN883-X65
Dimensions	124cm × 114cm × 202cm (W × D × H)
Exposure Area	6500cm² / Approximately 65 standard samples (140mm × 70mm)
Light Source	6.5kW long arc water-cooled xenon lamp (imported from Q-LAB, USA)
Light Source Life	Approximately 2000 hours (based on irradiance 0.51W/m² @340nm)
Irradiance Display Bands	340nm, 420nm, 300-400nm optional
Irradiance Range	0.3W/m² - 1.1W/m² (@340nm) 40W/m² - 120W/m² (@300nm-400nm)
Sample Temperature	Blackboard temperature: 40℃ - 110℃ Black mark temperature: 40℃ - 120℃
Chamber Temperature	38℃ - 80℃
Power Source	AC 208V, 60Hz, three-phase five-wire (including ground wire)
Water Source	Tap water: 0.14 - 0.3 MPa Laboratory secondary water: 0.08 - 0.15 MPa Laboratory secondary water consumption: approximately 150 L/day
Drain Requirements	Drain height from ground: ≤15cm Drain interface diameter: ≥5cm
Ambient Temperature	18℃ - 28℃
Environment Humidity	10%RH - 85%RH
Installation Space	≥280cm × 300cm × 280cm (W × D × H)
Environmental Conditions	Indoor, clean environment with minimal dust, flat ground, no corrosive, flammable, or explosive gases, liquids, or dust in surrounding area

Standard Configuration

Host: 1 Set
Q-LAB 6.5kW xenon lamp: 1 PC
Simulated outdoor daylight filter set: 1 set
Irradiance calibrator: 1 set
Pure water machine: 1 set
Chiller: 1 set

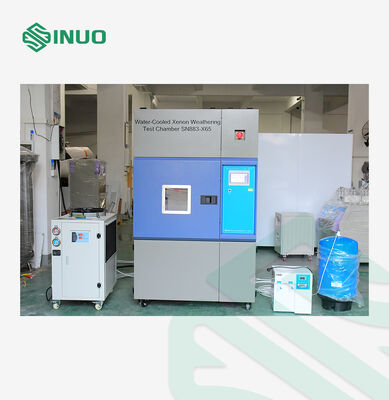

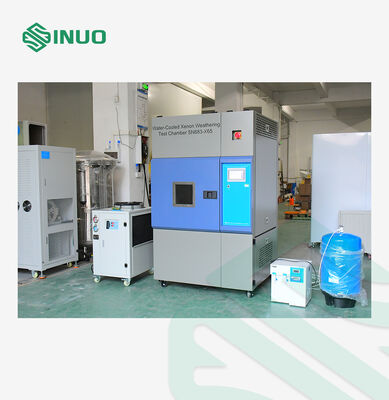

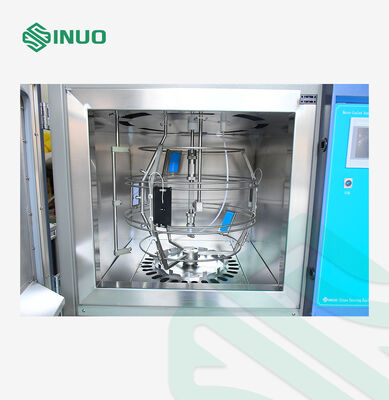

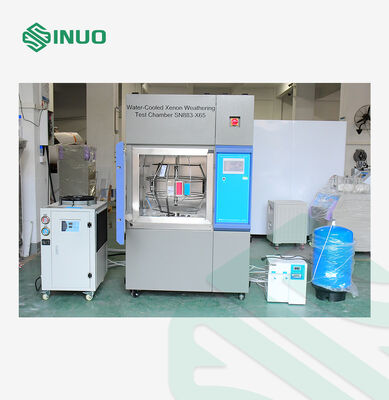

Product Images
