UL1581 Compliant Flammability Test Chamber with Adjustable Flame Angles and 1100°C Temperature Range for Flame Testing Equipment

Name: UL1581 Compliant Flammability Test Chamber with Adjustable Flame Angles and 1100°C Temperature Range for Flame Testing Equipment
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN7711
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN7711
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Equipment Weight:

350kg

Equipment Size:

1.7*1.3*2.4m(W*D*H)

Gas Category:

Methane

Test Space:

4m³

Burning Angles:

0°, 20°, 45° Adjustable

Burner Diameter:

9.5mm ± 0.5mm

Temperature Measurement Range:

MAX 1100°C

Temperature Measurement Distance:

25±1mm/55±1mm

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

UL1581 Compliant Flammability Test Chamber

Adjustable Flame Angles Flame Testing Equipment

1100°C Temperature Range UL94 Test Chamber

Product Description

Flammability Testing Equipment for Wire and Cable Materials

Comprehensive flame resistance evaluation equipment meeting UL94 and UL1581 standards for accurate flammability testing of wire and cable materials.

Compliance Standards

This flammability test chamber meets the rigorous requirements of UL1581 and UL94 flame tests for wire and cable materials.

Equipment Overview

The SN7711 Flammability Test Chamber from Sinuo Testing Equipment provides reliable flame resistance evaluation for wires, cables, and cords. Designed to simulate flame exposure during early fire stages, it effectively assesses fire hazards with precision and safety.

Key Features

Compliant with UL1581 VW-1 & FT2 test standards
Dual flame power: 225W & 500W
Automatic ignition system for enhanced safety
Mitsubishi PLC control with 7" touchscreen interface
Durable stainless steel chamber with large observation window
High-accuracy Omega K-type thermocouple
Adjustable flame angles: 0°, 20°, 45°

Technical Specifications

Parameter	Specification
Applicable Standards	UL1581, UL94
Overall Dimensions (WDH)	1700 * 1300 * 2400 mm
Weight	Approximately 350 kg
Chamber Design	Stainless steel with matte black background and exhaust ventilation
Internal Test Volume	4 m³
Gas Type	Methane
Flames	225W and 500W
Typical Flow Rates (Reference)	500W: 965±30 ml/min; 225W: 405±10 ml/min
Flame Height Range	20mm to 125mm ±1mm, adjustable
Temperature Range	Up to 1100°C
Power Supply	AC 220V / 50Hz (customizable for 230V / 50Hz regions)
Control System	Mitsubishi PLC with 7-inch VEINVIEW touchscreen interface
Ignition Method	Fully automatic ignition for operator safety
Burning Angle Options	Adjustable to 0°, 20°, or 45°
Burner Dimensions	Ø9.5mm ± 0.5mm, Length: 100mm, compliant with ASTM 5025
Timing Function	Programmable timer up to 9999 x 0.1s
Thermocouple	U.S. Omega K-type, Ø0.5mm armored stainless steel
Temperature Sensing Distance	25 ±1mm and 55 ±1mm

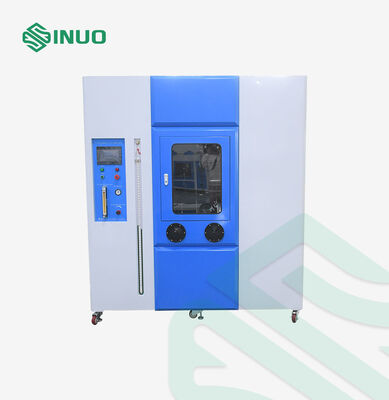

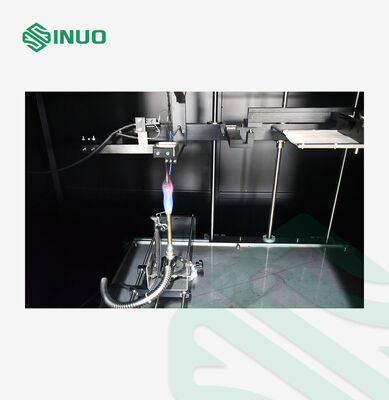

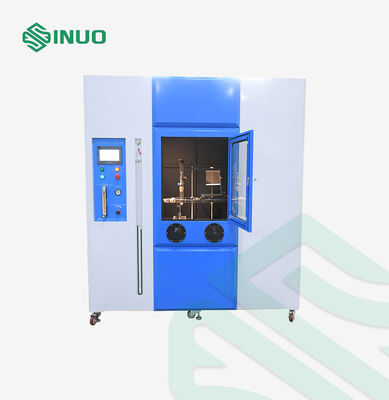

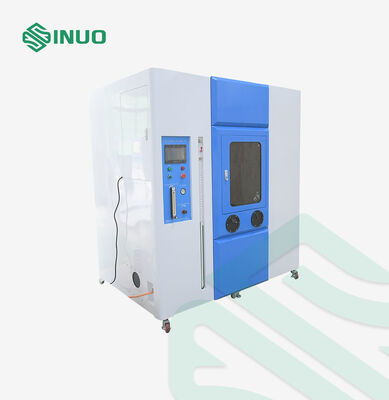

Product Images
