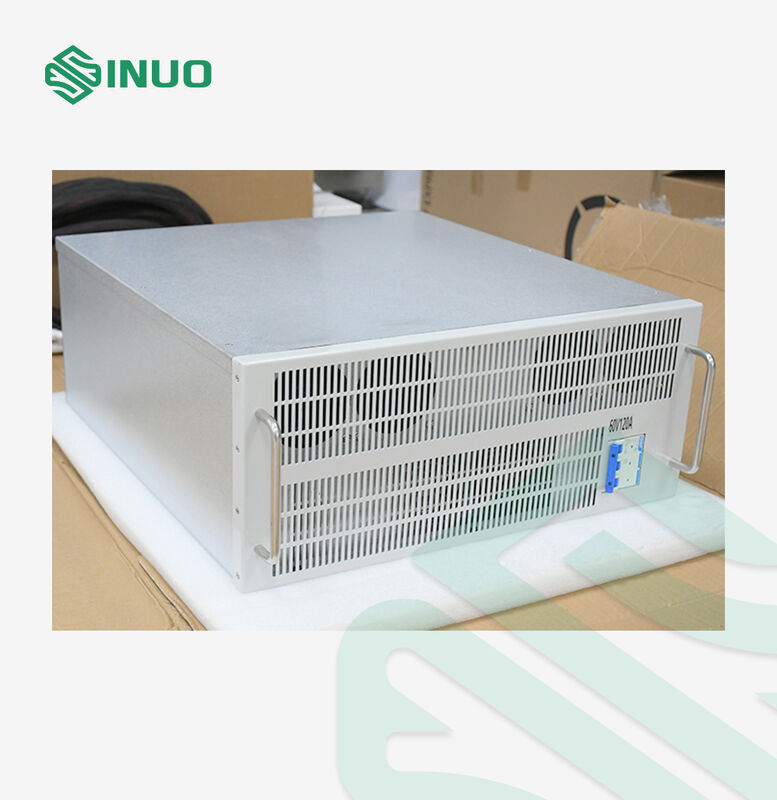

Battery Charge and Discharge Tester Lithium Battery Testing Life Cycle Tester 60V 120A

Battery Charge and Discharge Tester Lithium Battery Testing Life Cycle Tester 60V 120A

Brand Name:	Sinuo
Model Number:	SN552-30V200A
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Charging Voltage Range:

0V~60V

Discharge Voltage Range:

8V~60V

Maximum Output Current:

±120A

Minimum Output Current:

±300mA

Current Start Response Time:

≤20ms

Current Conversion Time:

≤40ms

Number Of Main Channels:

2 Channels

Channel Action Mode:

Fully Independent

Packaging Details:

Plywood Case

Supply Ability:

1 sets/month

Product Description

Battery Charge and Discharge Tester Lithium Battery Testing Life Cycle Tester 60V 120A

Equipment overview

The feedback type high-precision battery pack detection equipment can realize the test of various performance indicators such as lithium-ion battery capacity, state of charge, overcharge and over-discharge. The equipment has the characteristics of high power, high efficiency, high precision, and high performance. It adopts electric energy feedback technology, which can greatly reduce the heat emission, power consumption of the equipment.

The equipment is mainly composed of a host computer, a middle computer, a DC/AC module, a DC/DC module, a lower computer, a data acquisition and processing system, etc. It can collect the voltage, current, capacity, energy and other information of each single battery in real time. It can optionally support battery temperature data collection. The collected data is stored in a specially designed database, and provides various data statistics, analysis and report generation functions.

Technical Parameters

Performance		Index parameter
Number of main channels	2 Channels
Channel action mode	Fully independent
Main channel working mode	Charging: constant current charging CC, constant voltage charging CV, constant current constant voltage charging CCCV, constant current constant voltage conversion during charging No impact; Discharging: constant current discharge CD, constant power discharge CP, constant voltage discharge; Standing, stopping.
Main channel test termination condition	Time, voltage, current, capacity, etc.
Main channel voltage	Charging range	0V~60V
	Discharge range	8V~60V (8V is the device port voltage)
	Accuracy	±(0.05%RD+0.05%FS)
	Resolution	0.1mV
Main channel Current	Maximum output current	±120A
	Minimum output current	±300mA
	Accuracy	±(0.05%RD+0.05%FS)
	Resolution	0.1mA
	Current start response time	≤20ms
	Current conversion time	≤40ms
Time	Resolution	1000mS
Power	Output Power	Maximum power of single channel continuous operation: 7200W
Power	Stability	±0.1%FS
Efficiency	Highest charging efficiency	85%
Efficiency	Highest discharging efficiency	85%
Feed network	Harmonic	≤3%
Feed network	Power Factor	≥0.99
Auxiliary channel parameter cutoff function	The main channel step can be set to stop or switch when the auxiliary channel signal reaches a certain condition.
Communication method		The device uses an RJ-45 network interface to ensure the stability and real-time performance of long-distance data collection.

Details

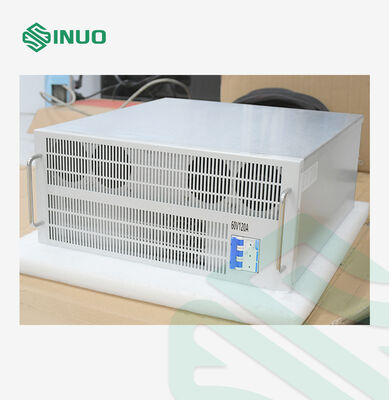

Battery Charge and Discharge Tester Lithium Battery Testing Life Cycle Tester 60V 120A 0

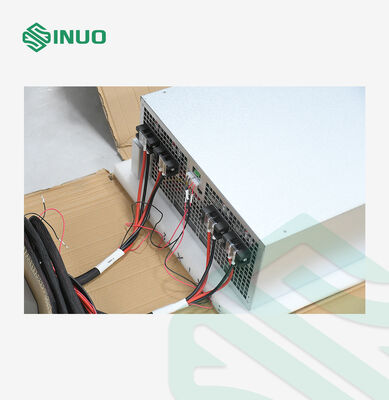

Battery Charge and Discharge Tester Lithium Battery Testing Life Cycle Tester 60V 120A 1
