EV Battery Rotation Testing System with 360° Multi-Axis Rotation, PLC Intelligent Control, and Mechanical Clamping for EV Safety Testing

Brand Name:	Sinuo
Model Number:	SN5515
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Rotation Speed:

1°/s ~12°/s

Rotation Angle:

0~360°

Testing Process:

Program Automatic Control

Sample Clamping:

Mechanical Clamping

Platform Material:

Aluminum

Platform Size:

2800mm*1700mm*30mm

Angle Rotation Accuracy:

≦0.5°

Rotation Angle Increment:

90°

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

360° Multi-Axis Rotation EV Battery Rotation Testing System

PLC Intelligent Control Battery Pack Rotate Test Device

Mechanical Clamping EV Safety Testing Equipment

Product Description

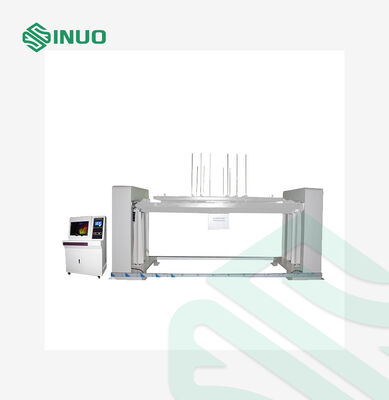

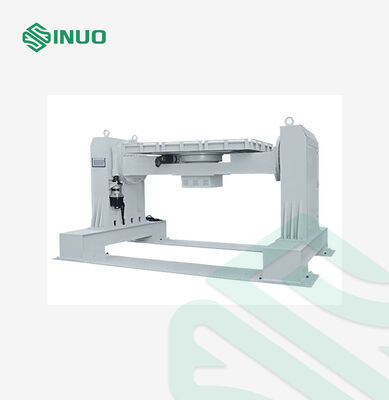

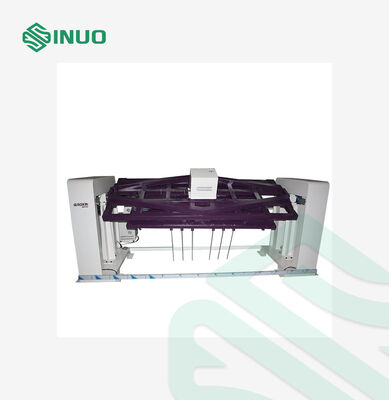

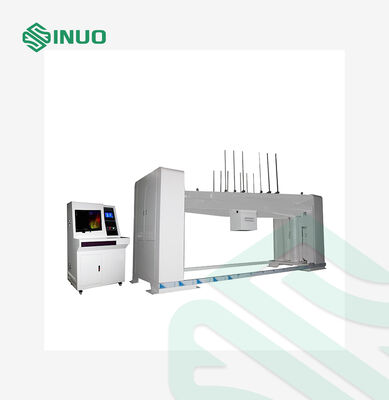

EV Battery Rotation Testing System

Specialized testing instrument for lithium-ion traction battery packs and systems in electric vehicles, simulating real-world conditions to evaluate performance and safety under extreme scenarios.

Key Features

360° Multi-Axis Rotation: Independently rotates battery packs around X, Y, and Z axes to simulate dynamic vehicle conditions
Intelligent Control System: PLC and touch screen operation with remote computer control capability
Robust Structure: Double reinforced column support with large aluminum platform supporting samples up to 2500mm * 1600mm and 2000kg loads
Safety Monitoring: Observes battery behavior to ensure no electrolyte leakage, case rupture, fire, or explosion
Laboratory Simulation: Ideal for battery pack design optimization and quality enhancement in R&D and production QA

Applications

Essential for lithium battery pack manufacturers, electric vehicle manufacturers, and scientific research laboratories for safety performance evaluation, R&D, and certification testing.

Operating Environment

Power Supply: AC380V±10%/50Hz, 15KW
Ambient Temperature: 5℃-35℃
Relative Humidity: ≤85%RH
Environment: Must be free from high concentration dust, corrosive gases, and flammable or explosive atmosphere

This testing system helps ensure EV batteries meet international safety standards including UL2580, GB/T31467.3-2015, and ISO12405-3.

Technical Specifications

Control System	PLC intelligent control with dual system operation via touch screen and remote computer
Drive System	Servo motor
Platform Specifications	2800mm length * 1700mm width * 30mm thickness (Aluminum) Supports samples up to 2500mm * 1600mm, height less than 1000mm
Rotation Capabilities	X/Y/Z axis automatic switching
Rotation Speed	1°/s to 12°/s, programmable via touch screen and computer
Rotation Angle	0° to 360°, programmable via touch screen and computer
Angle Increment	90°, programmable via touch screen and computer
Rotation Accuracy	≤0.5°
Sample Clamping	Mechanical clamping
Testing Process	Program automatic control
Safety Protection	Fault alarm with cause and processing prompts Fault display and self-diagnosis Motor overload alarm Electric leakage alarm Smoke alarm Power-off protection with automatic memory Integrated safety relay Integrated safety grating
Monitoring	2 sets of dedicated high-definition cameras for real-time monitoring and recording
Main Configuration	Computer: Industrial all-in-one machine with WIFI Touch screen: WEINVIEW PLC: Mitsubishi Motor: Huichuan (2 sets) Reducer: Jiacheng Mechanical part: Sinuo Software: Sinuo Note: Dedicated test room and battery loading mechanism to be provided by customer
