Water Ingress Testing Equipment for IPX3 IPX4 Oscillating Tube Waterproof Testing

Water Ingress Testing Equipment for IPX3 IPX4 Oscillating Tube Waterproof Testing

Brand Name:	Sinuo
Model Number:	SN444
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Raining Speed:

IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°);

Needle Hole:

Φ0.4mm

Pressure Gauge:

0~0.25MPa

Water Flow:

0.07 L/minX

Rotation Speed:

1r/min

Turntable Diameter:

Φ600mm

Electrical Control:

PLC & Touch Screen

Testing Time:

1-99999S Can Be Preset

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Φ0.4mm Needle Hole Water Ingress Testing Equipment

PLC & Touch Screen Control IPX3 IPX4 Test Equipment

Φ600mm Turntable Oscillating Tube Waterproof Tester

Product Description

IPX3 IPX4 Water Spray Test Oscillating Tube IP Waterproof Testing Machine

Compliance Standards

IPX3~4 oscillating tubes test system is designed and manufactured according to IEC60529:2013 standards.

Product Overview

This equipment is used for testing the IPX3/IPX4 waterproof level of electrical and electronic products, including automotive parts.

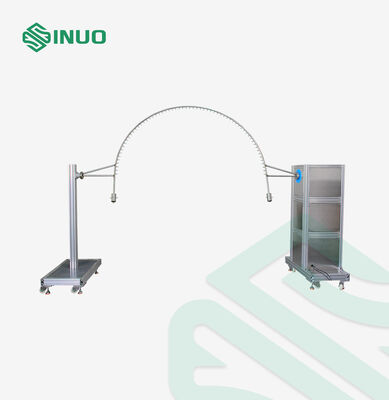

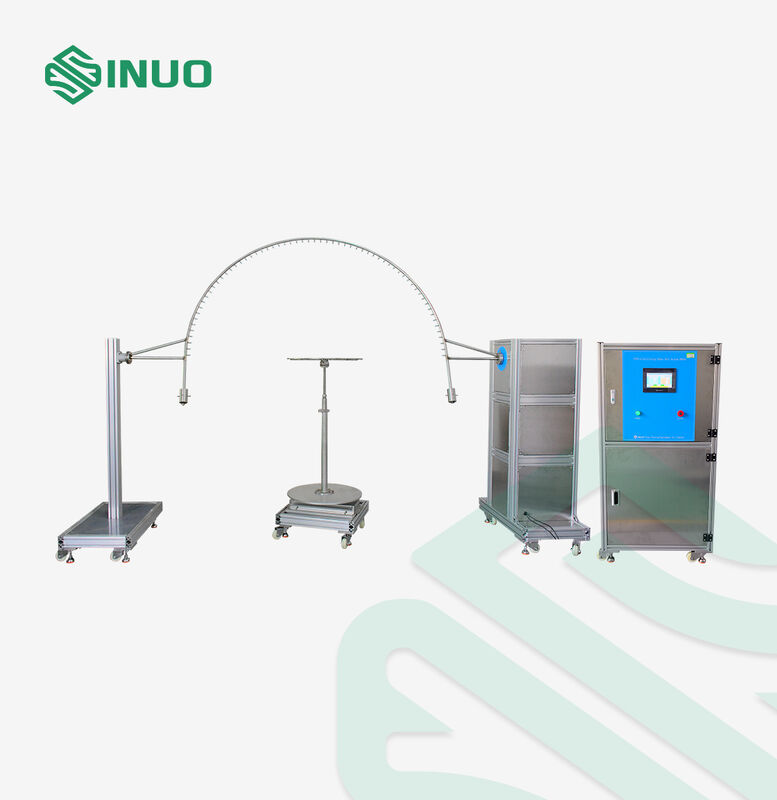

The complete IPX3~4 oscillating tubes test system includes:

Oscillating tubes swing device
Full set of oscillating tubes (R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm)
Turntable
Intelligent water supply and control cabinet

The intelligent water supply and control cabinet consists of a water supply tank, water pump, and control system. The test water supply flow is precisely controlled by PLC, frequency converter, and flow meter.

Technical Parameters

Parameter	Specification
Water Supply	Water flow rate >10L/min±5% clean water without inclusion. Equipped with clean water filtration unit
Oscillating Tube Sizes	R200mm, R400mm, R600mm, R800mm, R1000mm, R1200mm, R1400mm, R1600mm (stainless steel construction)

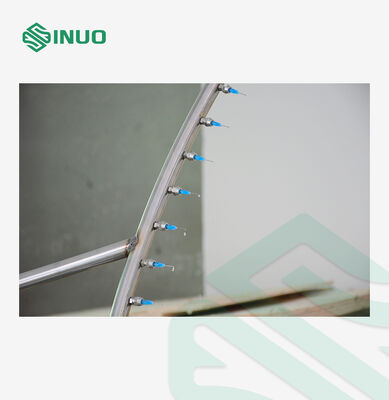

Needle Hole	Φ0.4mm
Included Angle of Two Holes	IPX3: 120°; IPX4: 180°

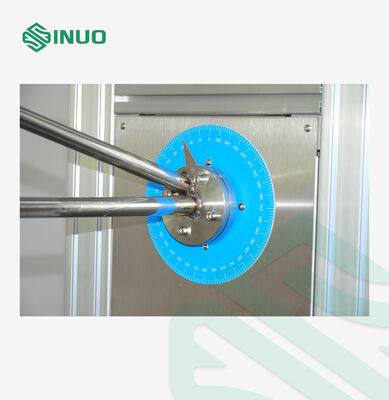

Oscillating Tube Swing Angle	Maximum ±175° can be preset (Standard requires IPX3: 120°; IPX4: 360°)
Raining Speed	IPX3: 4s/time (2×120°); IPX4: 12s/time (2×360°)
Water Flow	Can be set according to oscillating tube size and number of pin holes (0.07 L/min per hole)
