Electric Vehicle Charging Connector Withdrawal Test Equipment EV Plug Withdrawal Test Machine

Electric Vehicle Charging Connector Withdrawal Test Equipment EV Plug Withdrawal Test Machine

Brand Name:	Sinuo
Model Number:	SNQC1013
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Table:

Table 5

Applied Figures:

Fig13, Fig14

Applied Standard:

IEC 62196-1

Applied Clauses:

Clause 14.1.5, 14.1.6

Weight Configuration:

165-750N

Operation Method:

Manual Operation

Test Station:

Single Station

Test Plugs:

Customized

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Highlight:

Manual Operation EV Connector Testing Equipment

165-750N Weight Configuration Electric Vehicle Charging Connector Tester

Single Station Test IEC 62196-1 Test Apparatus

Product Description

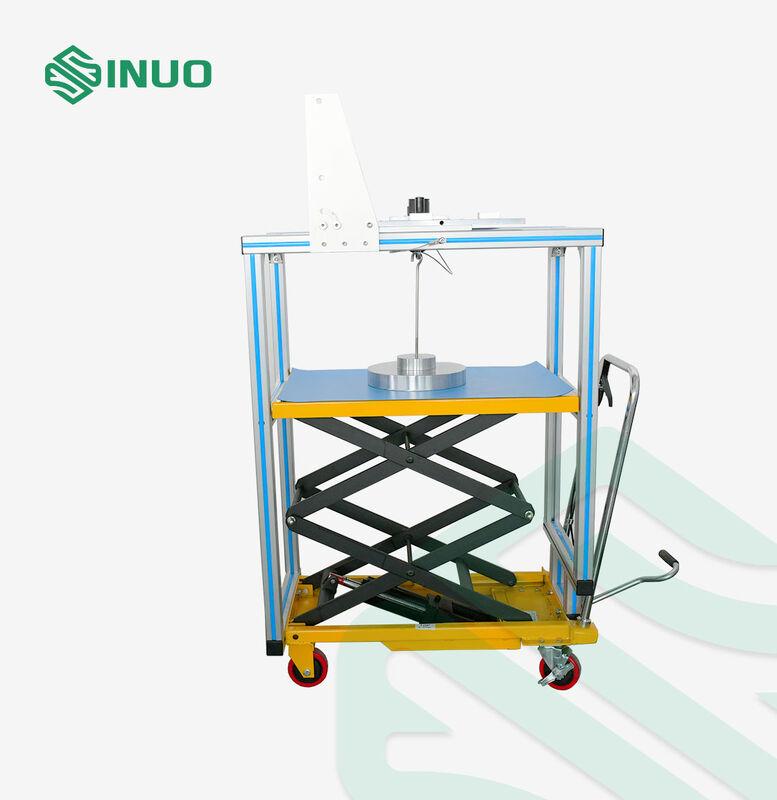

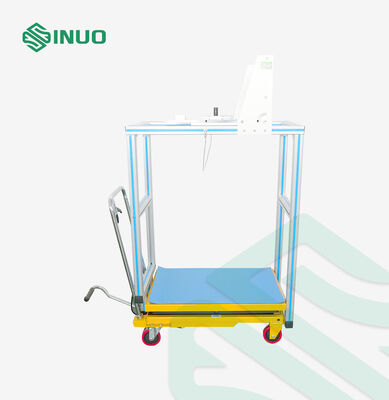

Electric Vehicle Charging Connector Withdrawal Test Equipment IEC 62196-1

This specialized test equipment measures the withdrawal force required when disconnecting test plugs from electric vehicle charging sockets and latching devices, ensuring compliance with international safety standards.

Compliance Standards

Conforms to IEC 62196-1:2022 clause 14.1.5, 14.1.6, fig13, fig14

Equipment Overview

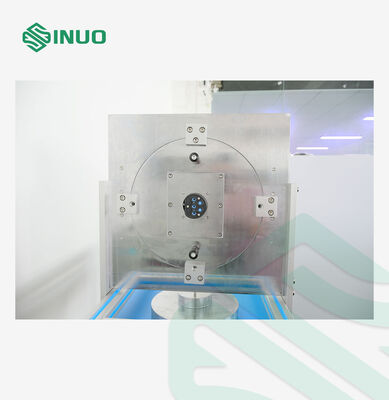

Designed to verify the withdrawal force when test plugs are removed from socket-outlets and latching mechanisms, ensuring proper connector performance and safety.

Technical Specifications

Test plugs feature finely ground contacts of hardened steel with surface roughness not exceeding 0.8 µm over their active length. Contacts are spaced at nominal distances with ±0.05 mm tolerance.

Plug contact dimensions or distances between contact surfaces for other plug types comply with minimum dimensions specified in relevant standard sheets, with +0.010mm tolerance.

Note: Test plugs are not included with this apparatus. Please use test plugs ordered separately as listed below:

No	Standard	Figure No.	Name	QTY
1	IEC62196-2/Ed.3/CDV (C) IEC(E)	STANDARD SHEET 2-I sheet 1	Test-plug:32A,250 V AC VEHICLE INLET	1
2	IEC62196-2/Ed.3/CDV (C) IEC(E)	STANDARD SHEET 2-Ilb sheet 1	Test-plug:63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE	1
3	IEC62196-2/Ed.3/CDV (C) IEC(E)	STANDARD SHEET 2-Ild sheet 1	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE	1
4	IEC62196-2/Ed.3/CDV (C) IEC(E)	STANDARD SHEET 2-Ilf sheet 1	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE OR 70 A, 250 V SINGLE PHASE	1
5	IEC62196-2/Ed.3/CDV (C) IEC(E)	STANDARD SHEET 2-Illa sheet 1	Test-Plug: 16 A, 250 V SINGLE-PHASE PLUG WITH 1 PILOT CONTACT	1
6	IEC62196-2/Ed.3/CDV (C) IEC(E)	STANDARD SHEET 2-Illa sheet 3	Test-VEHICLE INLET : 16A, 250V SINGLE-PHASE VEHICLE INLET WITH 1 PILOT CONTACT
7	IEC62196-2/Ed.3/CDV (C) IEC(E)	STANDARD SHEET 2-Illb sheet 1	Test-Plug : 32 A, 250 V SINGLE-PHASE PLUG WITH 2 PILOT CONTACTS	1
8	IEC62196-2/Ed.3/CDV (C) IEC(E)	STANDARD SHEET 2-Illb sheet 3	Test-VEHICLE INLET : 32A, 250V SINGLE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS
9	IEC62196-2/Ed.3/CDV (C) IEC(E)	STANDARD SHEET 2-Illc sheet 1	Test-Plug : 63 A, 480 V THREE-PHASE PLUG WITH 2 PILOT CONTACTS	1
10	IEC62196-2/Ed.3/CDV (C) IEC(E)	STANDARD SHEET 2-Illc sheet 3	Test-VEHICLE INLET: 63 A, 480 V THREE-PHASE VEHICLE INLET WITH 2 PILOT CONTACTS
11	IEC62196-3/Ed.2/CDV (C) IEC(E)	STANDARD SHEET 3-Ib Sheet 1	Test VEHICLE CONNECTOR	1
12	IEC62196-3/Ed.2/CDV (C) IEC(E)	STANDARD SHEETS CONFIGURATION BB VEHICLE COUPLER 250 A 900 V DC STANDARD SHEET 3-Iia Sheet 1	Test VEHICLE CONNECTOR	1
13	IEC62196-3/Ed.2/CDV (C) IEC(E)	STANDARD SHEET 3-IIIa Sheet 2	Test VEHICLE INLET	1
14	IEC62196-3/Ed.2/CDV (C) IEC(E)	STANDARD SHEET 3-Iva VEHICLE INLETMODES 2, 3 AND 4 Sheet 2	Test VEHICLE INLET	1
15	IEC62196-3/Ed.2/CDV (C) IEC(E)	STANDARD SHEET 3-Ivb VEHICLE INLET ALL MODES Sheet 1	Test VEHICLE INLET	1

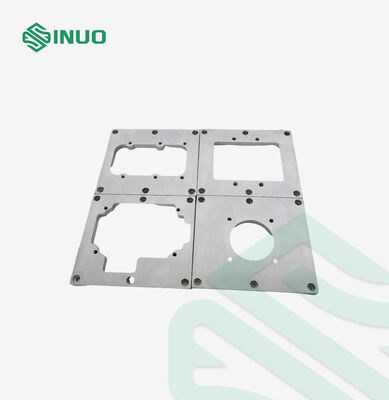

Product Images
