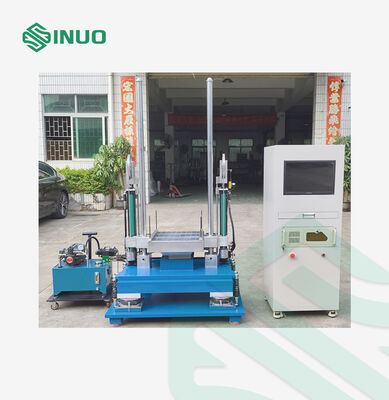

Hydraulic Lift Impact Shock Testing Machine with 15—350 G Half-sine Peak Acceleration for EV Test System

Hydraulic Lift Impact Shock Testing Machine with 15—350 G Half-sine Peak Acceleration for EV Test System

Brand Name:	Sinuo
Model Number:	SN558-HSKT300
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Maximum Load:

300kg

Work Platform:

800 × 800 Mm

Half-sine Pulse Duration:

2.5—30ms

Half-sine Peak Acceleration:

15—350 G

Sampling Frequency:

192KHz

Lifting Method:

Hydraulic Lift

Total Equipment:

2000 Kg

Device Size:

1600× 1300× 2250mm

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

Hydraulic Lift Shock Test Bench

800 × 800 mm Work Platform EV Test System

15—350 G Half-sine Peak Acceleration Impact Shock Testing Machine

Product Description

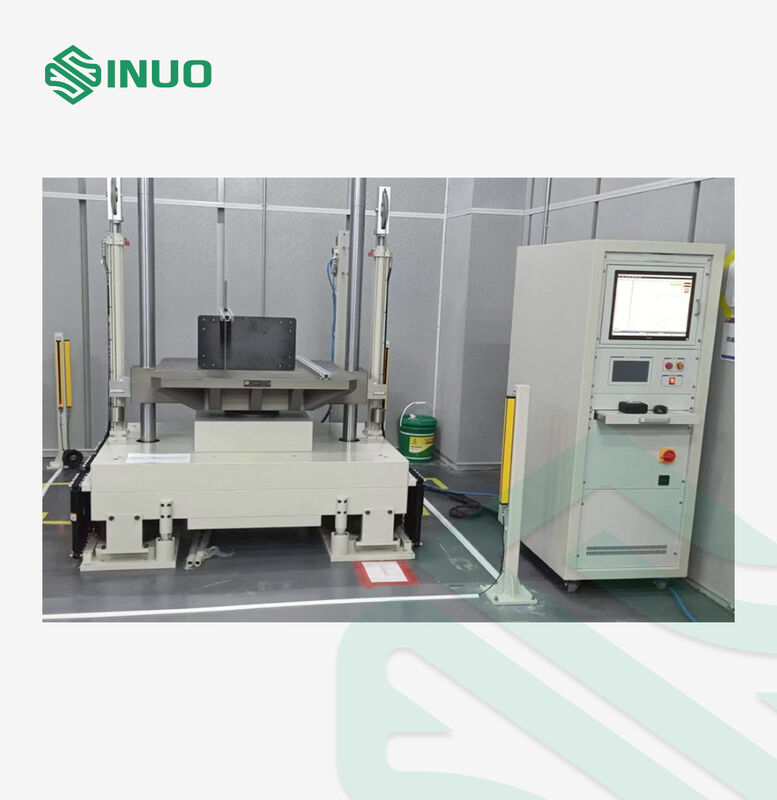

Impact Shock Testing Machine Hydraulic Lift Shock Test Bench

Advanced automotive EV test system designed for comprehensive shock testing applications across multiple industries.

Compliance Standards

Conforms to MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, and MIL-STD-883E standards.

Product Overview

This device is engineered for shock testing applications in electronics, aerospace, shipbuilding, military, automotive, and transportation sectors. By selecting different waveform generators, it can perform shock tests using half-sine, post-peak sawtooth, or square waves.

Installation and Environmental Requirements

Ambient Temperature: 5℃ ~ +28℃ (average temperature within 24 hours ≤ 28℃)
Relative Humidity: ≤ 85% RH

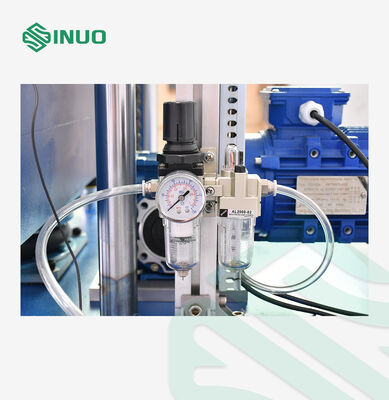

Air Supply: 0.5 - 0.8 MPa
Power Supply: Three-phase, five-wire system
Voltage Input: AC 380V
Frequency Fluctuation Range: (50 ± 0.5) Hz
Grounding Resistance: PGND cable resistance < 4 Ω
Installation Requirement: User shall provide an air or power switch of appropriate capacity dedicated exclusively to this equipment

Technical Parameters

Working platform	800 * 800 mm
Working platform Material	High-strength imported high-quality aluminum alloy
Maximum load	300kg
Half-sine peak acceleration	15--350 G
Half-sine pulse duration	2.5--30ms
Lifting method	Hydraulic lift
Equipment size	1600* 1300* 2250mm
Equipment weight	2000 kg

Measuring System

Input channel	2 channels
Sampling frequency	192KHz
Input form	Voltage, Electric Charge
Voltage range	-10v--+10v
Coupling method	AC, DC, ICP
Shock waveform	Half Sine
Communication interface	USB2.0
Support standard	National standard, national military standard, U.S. military standard, user-defined standard
Operating system	Microsoft Windows7/10
