Needle Flame Test Chamber Flammability Testing Equipment 1000℃ IEC 60695-11-5

Needle Flame Test Chamber Flammability Testing Equipment 1000℃ IEC 60695-11-5

Brand Name:	Sinuo
Model Number:	SN772
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Gas Category:

95% Butagas ( Can Use The Bottled Lighter Gas)

Combustion Angle:

Tilt 45°( Testing ) Or Vertical ( When Adjust The Height Of The Flame)

Flame Warming Requirement:

100°to 700°

Temperature Test Range:

0~1000℃

Volume Size Adjustment:

Flowmeter Adjustment

Height Of The Flame:

12±1mm Adjustable

Equipment Weight:

120KGS

Equipment Size:

1100mm* 550mm* 1100mm

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Highlight:

12±1mm adjustable flame height Needle Flame Test Chamber

0~1000℃ temperature test range Flammability Testing Equipment

PLC control with 7 inch touch screen IEC 60695-11-5 Test Equipment

Product Description

Needle Flame Test Chamber - Flammability Testing Equipment

This IEC 60695-11-5 compliant needle flame test chamber meets IEC 60598-1 requirements for comprehensive safety testing of electrical equipment and components.

Compliance Standards

This tester conforms to IEC 60695-11-5 standard requirements, as specified in:

IEC 60598-1 clause 4.15.1
IEC 60335-1 clause 30.2.3.2
Annex E, clause 13.3

Equipment Overview

The Needle Flame Tester features a Ф0.9mm needle-shaped burner that operates at a 45° angle using butane gas. It assesses fire hazards by evaluating specimen ignition, combustion time, and flame spread during fault conditions.

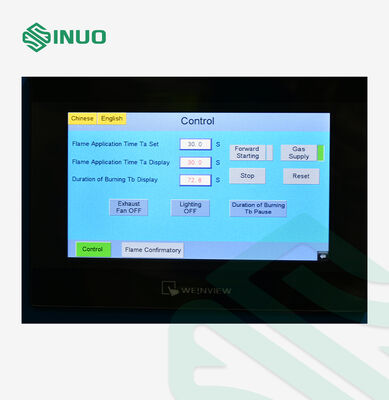

With advanced PLC control and a 7-inch color touch screen interface, this equipment is ideal for research, production, and quality testing departments across multiple industries including:

Lighting equipment and low-voltage apparatus
Household appliances and machine tool electrical components
Electrical machines, tools, and instruments
Electronic instruments and electrical connectors
Insulating materials and engineering plastics
Solid combustible materials industry

Technical Specifications

Parameter / Model	SN773
Working Voltage	AC 230V/60Hz
Control System	PLC
Display	7 inch color touch screen
Timing Device	9999X0.1S
Combustor	Inner bore φ0.5mm ± 0.1mm, OD ≤ φ0.9mm, L ≥ 35mm, stainless steel
Combustion Angle	Tilt 45° (testing) or vertical (flame height adjustment)
Flame Height	12±1mm adjustable (with flame height gauge)
Gas Category	95% butagas (can use bottled lighter gas)
Temperature Test Range	0~1000℃
Flame Warming Requirement	From 100° to 700°, time for standard values within 23.5S±1S
Temperature Thermocouple	φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple
Work Shop	0.5 cube, stainless steel case, black yogon background
Testing Process	Test procedure automatic control, independent air draft
Volume Size Adjustment	Flowmeter adjustment
Equipment Size & Weight	1100mm * 550mm * 1100mm, 120KGS

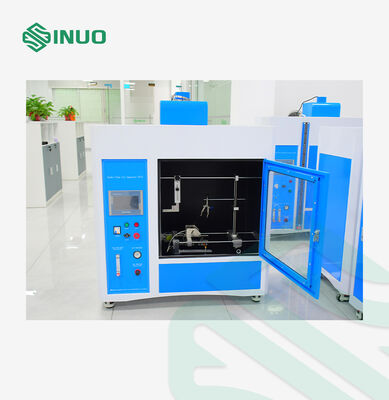

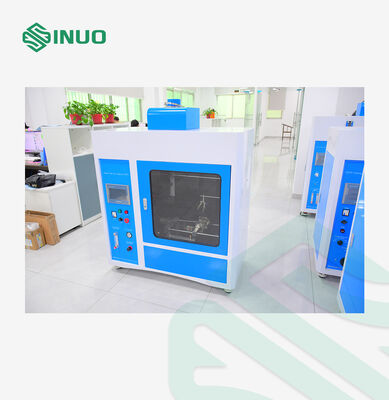

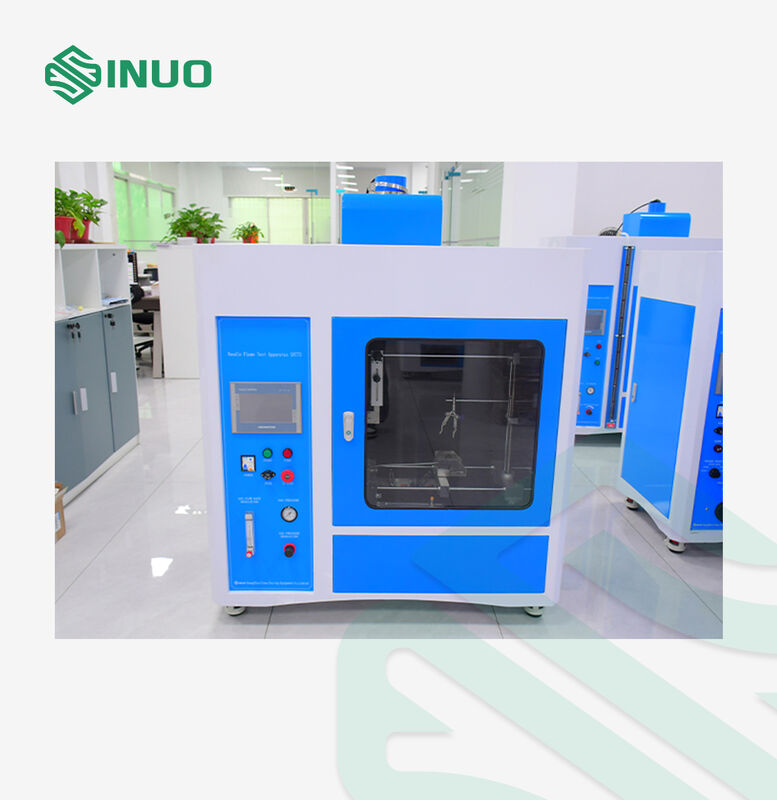

Product Images
