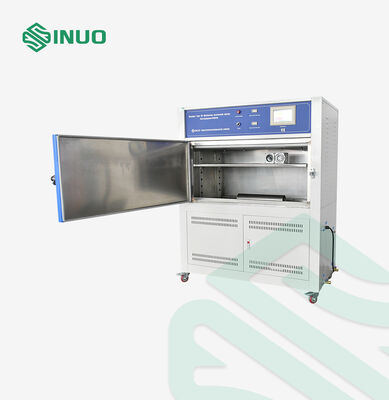

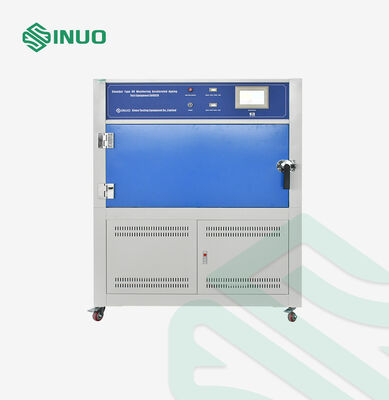

Accelerated Weathering Test System Automotive Material Testing Equipment UV Aging Chamber

Accelerated Weathering Test System Automotive Material Testing Equipment UV Aging Chamber

Brand Name:	Sinuo
Model Number:	SN882B
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Maximum Current:

15A

Maximum Power:

3 KW

Lamp Power:

40W

Sample Placement Area:

WDH=1140*600*500（mm)

Lamp Lifespan:

More Than 1600h

Lamp Length:

1220mm

Sample Size:

WDH=1100*600*500(mm)

Shape Space:

WDH=1400*1750*750(mm)

Packaging Details:

Plywood case

Supply Ability:

20 sets/month

Highlight:

ISO4892-3 Compliant UV Aging Chamber

40W Lamp Power Environmental Test Chamber

1600h Lamp Lifespan UV Weathering Test Chamber

Product Description

ISO4892-3 Chamber Type UV Aging Chamber Environmental Test Chamber

Compliant Standards & Certifications

Conforms to ISO 11507, ISO4892-3, ASTM G154, ASTM G153, ASTM4329, IEC 61215, and other international standards.

Equipment Overview

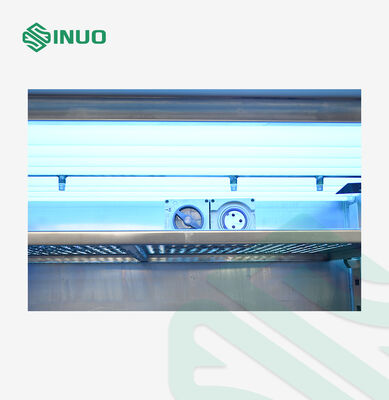

This UV aging chamber utilizes fluorescent ultraviolet lamps that accurately simulate the UV spectrum of sunlight. Combined with precise temperature control and humidity supply systems, it replicates environmental factors including UV radiation, high temperature, high humidity, condensation, and dark cycles. These conditions test material resistance to discoloration, loss of brightness, strength degradation, cracking, peeling, powdering, and oxidation. The synergistic effect between ultraviolet light and humidity accelerates material degradation, making it ideal for comprehensive weather resistance evaluation.

Technical Specifications

Parameter	Specification
Model	SN882B
Sample Size	WDH=1100600500mm (Inner chamber dimensions)
Sample Placement Area	WDH=1140600500mm (Chamber type)
External Dimensions	Approximately 14001750750mm (WHD)
Lamp Center Distance	70mm
Sample to Lamp Distance	50±3mm
Nozzle Quantity	4 pieces (top row)
Spray Pressure	70-200Kpa (adjustable)
UV-B Lamp Irradiation	0-0.9 W/m² at 313nm (adjustable)
UV-A Lamp Irradiation	0-0.9 W/m² at 340nm (adjustable)
Lamp Length	1220mm
Lamp Power	40W
Lamp Lifespan	More than 1600 hours
Number of Lamps	8 pieces (top row), UV-A/UV-B selectable (default: UV-A)
Weight	80kg
Maximum Power	3KW
Maximum Current	15A
Power Requirements	AC 220V single-phase, ±10% voltage fluctuation, 50/60Hz frequency, TN-S or TT power supply, protective grounding resistance less than 4Ω

UV Lamp Irradiation Distribution

UV-B Lamp irradiation distribution - Standard machine irradiation intensity 0-0.9 W/m² at 313nm, adjustable

UV-A Lamp irradiation distribution - Standard machine irradiation intensity 0-0.9 W/m² at 340nm, adjustable
