EV Connector Testing Equipment with 64 Parameter Channels for Airtightness Testing and Automatic Evaluation

EV Connector Testing Equipment with 64 Parameter Channels for Airtightness Testing and Automatic Evaluation

Brand Name:	Sinuo
Model Number:	SNQC1017A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Measurement Range:

0 To ±2000 Pa

Pressure Resistance:

1 MPa

Operating Temperature:

–5°C To 40°C

Storage Temperature:

–20°C To 70°C

Parameter Channels:

64 Channels (1–64)

Test Cycle Setting:

0–999s

Humidity:

< 80% RH, Non-condensing

Weight:

Approx. 40 Kg

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

64 Parameter Channels EV Connector Testing Equipment

Airtightness Testing EV Charging Connector Tester

Automatic Evaluation Airtightness Tester

Product Description

EV Connector Testing Equipment for Airtightness Testing and Automatic Evaluation

This high-precision EV Connector Testing Equipment provides comprehensive airtightness testing and automatic evaluation for electric vehicle charging components. Designed specifically for EV charging gun components and water pipes, it performs rigorous pressure-drop tests based on IPX7 standards to ensure product reliability and identify defective materials before assembly.

The system delivers stable pressure output, micro-leakage monitoring, automatic evaluation, and comprehensive data recording capabilities. It is ideally suited for EV charger manufacturers, charging gun assembly lines, and laboratory verification departments requiring precise quality control.

Technical Specifications

Technical Item	Specification
Display Resolution	0-4 decimal places adjustable
Measurement Range	0 to ±2000 Pa
Pressure Resistance	1 MPa
Accuracy	±0.1% FS
Overpressure Resistance	3* full-scale pressure
Test Pressure Units	kPa, kg/cm², PSI, mbar, bar, Torr, mmH₂O, mmHg
Leakage Units	Pa, Pa/s, mL/s, mL/min, L/min, Pa*m³/s
Parameter Channels	64 channels (1-64)
Test Cycle Setting	0-999 seconds
CPU	32-bit processor
Power Supply	AC 220V ±10%, 50 Hz
Required Air Source	Clean, dry air ≥ 600 kPa
Operating Temperature	-5°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	< 80% RH, non-condensing

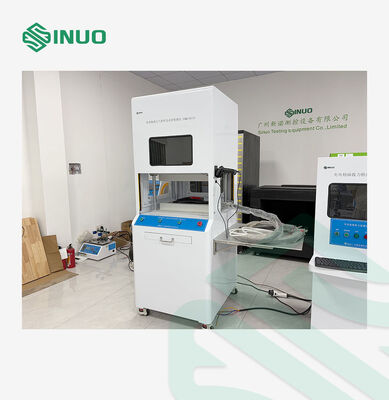

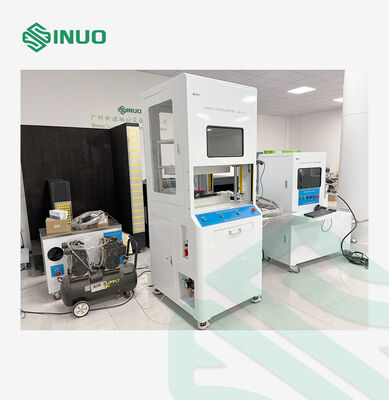

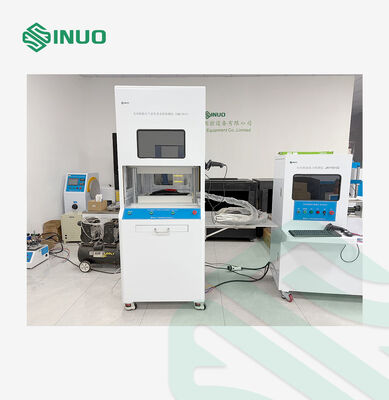

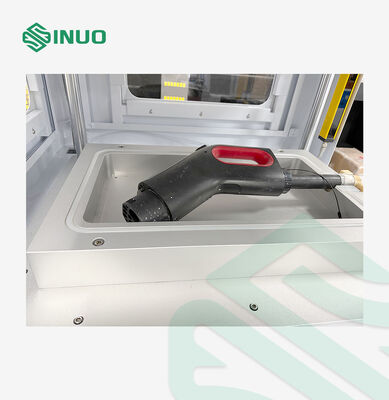

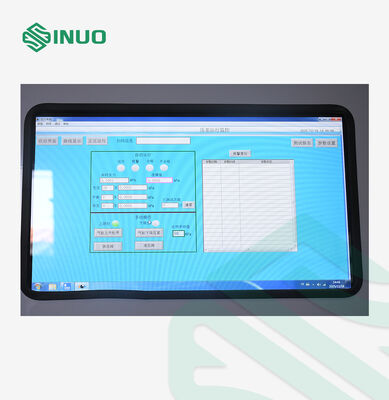

Product Images
