EVSE Waterproof Performance Test Equipment IPX4 Waterproof Test System

EVSE Waterproof Performance Test Equipment IPX4 Waterproof Test System

Brand Name:	Sinuo
Model Number:	SN448-3A
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Outer Diameter:

Ф102 Mm

Spherical Cap Diameter:

SФ75.5 Mm

Inner Two Rings:

24 Holes, 30° Spacing

Outer Four Rings:

96 Holes, 15° Spacing

Total Holes:

121

Hole Diameter:

Ф0.5 Mm

Flow Rate:

10 L/min ±5%

Pressure Gauge:

0–1 MPa

Packaging Details:

Plywood case

Supply Ability:

20 sets/month

Highlight:

IEC 60529 Compliant Waterproof Test Chamber

PLC-Based Control IPX4 Test Equipment

Adjustable Spray Angles EVSE Waterproof Tester

Product Description

EVSE Waterproof Performance Test Equipment IPX4 Waterproof Test System

This fully automatic waterproof test system is designed for evaluating the ingress protection of EV charging stations according to IEC 60529 IPX4 standards. The equipment features PLC-based intelligent control with touchscreen operation for complete automation of the spray testing process.

Compliant Standards & Certifications

IEC60529:2013 Degrees of Protection Provided by Enclosure (IP Code) – IPX4

Equipment Overview

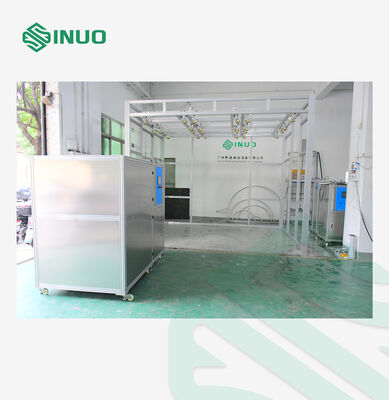

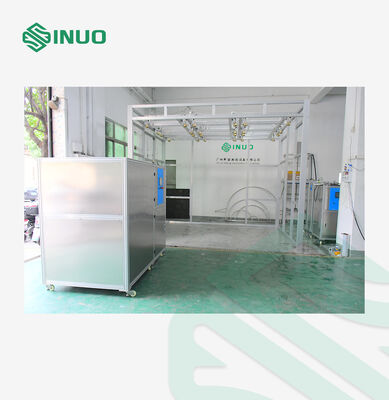

The system utilizes multiple standard nozzles (IEC60529 Fig. 5) arranged in a matrix layout with adjustable spray angles, enabling comprehensive waterproof testing on the top surfaces of charging stations of various specifications. This makes it an ideal solution for third-party testing organizations and factory laboratories.

Technical Specifications

Item	Parameters
Power Supply	AC380V 50Hz, 15 kW, with leakage protection air switch
Sample Size	Standard: 9009002400 mm
Test Standard	IEC60529-2013, IPX4 rain test
Nozzle Parameters	Outer diameter: Ф102 mm Spherical cap diameter: SФ75.5 mm Center hole: 1 Inner two rings: 24 holes, 30° spacing Outer four rings: 96 holes, 15° spacing Total holes: 121 Hole diameter: Ф0.5 mm Material: Brass

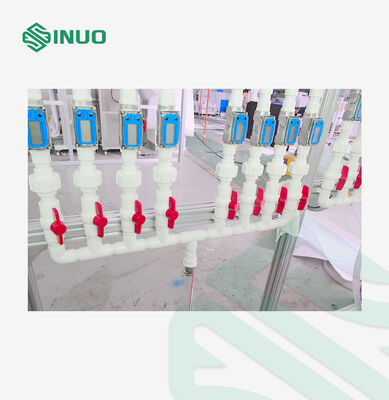

Flow Rate	10 L/min ±5% per nozzle, monitored by flowmeter, total flow rate settable via touchscreen
Rainfall Distance	Minimum distance from nozzle to sample: 0.3–0.5 m (per standard)
Spray Direction	Nozzle angle manually adjustable to match sample surface

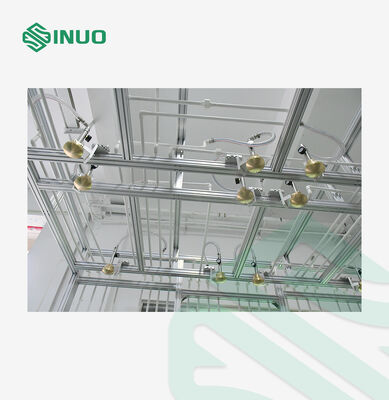

Nozzle Mounting	Nozzles arranged on top of chamber, tilted 45° downward (adjustable), 6 rows * 4 columns
Pressure Gauge	0–1 MPa, displayable
Test Duration	0.01 s – 99.9 min, programmable
Water Supply System	Spraying water supplied from tank via branded pump with water circulation system (constructed by user)
Control System	Mitsubishi PLC, touchscreen interface, flowmeter display with manual and automatic operation modes
Leakage Recording	Manual inspection
Sample Handling	Sample loaded/unloaded via forklift
Safety Protection	Phase sequence protection, leakage protection, short circuit protection, abnormal operation protection

Product Details
