High Current Arc Ignition Testing Equipment for Electrical Insulation Materials

Brand Name:	Sinuo
Model Number:	SN779
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Arc Ignition Rate:

40 Times Per Minute.

Electrode Separation Speed:

254±25㎜/S

Arc Strike Times:

0-9999 Can Be Preset

Electrode Angle:

45°

Fixed Electrode:

Ф3.5mm (Ф3.2) × 152mm

Movable Electrode:

Ф3.5mm (Ф3.2)

Dimension:

WDH=800×700×1600mm

Weight:

300kg

Packaging Details:

Plywood Case

Supply Ability:

30 sets/month

Highlight:

33A Arc Ignition Current High Current Arc Ignition Testing Equipment

254mm/s Electrode Separation Speed Electrical Insulation Testing Equipment

40 Times per Minute Arc Ignition Rate Flammability Testing Equipment

Product Description

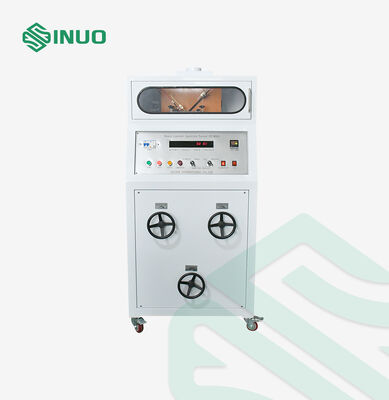

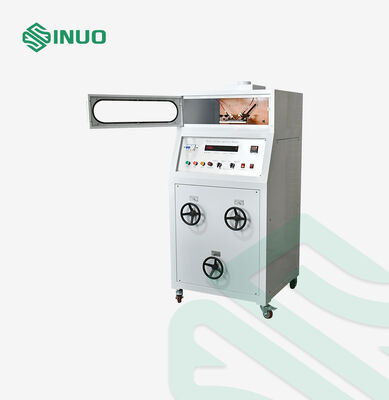

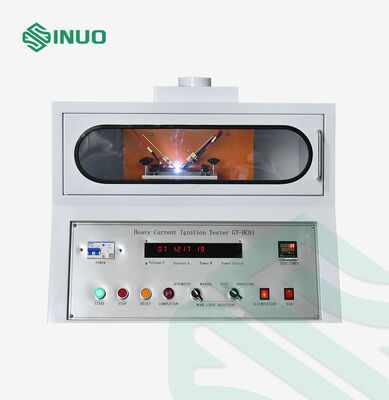

High Current Arc Ignition Testing Equipment for Electrical Insulation Materials

UL 746A High Current Arc Ignition Combustion Testing Equipment

Compliance Standards

UL 746A "Polymeric Materials - Short Term Property Evaluations" clause 33
UL 746C "Polymeric Materials - Use in Electrical Equipment Evaluations" clause 49
UL 498 "Attachment Plugs and Receptacles" clause 114
IEC 60950-1 "Information technology equipment - Safety - Part 1: General requirements"

Equipment Overview

Samples and Restrictions: Information technology equipment, low-voltage switchgear and control equipment parts

Application: Suitable for arcing resistance testing of electrical and electronic products, household appliances and their materials. Simulates possible leakage that may occur on insulators between live parts of different polarities or between live parts and grounded metal parts. Used to measure and evaluate the arcing resistance of insulators under specified voltage conditions.

Test Principle: The high current arc ignition test apparatus adopts double electrodes. Under specific current (33A) and power factor (COSφ0.5) conditions, according to a defined arc ignition speed (254mm/s) and repetition frequency (40 times/min), the arc is repeated 200 times on the sample surface. The high-current arc ignition resistance (HAI) of the sample is evaluated based on whether the sample ignites. Smaller level numbers indicate materials that are harder to ignite.

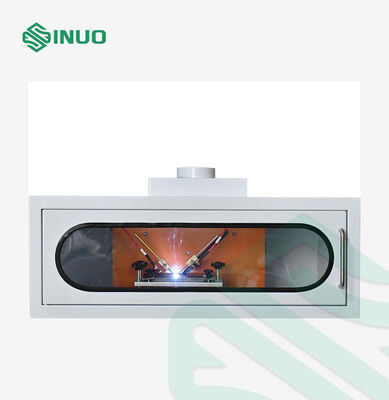

Structure: The chamber structure includes a protective cover for operator safety.

Technical Specifications

Parameter	Specification
Control & Operation Method	Electrical control, button operation
Arc Ignition Current, Power Factor	When power factor is 0.5, current is 33A±0.5A
Arc Ignition Rate	40 times per minute
Electrode Separation Speed	254±25㎜/S
Arc Strike Times	0-9999 can be preset
Electrode Material	Fixed electrode: copper, diameter Ф3.5mm (Ф3.2) * 152mm, top 30° chisel-shaped chisel Movable electrode: stainless steel, diameter Ф3.5mm (Ф3.2) *152mm, end cone angle 60°
Electrode Angle	At 45° to the level, radius of curvature of electrode head is 0.1mm
During Test	Automatic control of test program, independent ventilation
Lighting	Equipped with light, with control
External Dimension	WDH=8007001600mm, 300kg
