Environmental Test Chamber UV Aging Chamber Complies with ASTM G154 and IEC 61215

Environmental Test Chamber UV Aging Chamber Complies with ASTM G154 and IEC 61215

Brand Name:	Sinuo
Model Number:	SN882B
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Maximum Current:

15A

Maximum Power:

3 KW

Lamp Power:

40W

Sample Placement Area:

WDH=1140*600*500（mm)

Lamp Lifespan:

More Than 1600h

Lamp Length:

1220mm

Shape Space:

WDH=1400*1750*750(mm)

Sample Size:

WDH=1100*600*500(mm)

Packaging Details:

Plywood case

Supply Ability:

20 sets/month

Highlight:

40W Lamp Power Environmental Test Chamber

1600h Lamp Lifespan UV Aging Chamber

ASTM G154 Weathering Test Chamber

Product Description

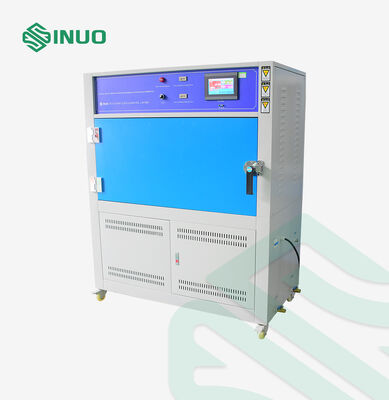

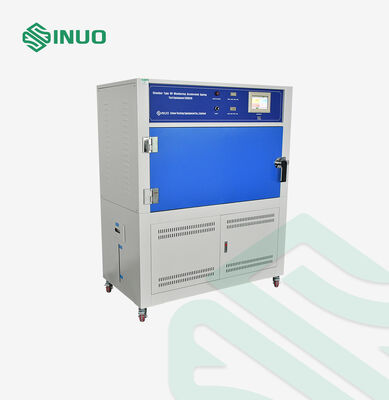

Environmental Test Chamber for UV Aging and Environmental Stress Simulation

This ISO4892-3 compliant UV Aging Chamber uses fluorescent ultraviolet lamps to simulate sunlight's UV spectrum, combined with temperature control and humidity systems to replicate environmental factors that cause material degradation including discoloration, strength reduction, cracking, peeling, and oxidation.

Compliance Standards

ISO 11507
ISO4892-3
ASTM G154
ASTM G153
ASTM4329
IEC 61215

Equipment Overview

The chamber simulates damage from sunlight (UV band), high temperature, high humidity, condensation, and dark cycles. Through the synergistic effect between ultraviolet light and humidity, it evaluates material weather resistance by testing both light and moisture resistance simultaneously.

Technical Specifications

Parameter	Specification
Model	SN882B
Sample Size	WDH=1100600500(mm) Inner size sample
Sample Placement Area	Chamber type WDH=1140600500(mm)
Shape Space	Approximately 14001750750(mm) WHD
Center Distance Between Lamps	70mm
Sample Test Surface to Lamp Center	50±3 mm
Nozzle Quantity	Top row 4 pcs
Spraying Pressure	70～200Kpa adjustable
UV-B Lamp Irradiation	0～0.9 W/m² at 313nm, adjustable
UV-A Lamp Irradiation	0～0.9 W/m² at 340nm, adjustable
Lamp Length	1220mm
Lamp Power	40W
Lamp Lifespan	More than 1600 hours
Number of Lamps	8 pcs lamps in top row (UV-A/UV-B selectable, defaults to UV-A)
Weight	80 kg
Maximum Power	3 KW
Maximum Current	15A
Power Supply Requirements	AC 220V single-phase, ±10% voltage fluctuation, 50/60Hz frequency, TN-S or TT power supply, protective grounding resistance less than 4Ω

Irradiation Distribution Diagrams
