IEC 60529 SUS304 Stainless Steel IPX8 Immersion Test Tank with 4.0 Bar Pressure and PLC Control

IEC 60529 SUS304 Stainless Steel IPX8 Immersion Test Tank with 4.0 Bar Pressure and PLC Control

Brand Name:	Sinuo
Model Number:	SN4411
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Chamber Internal Diameter:

350mm Diameter

Chamber Internal Height:

>400mm

Maximum Pressing Force:

4.0 Bar

IP Code Test Range:

IPX8 Test

Tank Material:

SUS304 Stainless Steel

Sample Size:

W170mm*D90mm*H30mm

Drive:

External Air Compressor Drive

Control:

PLC Control

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

SUS304 Stainless Steel Immersion Test Tank

4.0 Bar Pressure IPX8 Test Chamber

PLC Control Waterproof Submersion Testing Machine

Product Description

IEC 60529 High Pressure Immersion Test Tank IPX8 Waterproof Submersion Testing Machine

This professional testing equipment is designed for evaluating the waterproof capabilities of electrical and electronic products that may be subjected to immersion in water during transportation or use. The system immerses test specimens at specified depths and pressures, then examines water ingress and performance changes.

Compliance Standards

Conforms to IEC 60529:2013 IPX8 and related standards

Technical Specifications

Inner Tank Diameter	350mm
Internal Tank Height	590mm
External Dimensions	Approximately 360mm outer diameter * 900mm height
Stainless Steel Thickness	5mm
Time Control	1～99999 seconds
Pressure Management	Manual adjustment
Pressure Display	Touchscreen display for pressure setting and monitoring
Pressure Adjustment Range	Atmospheric pressure to 500 kPa (1-50m water depth)
Maximum Limit Pressure	Factory configurable with pressure switch protection (typically 550 kPa auto-vent)
Pressure Protection	Spring-loaded safety relief valve; Program control with automatic shutdown and pressure release
Pressure Release Method	Automatic pressure release after test completion
Lid Operation	Manual opening and closing
Pressurization System	External air supply (user provided, ≥ 5 kg)
Control System	Touch screen control
Container Material	304 stainless steel
Drain Pipe Diameter	1/2 inch pipe
Power Requirements	AC 220-240V, 50Hz±10%; Power: 1KW; Separate 16A circuit breaker required
Environmental Conditions	Temperature: 15℃ to 35℃; Relative humidity: 25% RH to 75% RH; Atmospheric pressure: 86 kPa to 106 kPa

Pressure Conversion Reference

0.1 MPa	= 1 Kg/cm² = 10M water depth
0.2 MPa	= 2 Kg/cm² = 20M water depth
0.3 MPa	= 3 Kg/cm² = 30M water depth
0.4 MPa	= 4 Kg/cm² = 40M water depth

Key Features

Pressure protection and explosion-proof device
Drainage and pressure relief system
Alarm sound notification for safety
Robust 304 stainless steel construction
Intuitive touchscreen control interface

Installation Note: Plan equipment placement carefully. Install circuit breaker nearby and drain pipe below the circuit breaker. Power cord must be ≥2.5㎡ with terminal blocks.

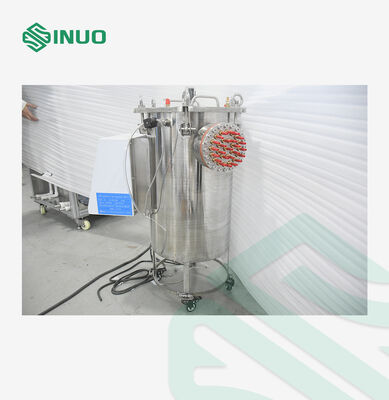

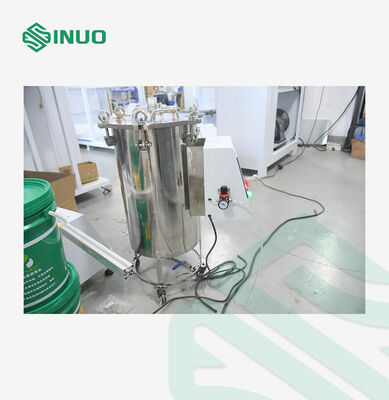

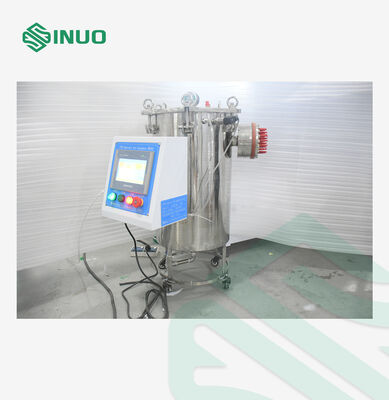

Product Images
