Programmable Xenon Arc Weathering Test Chamber for Accelerated Sunlight Aging and Climate Simulation

Brand Name:	Sinuo
Model Number:	SN884B
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Test Chamber Size (D×W×H):

490 × 790 × 400 Mm

Overall Dimensions (D×W×H):

1130 × 1020 × 1800 Mm

Lamp Type:

Air-cooled Xenon Arc Lamp

Lamp Lifetime:

≥ 1200 Hours

Humidity Range:

Light Cycle 20–75% RH; Dark Cycle 45–95% RH

Humidity Deviation:

±5% RH

Irradiation Area:

3240 Cm²

Sample Inclination:

10°

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

Xenon Arc Weathering Test Chamber for Accelerated Light Aging and Sunlight Simulation Testing

Compliance Standards

The equipment complies with the following standards:
GB/T 16422.2-2014 — Plastics — Exposure to laboratory light sources
ISO 4892-2 — Plastics — Methods of exposure to laboratory light sources — Part 2: Xenon-arc lamps
ISO 11341 — Paints and varnishes — Artificial weathering and exposure to artificial radiation — Filtered xenon-arc radiation
AATCC TM16 — Colorfastness to Light
AATCC 169 — Weather Resistance of Textiles: Xenon Arc Method
GB/T 8427-2008 — Textiles — Tests for color fastness — Color fastness to artificial light: Xenon arc

Product Overview

Designed for artificial weathering and light aging tests simulating natural sunlight exposure. The chamber is suitable for automotive interiors, plastics, paints, coatings, electronic instruments, textiles, printing and dyeing materials, dyes, decorative materials, wood flooring, safety helmets, leather, petrochemical products, rubber, and other related materials.

By setting xenon lamp irradiance, temperature, humidity, water spray, and light/dark cycles inside the chamber, the equipment provides standardized simulated natural environments to evaluate material performance changes such as fading, aging, softening, hardening, and cracking.

Technical Parameters

Item	Specification
Model	SN884B
Test Chamber Size (DWH)	490 * 790 * 400 mm
Overall Dimensions (DWH)	1130 * 1020 * 1800 mm
Lamp Type	Air-cooled xenon arc lamp
Lamp Lifetime	≥ 1200 hours
Irradiance Control Wavelengths	340 nm, 420 nm, 300–400 nm
Irradiance Range	0.35–1.00 W/m² @340 nm; 0.45–2.40 W/m² @420 nm
Irradiance Control	Built-in solar eye, closed-loop PID automatic adjustment
Filter System	Special glass filters simulating daylight or window glass environments
Air Temperature Range	35–65 °C (adjustable)
Black Panel Temperature (BPT)	Light cycle 55–100 °C; dark cycle 35–65 °C
Black Standard Temperature (BST)	Light cycle 60–110 °C; dark cycle 35–65 °C
Temperature Deviation	±3 °C
Humidity Range	Light cycle 20–75% RH; dark cycle 45–95% RH
Humidity Deviation	±5% RH
Irradiation Area	3240 cm²
Sample Inclination	10°
Sample Capacity	Standard finished parts or 3D specimens
Light/Dark Cycle	0–9999 h programmable
Spray Cycle	0–9999 h programmable
Spray Method	Surface spray
Number of Lamps	3 units

Product Details

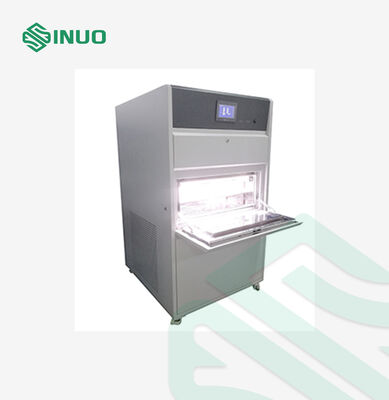

Programmable Xenon Arc Weathering Test Chamber for Accelerated Sunlight Aging and Climate Simulation 0

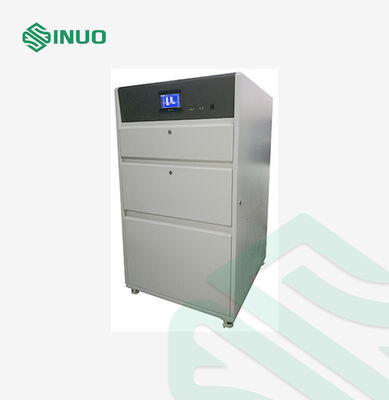

Programmable Xenon Arc Weathering Test Chamber for Accelerated Sunlight Aging and Climate Simulation 1
