Xenon Arc Accelerated Weathering Test Chamber for Automotive Materials ASTM D7869

Brand Name:	Sinuo
Model Number:	SN884A-F750
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Test Chamber Size (D×W×H):

750 × 750 × 750 Mm

Overall Dimensions (D×W×H):

1500 × 900 × 1900 Mm

Lamp Type:

Air-cooled Xenon Arc Lamp

Lamp Lifetime:

≥1000 Hours

Energy Control:

@340 Nm / @420 Nm / @300–400 Nm

Irradiance Range:

0.25–0.89 W/m² @340 Nm

Air Temperature Range:

35–65 °C

Light/Dark Cycle:

0–9999 H Programmable

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Product Description

Xenon Arc Accelerated Weathering Test Chamber for Automotive Materials ASTM D7869

Compliance Standards

ISO 4892 Plastics – Methods of Exposure to Laboratory Light Sources – Part 2: Xenon Arc Lamps

AATCC TM16 Colorfastness to Light

AATCC 169 Textiles – Weather Resistance Test: Xenon Arc Method

ASTM D7869

ASTM G155

Product Overview

This equipment is used for simulated sunlight exposure and artificial aging tests on various automotive parts and interiors, electronic dashboards, printing and dyeing products, dyes, decorative materials, and more.

By setting solar radiation energy, temperature, humidity, and various climatic day/night alternating conditions inside the test chamber, it provides a standardized simulated natural environment required by standards to evaluate material performance changes such as fading, aging, softening, hardening, cracking, etc.

Technical Parameters

Model	SN884A-F750
Working Chamber Size	750 * 750 * 750 mm (DWH)
Overall Dimensions	1500 * 900 * 1900 mm (DWH)
Lamp Type	Air-cooled xenon lamp
Lamp Lifetime	≥1000 hours
Energy Control	@340 nm / @420 nm / @300–400 nm
Irradiance Range	0.25–0.89 W/m² @340 nm 0.45–1.50 W/m² @420 nm 29–89 W/m² @300–400 nm
Irradiance Adjustment	Built-in solar eye with PID closed-loop control
Filter	Special glass filter combination
Air Temperature Range	35–65 °C
Black Panel Temperature	Light cycle 55–100 °C; dark cycle 35–65 °C
Humidity Range	Light cycle: 20–75% RH Dark cycle: 45–95% RH
Temperature Deviation	±3 °C
Humidity Deviation	±5% RH
Sample Tray	700 * 700 mm flat type
Sample Capacity	Standard finished parts or 3D samples
Light/Dark Cycle	0–9999 h programmable
Spray Cycle	0–9999 min programmable
Spray Method	Front surface spray
Number of Lamps	3

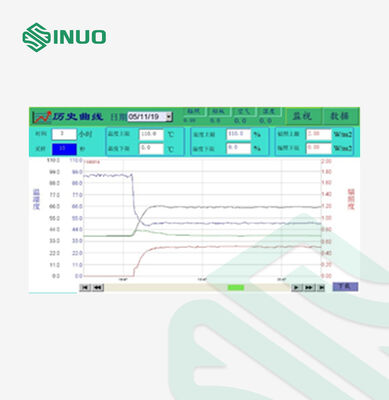

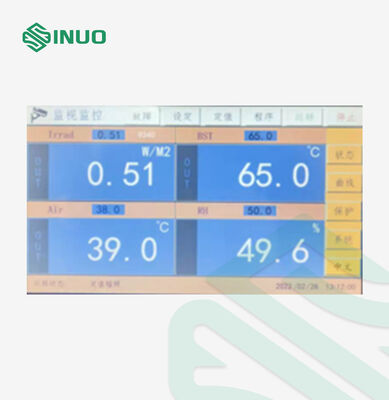

Control System	7-inch color touchscreen HMI Chinese interface Program mode or fixed-value mode Adjustable test standards (program or fixed) Control parameters: BPT/BST, chamber temperature, humidity, irradiance, xenon lamp temperature, exposure time, over-temperature setting, run time, spray time, monitoring curves, status monitoring, alarms Protection Functions: Over-temperature, fan overload, lamp overheating, water shortage, phase loss, humidifier dry-burn, etc. Data Storage: Large-capacity storage with USB export

Product Details

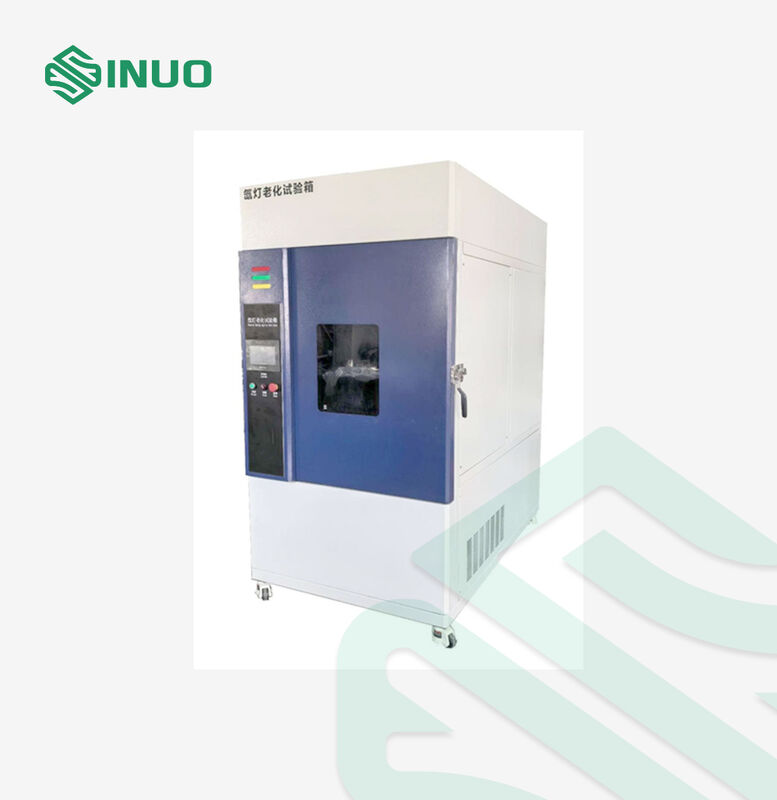

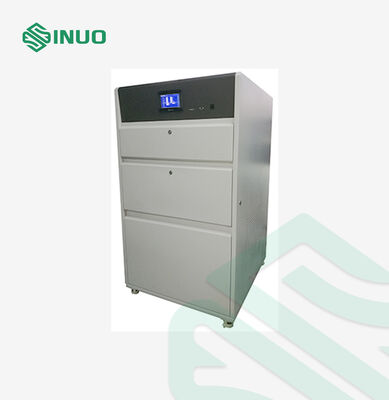

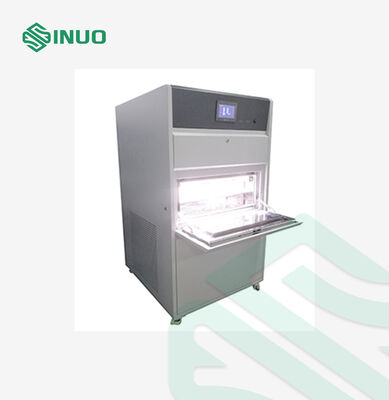

Xenon Arc Accelerated Weathering Test Chamber for Automotive Materials ASTM D7869 0

Xenon Arc Accelerated Weathering Test Chamber for Automotive Materials ASTM D7869 1
