Water Ingress Testing Equipment for IPX5 IPX6 Water Jet Test System Hose Nozzle IEC 60529

Name: Water Ingress Testing Equipment for IPX5 IPX6 Water Jet Test System Hose Nozzle IEC 60529
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN447
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN447
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

IPX6 Nozzle Size:

Ø12.5 Mm

IPX5 Nozzle Size:

Ø6.3 Mm

IPX6 Water Delivery Rate:

100 ± 5 L/min

IPX5 Water Delivery Rate:

12.5 ± 0.625 L/min

Load Capacity:

≤ 50 Kg

Turntable:

Ø600 Mm

Pressure Gauge:

0–0.25 MPa, Digital Display

Control System:

PLC And Touchscreen Control

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

PLC and touchscreen control Water Ingress Testing Equipment

Ø600 mm turntable IPX5 IPX6 Water Jet Test System

IEC 60529 compliant Hose Nozzle Waterproof Testing Equipment

Product Description

IPX5 IPX6 Water Jet Test System Hose Nozzle

Professional water ingress testing equipment for verifying waterproof protection of electronic enclosures, automotive components, lighting fixtures, and sealing elements according to IEC 60529 standards.

Standards Compliance

Conforms to IEC 60529-2013 "Degrees of protection provided by enclosure (IP code)" for IPX5 and IPX6 testing requirements.

Product Overview

The SN447 IPX5~6 Hose Nozzle Water Jet Test System is engineered to verify water ingress protection for electronic and electrical devices, automotive components, motorcycle parts, household appliances, lighting fixtures, and sealing elements. This system simulates high-pressure water jets as defined in IEC 60529 IPX5 and IPX6 standards, ensuring your products comply with international waterproof requirements.

Featuring a PLC intelligent control system, adjustable jet angles, and a sturdy rotating turntable, this equipment provides reliable and repeatable IP testing performance with precise water flow control and high-precision nozzles that spray enclosures from all practicable directions.

Technical Specifications

Category	Specification
Standards Compliance	IEC 60529-2013 (IPX5 and IPX6)
Nozzle Size	IPX5: Ø6.3 mm \| IPX6: Ø12.5 mm
Water Delivery Rate	IPX5: 12.5 ± 0.625 L/min \| IPX6: 100 ± 5 L/min
Nozzle to Enclosure Distance	2.8 m (within standard range of 2.5 - 3.0 m)
Jet Angle	Adjustable water jet direction
Turntable	Ø600 mm, 1 rpm, load capacity ≤ 50 kg
Test Duration	0.01 s - 99.9 min, programmable
Control System	PLC and touchscreen control
Water Storage Tank	500 L stainless steel, open type, with float valve & level alarms
Nozzle Mounting	Fixed support for spray and hose nozzles
Pressure Gauge	0-0.25 MPa, digital display
Safety Protections	Phase sequence, leakage, water shortage, abnormal operation
Power Supply	AC 380V, 50 Hz, 4 kW

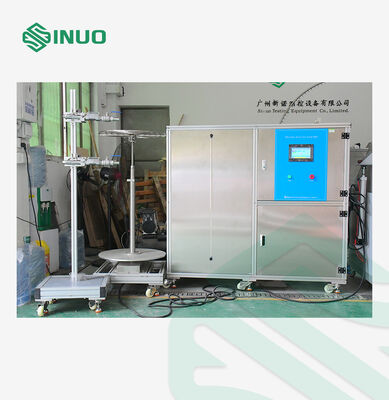

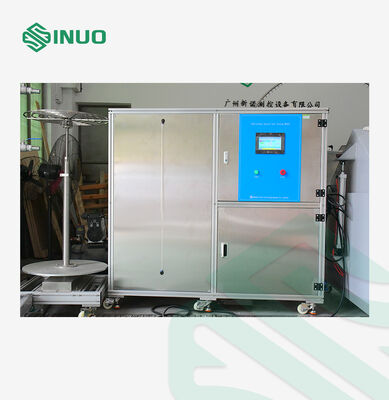

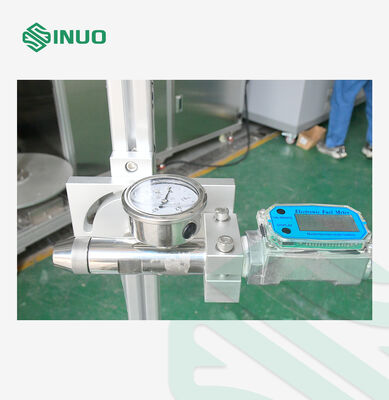

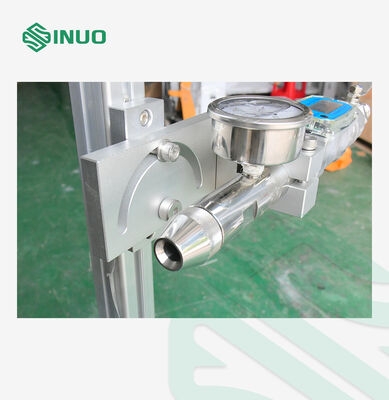

Product Images
