1000L Capacity High and Low Temperature Low Pressure Battery Environmental Test Chamber for EV Battery Testing

1000L Capacity High and Low Temperature Low Pressure Battery Environmental Test Chamber for EV Battery Testing

Brand Name:	Sinuo
Model Number:	SN5511C-1000L
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	1 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Outside Chamber Size:

W*H*D: 3250*1400*2000 Mm

Inner Chamber Size:

W*H*D: 1000*1000*1000 Mm

Cooling Method:

Air-cooled

Temperature Range:

-40℃~+70℃

Cooling Time:

20℃ → -40℃, ≤ 30 Min

Heating Time:

20℃ → +100℃, ≤ 30 Min

Pressure Fluctuation:

≤ ±2 KPa (1 Bar ~ 40 KPa);

Depressurization Time:

≤ 30 Minutes To 5 KPa

Packaging Details:

Other

Supply Ability:

1 sets/month

Highlight:

1000L Capacity Battery Environmental Test Chamber

High and Low Temperature Battery Testing Equipment

Low Pressure Environmental Simulation Device

Product Description

1000L High and Low Temperature Low Pressure Battery Environmental Test Chamber

This high-precision environmental simulation device is designed for reliability testing of batteries and electronic products. It conducts long-term stable testing under low temperature, high temperature, low pressure, and combined conditions. The equipment features microcomputer PID control for precise regulation of temperature, humidity, and pressure, with air-cooled mechanical cascade compression refrigeration, finned-tube electric heating, vacuum pumping, and manual pressurization functions.

Additional safety features include a blast-proof pressure relief system, carbon dioxide automatic fire suppression system, multiple safety protection devices, and an advanced programmable control system. The chamber supports programmable testing, data acquisition, and remote monitoring, making it ideal for environmental resistance testing in battery, electronics, and aerospace industries.

Technical Specifications

Performance Parameters

Cooling Method	Air-cooled
Temperature Range	-40℃ to +70℃
Temperature Fluctuation	≤ 0.5℃ (ambient pressure, no load)
Temperature Deviation	≤ ±2.0℃ (ambient pressure, no load)
Heating Time	20℃ to +100℃, ≤ 30 min (ambient pressure)
Cooling Time	20℃ to -40℃, ≤ 30 min (ambient pressure)
Pressure Range	Ambient pressure to 5 kPa (commonly 11.6 kPa)
Pressure Deviation	≤ ±2 kPa (≥ 40 kPa) / ≤ ±5% (2-40 kPa)
Pressure Fluctuation	≤ ±2 kPa (1 bar ~ 40 kPa); ≤ ±5% (40 kPa ~ 2 kPa)
Depressurization Time	≤ 30 minutes to 5 kPa

Structural Features

Sample Specifications	Selectable voltage: 12V, 24V, 36V, 48V Max battery size: 720480600 mm Weight: 280 kg Max voltage: 56V Max current: 300A
Inner Chamber Dimensions	100010001000 mm (WHD)
Outer Dimensions	325014002000 mm (excluding protrusions)
Outer Wall Material	1.5 mm painted iron sheet
Inner Wall Material	SUS304 stainless steel (5 mm, pressure-bearing structure)
Insulation Material	Rigid polyurethane foam
Chamber Door	Single door with explosion-proof handle, viewing window, internal lighting
Lead-through & Terminal Posts	One Φ100 mm lead-through on left side; sealed terminal flange
Manual Inflation Valve	For manual pressure equalization during power failure
Shelves	Two stainless steel shelves
Chamber Heater	Stainless steel finned tube heater
Heater Control	SSR (solid state relay) pulse-width modulation
Vacuum Pump	VD401 ULVAC direct-drive, air-cooled, single-stage rotary vane vacuum pump
Vacuum Sensor	UNIK 5072 (GE, USA), Range: 0-200 kPa, Accuracy: ±0.2% FS.BSL

Testing Program Requirements

Test batteries and battery packs shall be stored at 75 ± 2°C for at least 6 hours, followed by storage at -40 ± 2°C for at least 6 hours. The maximum time interval between extreme test temperatures shall be 30 minutes. This cycle shall be repeated 10 times. Afterward, all test units shall be stored at ambient temperature (20 ± 5°C) for 24 hours. For large batteries and battery packs, exposure time at extreme test temperatures shall be at least 12 hours.

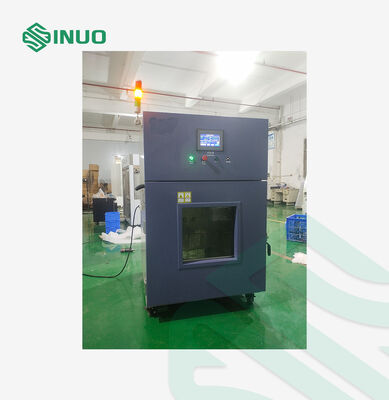

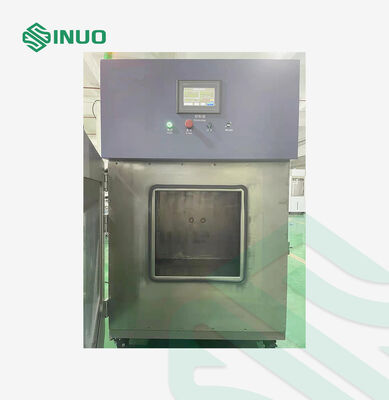

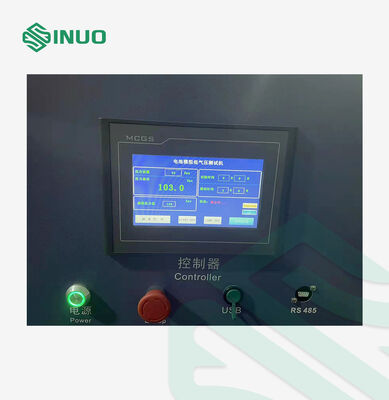

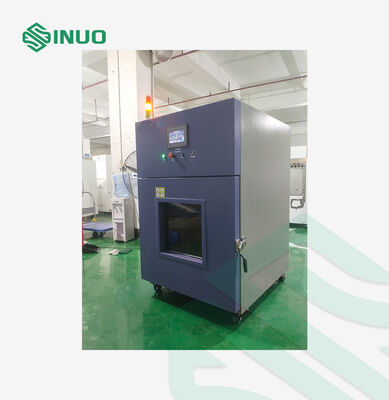

Product Images
