EV Connector Testing Equipment with 6500A Test Current and 16-Channel Temperature Measurement for IEC 62916-3 Automated Temperature Control Mode

EV Connector Testing Equipment with 6500A Test Current and 16-Channel Temperature Measurement for IEC 62916-3 Automated Temperature Control Mode

Brand Name:	Sinuo
Model Number:	SNQC1006B-6500A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Sampling Frequency:

100ms To 1800s

Temperature Measurement Points:

16 Channels

Temperature Measurement Range:

0–260°C

Temperature Rise Setting Range:

0–100°C

Constant Adjustable Test Current Output:

DC 200–6500A

Maximum Output Voltage:

DC Less Than DC 15V

Dimensions:

1000mm (W) × 1300mm (D) × 1800mm (H)

Weight:

400kg

Packaging Details:

Export packing

Supply Ability:

10 Sets Per Month

Highlight:

6500A Test Current EV Connector Testing Equipment

16-Channel Temperature Measurement Temperature Rise Test System

Automated Temperature Control Mode IEC 62916-3 Test System

Product Description

EV Connector Testing Equipment

Advanced surface heating and temperature rise assessment system for electric vehicle plugs and sockets

IEC 62916-3 EV Plug and Socket Temperature Rising Test System 6500A

Compliance Standards

Designed in compliance with IEC 62196-1 Ed.4 CDV 2020 (clause 12.3, clause 24, table 10, clause 34.2, 34.4, and 35.4), IEC 62916-2, IEC 62916-3, and other relevant standards.

System Overview

This comprehensive test system evaluates temperature rise in electric vehicle plugs and sockets at rated current, while also assessing surface heating of electrical accessories during load connection. The system supports short-duration, high-current withstand testing of ground contacts, ensuring reliable performance and safety verification.

Equipped with proprietary software and computer control, the system enables fully automated test execution and data analysis. Its intuitive operation and precise performance provide an efficient solution for temperature rise assessment and compliance verification of electric vehicle charging interfaces and related components.

Technical Specifications

Parameter	Specification
Output Workstation	1 DC output station
Maximum Output Voltage	DC less than 15V
Constant Adjustable Test Current Output	DC 200-6500A
Current Display Accuracy	±(0.25% of reading + 0.25% of range), resolution 1A
Voltage Display Accuracy	±(0.25% of reading + 0.25% of range), resolution 0.01V
Test Current Stability	±(1% of set value + 0.5A), response time approximately 1s
Control Contact Power Supply	Current range AC (0-2) A
Operating Modes	Continuous mode, On/Off mode, Automatic temperature control mode
Temperature Measurement Range	0-260°C, Accuracy: ±0.3% of reading + 1°C; Resolution: 0.1°C
Temperature Measurement Points	16 channels (including 1 point for measuring ambient temperature)
Thermocouple Types Supported	J, K, T, E, S, N, B, R types
Thermocouple Used for Measurement	USA Ω Company K-type 30AWG fine wire thermocouples, length 2 meters, 20 pieces total

Operating Mode Details

Continuous Mode: Test Time: 0.01-99.99 hours
On/Off Mode: Power On/Off Time: 0.01-99.99 hours, Count: 1-9999 times with automatic stop
Programmable Control: Configurable settings according to IEC62196 with time and current combinations
Automatic Temperature Control Mode: Set stable temperature rise value (0-100°C) with ±0.5°C stability accuracy; automatically calculates required current for desired temperature rise

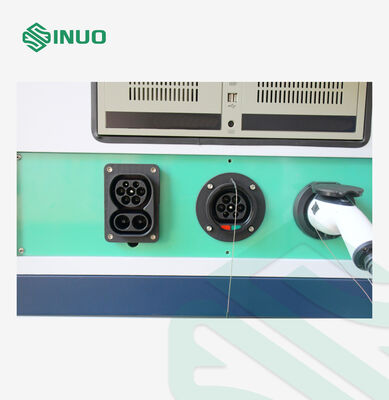

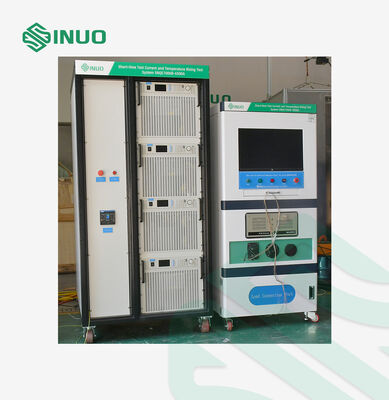

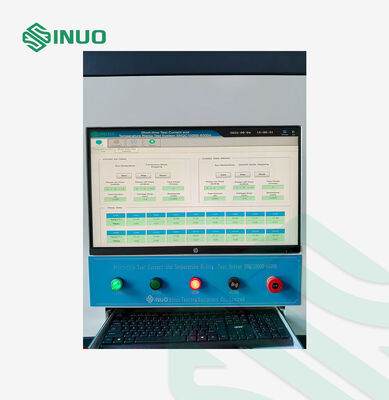

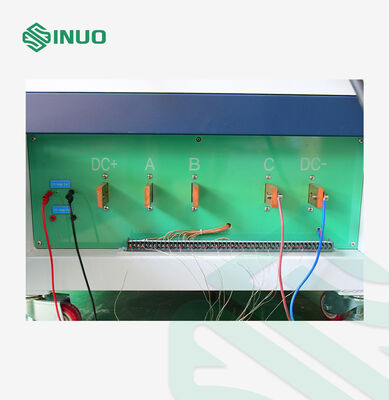

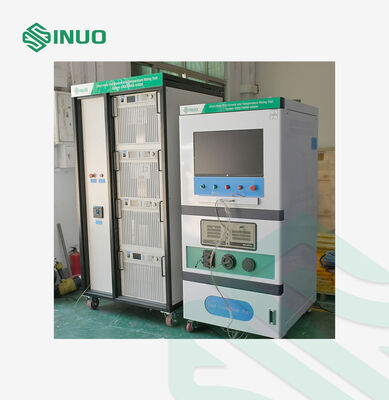

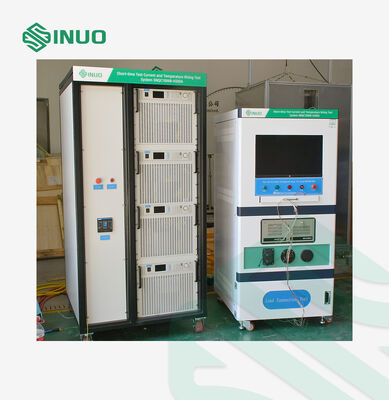

System Images
