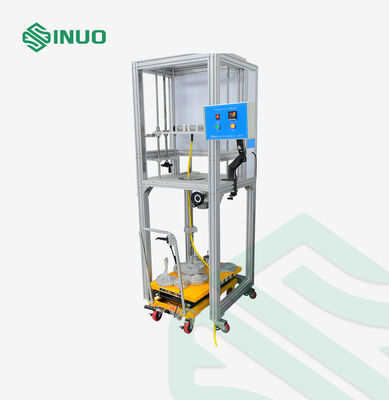

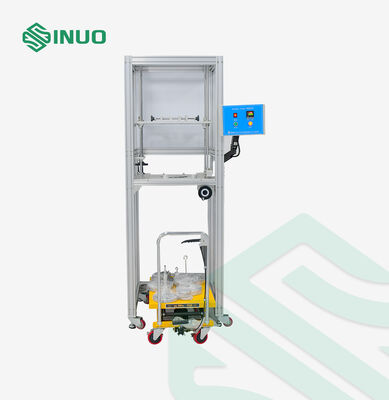

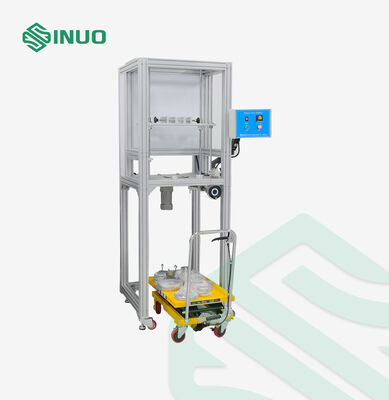

IEC 62196-1:2022 Compliant Screw Terminal Clamping Tester for EV Connectors with 75mm Rotating Diameter and (10±2) r/min Testing Rate

IEC 62196-1:2022 Compliant Screw Terminal Clamping Tester for EV Connectors with 75mm Rotating Diameter and (10±2) r/min Testing Rate

Brand Name:	Sinuo
Model Number:	SNQC1012
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	20 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Clause:

Clause 13.3.1 Fig12, Table 3

Applied Standard:

IEC 62196-1:2022

The Rotating Diameter:

75mm

Rate Of Testing:

(10±2) R/min

Power Supply:

AC220V,50/60Hz

Rotating Weight:

0.4~70.3kg

Size:

790mmX400mmX1500mm

Height(H)(mm):

260-660mm

Packaging Details:

Plywood case

Supply Ability:

20 sets/month

Highlight:

IEC 62196-1:2022 Compliant Screw Terminal Clamping Tester

75mm Rotating Diameter EV Connector Test Machine

(10±2) r/min Testing Rate Terminal Clamping Force Test Machine

Product Description

Screw Terminal Clamping Strength Tester for EV Connectors IEC 62196-1

This specialized testing equipment evaluates the reliability and structural integrity of screw terminal clamping mechanisms in EV connectors, ensuring compliance with international safety standards.

Compliance Standards

Conforms to IEC 62196-1:2022 clause 13.3.1 fig12, table 3 requirements for electric vehicle conductive charging systems.

Equipment Functionality

This compliance testing machine assesses whether clamping screw terminal designs and structures meet requirements for preventing wire damage during installation and normal operation. It verifies the terminal's ability to withstand stress during regular usage conditions.

The system features programmable testing cycles with preset counter functionality and automatic shutdown with alarm notification when testing cycles are completed.

Technical Specifications

Power Supply	AC220V, 50/60Hz
Counting Range	1-9999 cycles (150 cycles/15 minutes default)
Testing Rate	(10±2) rotations per minute
Rotating Weight Range	0.4-70.3kg (refer to table 3 for details)

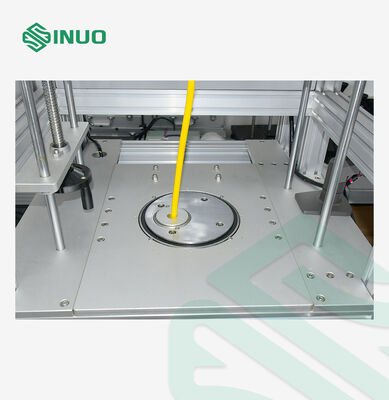

Rotating Diameter	75mm

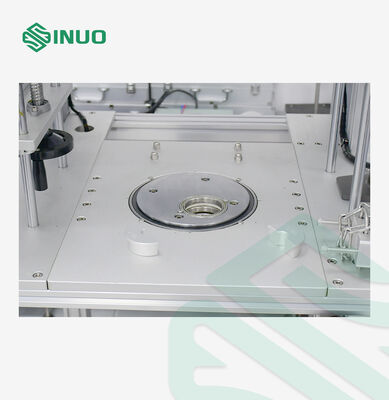

Bushing Hole Diameters	6.5, 9.5, 13, 14.5, 15.9, 19.1, 22.2, 25.4, 28.6, 31.8, 38.1, 44.5mm
Height Range (H)	260-660mm
Overall Dimensions	790mm * 400mm * 1500mm
