IEC62196-1 EV Connectors Cable Anchorage Pull Force And Torque Test Equipment

IEC62196-1 EV Connectors Cable Anchorage Pull Force And Torque Test Equipment

Brand Name:	Sinuo
Model Number:	SNQC1007
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	5 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Torque Arm:

Ф200mm

Pull Frequency:

1 Cycle/s

Equipment Weight:

Approx. 220KG

Equipment Dimensions:

L 1560mm*W 600mm*H 1530mm

Power Supply:

Single Phase AC220V±10%, 50/60Hz, 10A

Pull Force Weights:

40N*1, 50N*1, 60N*1, 100N*2,250N*1 Can Achieve 160N, 200N, 240N, 250N,500N,600N Pull Force

Torque Weights:

6N*1, 7N*1, 12N*1, 15N*1, 23N*1, 110N*1 Can Achieve 0.6N.m, 0.7N.m, 1.2N.m, 1.5N.m, 2.3N.m, 11N.m Torque

Packaging Details:

Plywood

Supply Ability:

5 Sets Per Month

Product Description

IEC62196-1 EV Connectors Cable Anchorage Pull Force And Torque Test Equipment

Product Information:

This pull force and torque test equipment is used to test the vehicle plugs, and socket-outlets, connectors to withstand the specified pull force and torque.

Compliance Standards:

It is designed and manufactured according to IEC62196-1: 2022 clause 25.3 Figure 17 and table 11, IEC60309-1: 2012 clause 23.3, etc.

Principle and Structure:

Pull is realized by single-phase speed-regulating motor to drive the eccentric mechanism, the motor speed is adjustable, to ensure the accurate time for each pull force applied; torque is achieved by releasing the torque weight by air cylinder.

Technical Parameters:

Operation Method	Button operation
Drive Mode	Motor and cylinder
Pull Force Weights	40N1, 50N1, 60N1, 100N2, 250N*1 Can achieve 160N, 200N, 240N, 250N, 500N, 600N pull force
Torque Weights	6N1, 7N1, 12N1, 15N1, 23N1, 110N1 Can achieve 0.6N.m, 0.7N.m, 1.2N.m, 1.5N.m, 2.3N.m, 11N.m torque
Torque Arm	Ф200mm
Pull Frequency	1 cycle/s
Pull Cycles	1-999999 cycles, can be preset, default 100 cycles
Torque Applied Time	0.01S ~ 99 hours 59 minutes 59 seconds, default 1 min
Fixture	One set of universal fixtures
Equipment Dimensions & Weight	L 1560mmW 600mmH 1530mm, approx. 220KG
Power Supply	Single phase AC220V±10%, 50/60Hz, 10A

Product Details

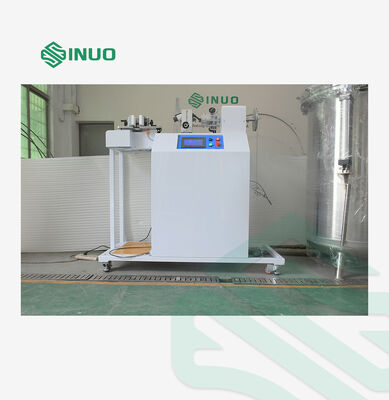

IEC62196-1 EV Connectors Cable Anchorage Pull Force And Torque Test Equipment 0

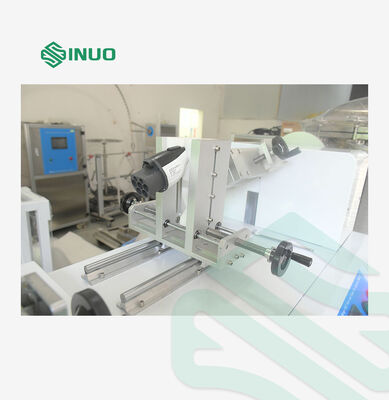

IEC62196-1 EV Connectors Cable Anchorage Pull Force And Torque Test Equipment 1
