6500A PLC-Controlled Short-Time Current & Temperature Rise Test System For EV Plugs And Sockets

6500A PLC-Controlled Short-Time Current & Temperature Rise Test System For EV Plugs And Sockets

Brand Name:	Sinuo
Model Number:	SNQC1006B-6500A
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Temperature Rise Setting Range:

0–100°C

Weight:

Approx. 400kg

Maximum Output Voltage:

DC Less Than DC 15V

Dimensions:

Approx.1000mm(W) × 1300mm (D) × 1800mm (H)

Power Supply:

AC 220V ±10%, 50/60Hz, 50KVA

Temperature Measurement Range:

0–260°C, Accuracy: ±0.3% Of Reading + 1°C; Resolution: 0.1°C

Operating Modes:

Continuous Mode, On/Off Mode, Automatic Temperature Control Mode

Packaging Details:

Plywood

Supply Ability:

10 Sets Per Month

Highlight:

6500A PLC-controlled EV connector tester

short-time current test system for EV plugs

temperature rise test equipment for EV sockets

Product Description

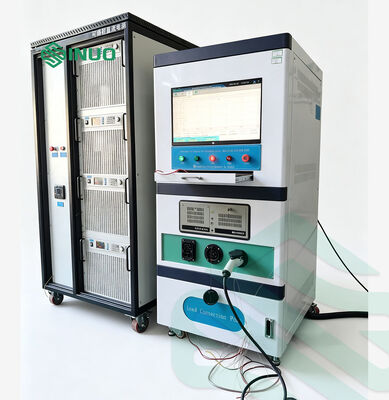

6500A PLC-Controlled Short-Time Current & Temperature Rise Test System For EV Plugs And Sockets

Product Information

This test system is specially used for temperature rise testing of EV plugs and sockets under rated current, to evaluate the surface heating condition of electrical accessories when loaded with current, and verify whether the terminal temperature rise meets standard requirements. It is also applied to short-time high current withstand test for grounding contacts of EV charging connectors and accessories.

Compliance Standards

Conforms to IEC 62196-1 Ed.4 CDV 2020 Clause 12.3, Clause 24, Table 10, Clause 34.2, 34.4, 35.4, IEC 62916-2 and IEC 62916-3 standards.

Equipment Features

Adopts computer-controlled self-programmed test software for full-automatic test process and data judgment, easy to operate.
Automatically records and analyzes temperature rise data, and judges whether test results meet standard requirements.
Supports multiple working modes: continuous mode, on/off cycle mode, automatic temperature control mode.
Equipped with 16-channel high-precision temperature measurement, real-time curve display and data storage.
Provides voltage drop and resistance testing function, with overload & overcurrent protection for long-term stable operation.
Configured with touchscreen integrated industrial computer, supporting data export via USB in CSV/XLSX formats.

Technical Parameters

Output Workstation	1 DC output station
Maximum Output Voltage	DC less than DC 15V
Control Contact Power Supply	Current range AC (0–2) A
Operating Modes	Continuous mode, On/Off mode, Automatic temperature control mode
Temperature Rise Setting Range	0–100°C
Temperature Measurement Range	0–260°C, Accuracy: ±0.3% of reading + 1°C; Resolution: 0.1°C
Temperature Measurement Points	16 channels
Power Supply	AC 220V ±10%, 50/60Hz, 50KVA
Dimensions	Approx.1000mm(W) × 1300mm (D) × 1800mm (H)
Weight	Approx. 400kg
