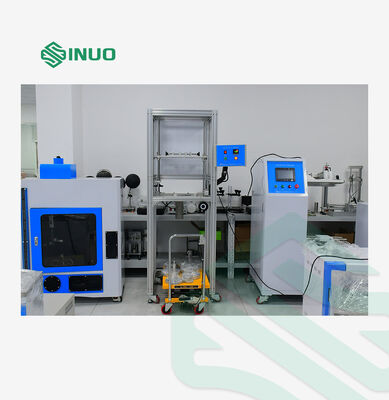

IEC 62196-1 Compliant Terminal Clamping Load Flexing Test Machine For EV Connectors

This tester complies with IEC 62196-3:2026 Clause 13 & IEC 62196-1:2022 Clause 13.3.1, Figure 12 & Table 5.

It verifies whether the structural design of screw-clamped terminals meets the standard requirement to avoid excessive wire damage, and checks the terminal’s load-bearing capacity against mechanical stress under actual service conditions. Test cycles can be pre-set in advance; the unit will halt automatically and trigger an alarm once the preset test cycles are completed.

(Bushing & Load Weight Specification Table)

1. EV Charging Connector Manufacturers For in-house quality inspection of screw-clamped terminals inside AC/DC EV charging guns, verifying terminal structural reliability after long-term rotary swing load test and avoiding excessive wire damage in daily use.
2.  Automotive Wiring Harness & Cable Factories Durability verification for power cable terminal crimping and clamping structure to comply with international IEC certification requirements.
3. Third-Party Accredited Testing Laboratories Standard-compliant IEC62196 mechanical load flexing test for product certification, type approval and incoming material inspection of EV terminal components.
4. Automotive Component R&D Institutes New product development verification and structural optimization of screw locking terminals for electric vehicle charging assemblies.
