IEC 62196-3 Creepage Distance Test Cards | Stainless Steel Gauges For Electrical Clearance

Name

IEC 62196-3 Creepage Distance Test Cards | Stainless Steel Gauges For Electrical Clearance

Brand Name:	Sinuo
Model Number:	SN2134
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	90 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Compliance Standard:

IEC 62196-1; 62196-3

Product Material:

Stainless Steel

Product Sizes:

30 Sizes/Set

Test Sample:

Electrical Clearance Of Appliances

Packaging Details:

Plywood

Supply Ability:

90 Sets Per Month

Product Description

IEC 62196-3 Creepage Distance Test Cards | Stainless Steel Gauges For Electrical Clearance

Product Information

These creepage gauges are designed to comply with IEC 62196-3:2026 Clause 28 and IEC 62196-1:2025 Clause 28.1. They are used to determine the shortest creepage path between two conductive parts, or between a conductive part and the equipment’s bounding surface, measured along the surface of the insulation. All specifications are made in accordance with the standard requirements.

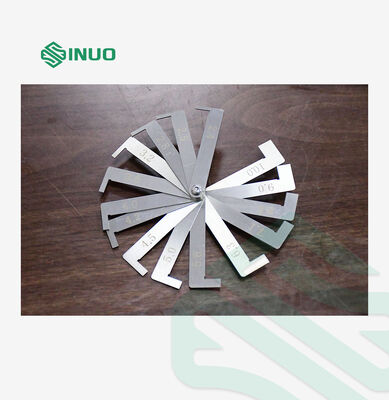

IEC 62196-3 Creepage Distance Test Cards | Stainless Steel Gauges For Electrical Clearance 0

Technical Parameters

Model No.	Size Specification
SN2134	1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm /2.5mm/2.8mm/3.2mm/3.6mm/4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm Total 30 creepage distance gauges

Product Details

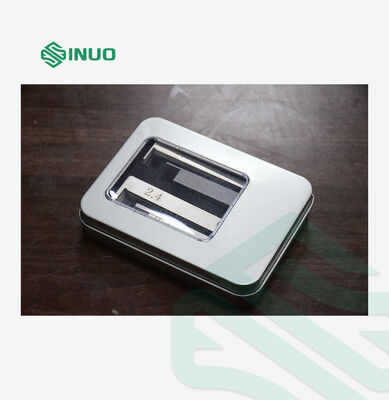

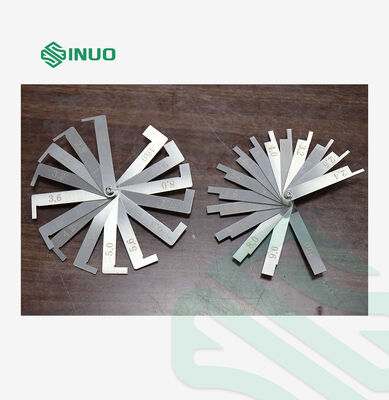

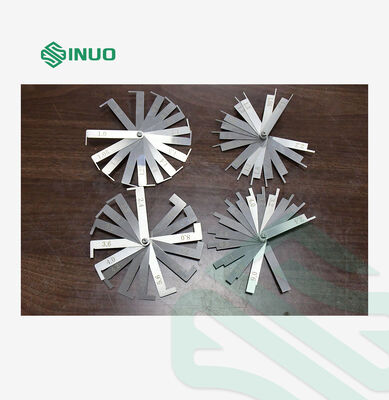

IEC 62196-3 Creepage Distance Test Cards | Stainless Steel Gauges For Electrical Clearance 1
