1000 Kgf Electromagnetic Vibration Testing Machine 1-3000Hz 300kg Payload For IEC MIL GB Testing

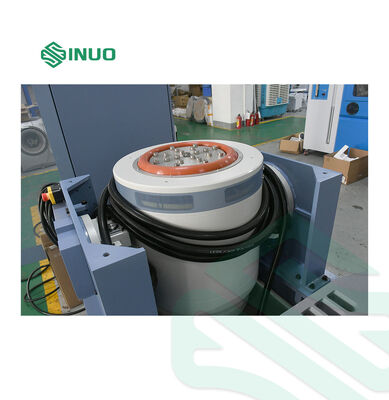

A11S24 electromagnetic excitation generator parameters

Maximum sinusoidal excitation force

1000kg.f peak

Maximum Random Exciting Force

1000kg.f r.ms

Maximum impact excitation force

2000kg.f peak

Frequency Range

1～3000 Hz

Maximum displacement

51 mm p-p

Maximum speed

2m/s

Maximum acceleration

100G(980 m/s²)

First-Order Resonant Frequency

3200 Hz±5%

Effective load

300 kg

Vibration isolation frequency

2.5 Hz

Moving coil diameter

Ф240 mm

Moving coil weight

10kg

Screw on the table

16×M10

Flux leakage

＜10gauss

Allowable Eccentric Moment

300N·m

Equipment size

845mmx790mmx840mm (without expansion table)

Equipment weight

Approx. 1100Kg (without horizontal slip table)

LA12K digital switching power amplifier

Output power

12KVA

Output voltage

100V

Output current

100A

Amplifier Efficiency

≥90%

Switching Frequency

116KHz

Signal-to-Noise Ratio (SNR)

≥65dB

Noise Level

≤70dB

Amplifier size

880mmx590mmx1720mm

Servo protection system

Function

Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss

Digital vibration controller VCS-2

Hardware configuration

2 simultaneous input channels, 1 output channel

Sine, random, classical shock

Control computer

Original computer with 17" LCD monitor, keyboard and optical mouse

Software

With bilingual (Chinese/English) operation interface, it supports time-domain and frequency-domain analysis, signal source control, sine sweep analysis, and more. It can automatically generate WORD test reports, and features functions for signal/data display, storage, test parameter configuration, and data analysis.

Acceleration sensor LTE C04A07

Frequency range: 1-8000Hz

Sensitivity: 30pc/g

Temperature range: -40 - 160℃

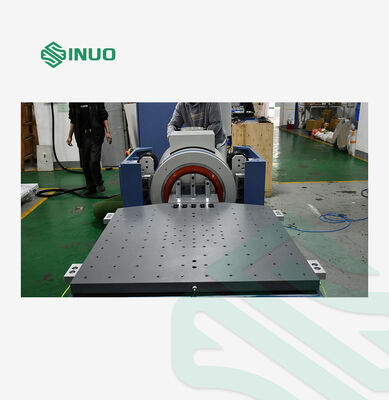

VT80 vertical extension table

Material

Aluminum/Magnesium alloy, surface hard anodized

Table size

800mm×800mm

Fixed hole

M8 stainless steel screw sleeve, durable and wear-resistant

Usage frequency

Sine:1000 Hz; Random: 1500Hz

Weight

About 67.5KG

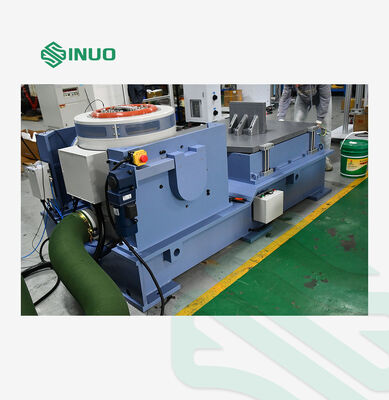

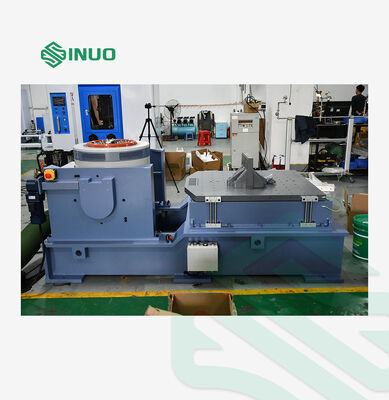

HG80 horizontal oil film slide table

Material

Aluminum/Magnesium alloy, surface hard anodized

Table size

800mm×800mm

Fixed hole

M8 stainless steel screw sleeve, durable and wear-resistant

Usage frequency

Sine:2000 Hz; Random: 2000Hz

Weight

About 105KG

B402 cooling fan(Including silencer)

Fan power

4KW

Fan flow rate

40.8m³/Min

Fan pressure

0.049kgf/cm2

Electrical requirements

Power supply

AC 3-phase 380V/50Hz, 25 KVA

Compressed Air

0.6Mpa

Ground resistance

≤4Ω
