IEC 60068 Compliant -40℃~130℃ Walk-in Constant Temperature And Humidity Test Chamber

IEC 60068 Compliant -40℃~130℃ Walk-in Constant Temperature And Humidity Test Chamber

Brand Name:	Sinuo
Model Number:	SN881C-9.7F
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Cooling Method:

Water-cooled

Temperature Range:

-40°～ 130℃

Humidity Resolution:

0.01RH

Humidity Range:

Standard: 20%RH～95%RH

Temperature Resolution:

0.01℃

Load Capacity:

1 KW Heat Load

Heating Rate:

≤3.0℃/min (non-linear, No Load)

Cooling Rate:

Average 1.0℃/min (non-linear, No Load)

Packaging Details:

Plywood

Supply Ability:

10 Sets Per Month

Product Description

IEC 60068 Compliant -40℃~130℃ Walk-in Constant Temperature And Humidity Test Chamber

Product Application

The Walk-in Constant Temperature and humidity Test Chamber is designed to expose products, components, and materials to controlled temperature and humidity environments to evaluate their performance and reliability under various conditions. This equipment is widely used in environmental simulation and reliability testing for electrical and electronic products, as well as other industrial components and materials. It supports constant high/low temperature testing, temperature/humidity cycling tests, and gradual temperature/humidity change tests.

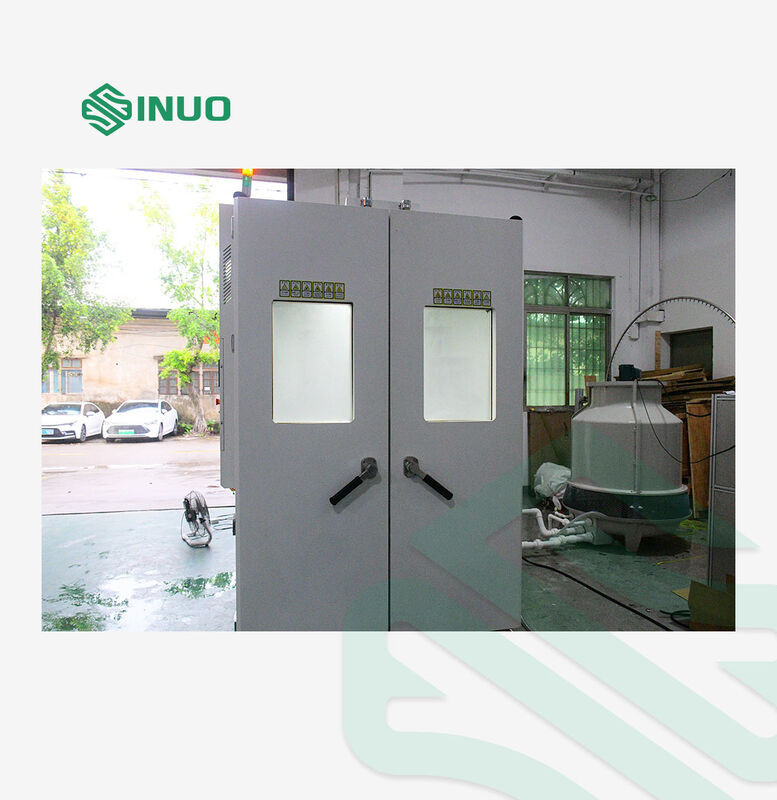

IEC 60068 Compliant -40℃~130℃ Walk-in Constant Temperature And Humidity Test Chamber 0

Complied Standards & Clauses

This constant temperature and humidity test chamber conforms to the following IEC standards and clauses:

• IEC 60068-2-1: Environmental testing – Part 2-1: Tests – Test A: Cold

• IEC 60068-2-2: Environmental testing – Part 2-2: Tests – Test B: Dry heat

• IEC 60068-2-3: Environmental testing – Part 2-3: Tests – Test Ca: Damp heat, steady state

• IEC 60068-2-30: Environmental testing – Part 2-30: Tests – Test Db: Damp heat, cyclic (12 h + 12 h cycle)

Safety Test Restrictions

The following samples are not permitted to be tested or stored in this chamber:

• Flammable, explosive, or highly volatile substances

• Corrosive substances, biological samples

• Samples with strong electromagnetic emission sources

Technical Parameters

Volume and Dimensions
Effective Volume	9.7F
Internal Chamber Dimensions	W2200H2000D2200 mm
External Dimensions	Approx. W2650×H2950×D2900 mm
Performance Specifications
Cooling Method	Water-cooled
Temperature Range	-40°～ 130℃
Humidity Range	Standard: 20%RH～95%RH
Temperature /Humidity Fluctuation	±2℃/±2.0%RH
Temperature Resolution	0.01℃
Humidity Resolution	0.01RH
Temperature Uniformity	≤2℃
Humidity Uniformity	≤75%RH: ±3%RH; >75%RH: ±5%RH
Heating Rate	≤3.0℃/min (non-linear, no load)
Cooling Rate	Average 1.0℃/min (non-linear, no load)
Load Capacity	1 kW heat load
Temperature and Humidity Diagram	PS: Standard humidity range: 20% ~ 95%RH
Operating Conditions
Ambient temperature	-5℃ ~ +28℃
Relative humidity	≤ 85%RH
Atmospheric pressure	80kPa ~ 106kPa
Power supply	380V AC (±10%), three-phase lines + protective earth wire
Grouding Resistance	≤ 4Ω
Total power	approx. 100kW
Maximum working current	approx. 152A
