IEC 60095-1 Lead-Acid Battery Electrolyte Retention Test Machine

Brand Name:	Sinuo
Model Number:	SNF11
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	5 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Test Station:

Single Station

Drive Mode:

Servo Motor + Pneumatic Cylinder

Sample Fixture:

Max W×D×H ≤ 400×400×500 Mm

Rotation Angle:

0°, 90°, 180°, 270°

Tilting Angle:

45° (mechanical Positioning)

Tilting Speed:

< 1 S

Tilting Interval Time:

0–999.9 S (programmable)

Tilting Holding Time:

0–999.9 S (programmable)

Packaging Details:

plywood case

Supply Ability:

5 set per month

Highlight:

IEC 60095-1 lead-acid battery tester

battery electrolyte retention test machine

electric vehicle battery testing equipment

Product Description

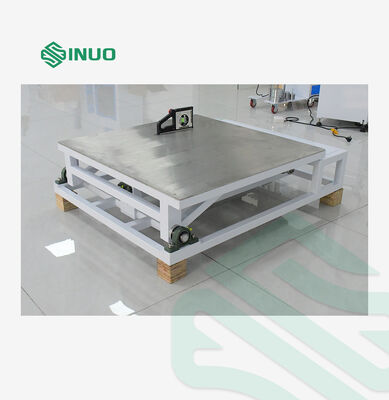

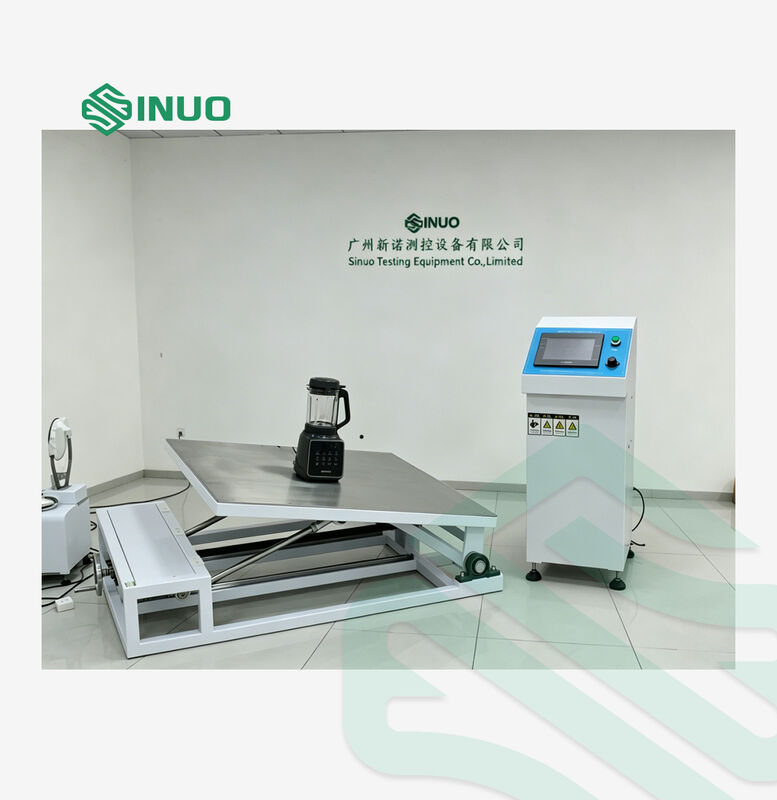

IEC 60095-1 Lead-Acid Battery Electrolyte Retention Test Machine

Product Overview

The Electrolyte Retention Test Machine is designed and manufactured in accordance with IEC 60095-1:2018 "Lead-acid starter batteries - Part 1: General requirements and methods of test", Clause 9.9. This equipment verifies whether electrolyte leakage occurs when a lead-acid starter battery is subjected to tilting in different orientations.

The system automatically completes a full test cycle including four-direction tilting, holding time, and reset. It is suitable for EU certification testing, R&D verification, and quality inspection applications.

Structure and Features

PLC control with touchscreen operation - parameters can be set and system runs automatically with one-key start
Servo motor drives the rotary platform to achieve precise positioning at four 90° positions

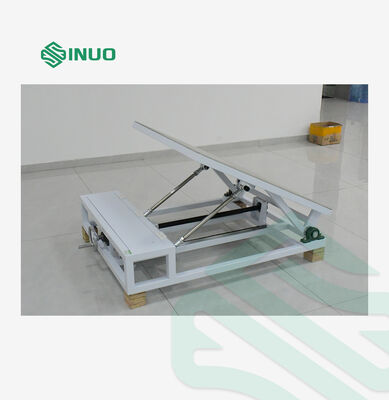

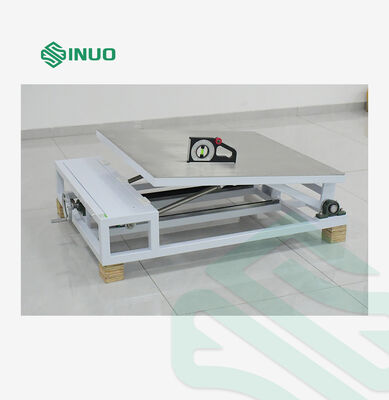

Pneumatic cylinder drives the tilting platform with mechanical horizontal limit, enabling fast switching between 0° and 45° positions

Test Principle and Process

The servo motor drives the platform to rotate 90° each time, allowing the battery sample to be tested in four different orientations. The pneumatic cylinder quickly drives the tilting platform to switch between 0° and 45° positions.

Technical Parameters

Parameter	Specification
Model	SNF11
Station	Single station
Control System	PLC intelligent integrated control, 7-inch HMI touchscreen
Drive Mode	Servo motor + pneumatic cylinder
Sample Fixture	Multi-point perforated plate fixture, adaptable to various sample sizes, max W×D×H ≤ 400×400×500 mm
Rotation Angle	0°, 90°, 180°, 270°
Tilting Interval Time	0-999.9 s (programmable)
Tilting Angle	45° (mechanical positioning)
Tilting Speed	< 1 s
Tilting Holding Time	0-999.9 s (programmable)
Equipment Size	Frame: approx. 1400 × 800 × 800 mm (W×D×H) Control Cabinet: 400 × 500 × 800 mm (W×D×H)
Weight	approx. 200 kg

Main Configuration List

Component	Brand
Electrical Control Cabinet	Sinuo
PLC	Mitsubishi
HMI Touch Screen	Weintek
Motor	Inovance
Cylinder	Airtac / Shenzhi
Gear Reducer	Domestic
Electrical Components	FUJI, Schneider, Omron, CHINT, etc.
Machine Frame	Sinuo
Sample Fixture	Sinuo
Software	Sinuo
