3N Built-in Force Test Probe C Compliant With IEC 61032 For IP3X Safety Inspection

Name: 3N Built-in Force Test Probe C Compliant With IEC 61032 For IP3X Safety Inspection
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN2210-3T
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN2210-3T
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	10 Sets Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Model:

SN2210-3T

Test Rod Diameter:

Ф2.5+0.05 0 (mm)

Stop Face Diameter:

Ф35±0.2 (mm)

Handle Diameter:

Ф10 (mm)

Test Rod Length:

100±0.2 (mm)

Built-in Force:

3N Force

Packaging Details:

Plywood

Supply Ability:

10 Sets Per Month

Product Description

3N Built-in Force Test Probe C Compliant With IEC 61032 For IP3X Safety Inspection

Product Information

This test rod fully complies with the specifications of IEC 61032 Test Probe C. It is a mandatory testing tool specified in IEC 60335-1 Clause 22.1, IEC 60529 IP3X, IEC 60065 and other international safety standards.

Designed for enclosure barrier assessment, this slender test rod verifies equipment safety by checking two key criteria: whether housings prevent users from touching internal hazardous components, and whether they block penetration by small hand tools.

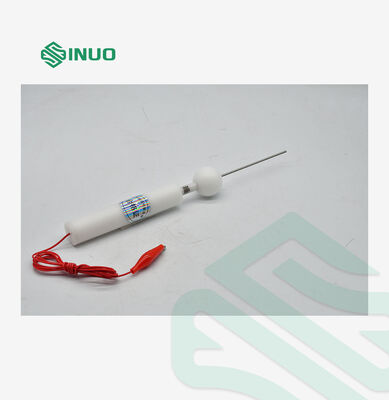

3N Built-in Force Test Probe C Compliant With IEC 61032 For IP3X Safety Inspection 0

Technical Parameters

Parameters /Model	SN2210-3T
Name	Test rod probe C with force
Test Rod Diameter	Ф2.5^+0.05 ₀ (mm)
Stop Face Diameter	Ф35±0.2 (mm)
Handle Diameter	Ф10 (mm)
Test Rod Length	100±0.2 (mm)
Built-in Force	3N force

Advantages of SN2210-3T Test Probe C

• Built-in stable 3N constant test force, no extra force calibration needed, delivering consistent and repeatable test data for every enclosure barrier inspection.

• Fully standardized dimensional tolerance strictly follows IEC 61032, perfectly matching global certification test requirements for IP3X protection.

• Comes with matched connecting wire to support live contact safety verification, one probe meets two core test demands at the same time.

• Wide compatible application range: household appliances, audio-visual equipment, low-voltage fittings and power supply products, applicable to lab R&D test and and factory batch inspection.

3N Built-in Force Test Probe C Compliant With IEC 61032 For IP3X Safety Inspection 1
