IEC 62196-1 Modular Integrated Information Safety Analyzer For EV Charging Connector

IEC 62196-1 Modular Integrated Information Safety Analyzer For EV Charging Connector

Brand Name: Sinuo
Model Number: SN6872F
MOQ: 1
Price: Customized
Payment Terms: T/T
Supply Ability: 10 Sets/Month
Detail Information
Place of Origin:
China
Certification:
Calibration
AC Rated Output:
5KV / 100mA
DC Rated Output:
6KV/10mA
Insulation Resistance Range:
1.000MΩ ~ 50.00GΩ (2500V Test Voltage)
Earth Continuity Rated Output:
32A / 600mΩ
Contact Leakage Current:
0.00~20.00mA, 7 Standard MD Human Simulation Circuits
Built-in Load Power Capacity:
0 ~ 6000W Variable Frequency Power
Packaging Details:
Plywood Case
Supply Ability:
10 Sets/Month
Product Description
IEC 62196-1 Modular Integrated Information Safety Analyzer For EV Charging Connector

Product Information

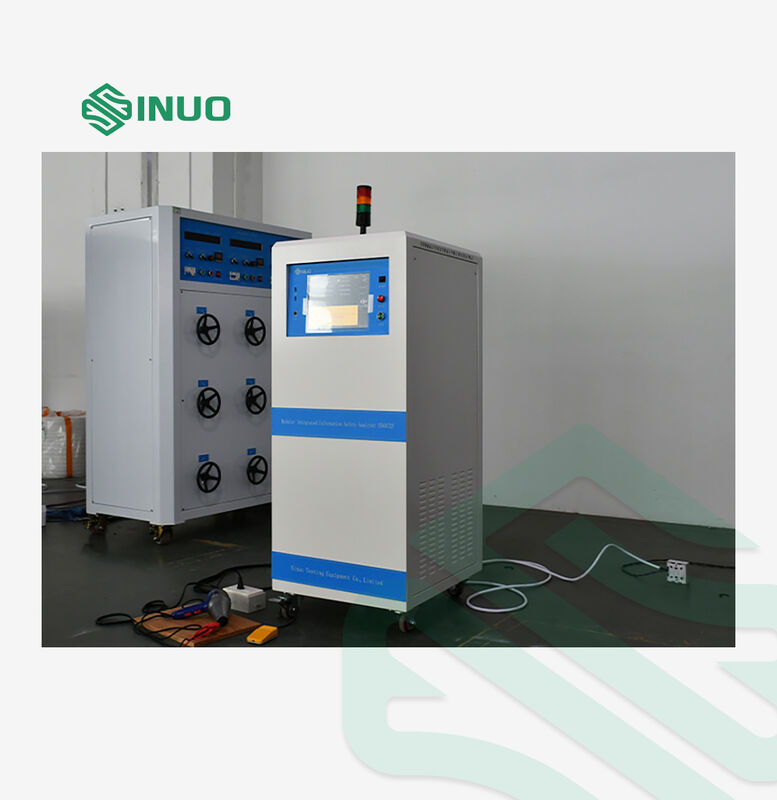

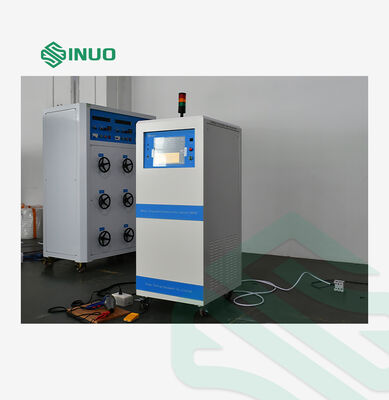

This all-in-one safety tester integrates multiple electrical safety test functions with a built-in variable frequency power supply. It can conduct comprehensive safety performance tests for EV charging plugs, charging guns and EV charging piles, covering withstand voltage, insulation, earth continuity, leakage current and load power detection. The equipment meets IEC 62196 and IEC 60335 international standards, supporting automatic testing and data interconnection for EV manufacturers and certification labs. Customized test solutions are offered to fit your EV product testing requirements.

IEC 62196-1 Modular Integrated Information Safety Analyzer For EV Charging Connector 0
Product Features
  1. New global modular integrated safety & information analyzer with modular safety test functions and digital interconnection capability. It supports data collection, storage, analysis and transmission, serving as the optimal testing solution for smart factories.

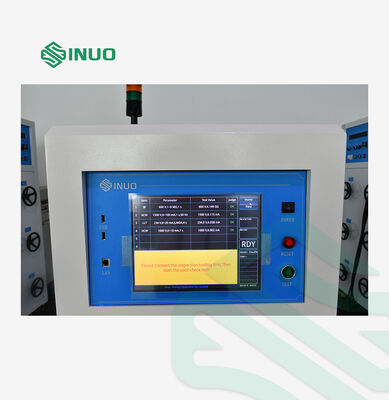

  2. 12-inch full-color touch screen with built-in touch keyboard for fast input operation
  3. Self-developed test system software to fully meet intelligent testing demands
  4. Local storage of test data, compatible for interconnection with MES and other information management systems
  5. Accuracy of main test items: 1%; power test accuracy: 0.2%

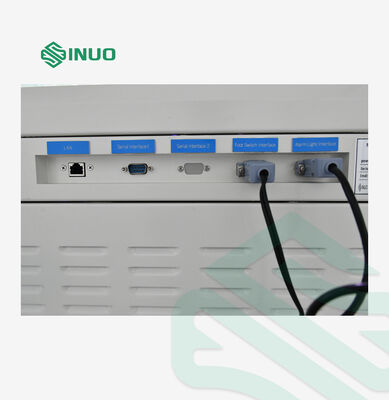

  6. Multiple communication interfaces: Wi-Fi, Ethernet port, USB, RS232, RS485, CAN
IEC 62196-1 Modular Integrated Information Safety Analyzer For EV Charging Connector 1
  1. Modular Design: Card-type design for each functional module, with optional multi-functions and customizable modular functions, building an innovative sales and service system.
  2. Parallel Testing: Withstand voltage, insulation and earth continuity tests can run simultaneously, greatly shortening total test time and boosting efficiency.
  3. Fault Self-Diagnosis: Displays root causes of equipment faults. Combined with remote upgrade and modular structure, it enables fast troubleshooting.
  4. Remote Upgrade: Remotely install the latest software version to resolve operational issues and update customized functional requirements.
  5. Fast Discharge: Adopts patented fast discharge technology to complete discharge of DUT within 50ms, with built-in power supply.
  6. High-Voltage Protection GFI: Real-time circuit monitoring; automatically cuts off high-voltage output once human contact with high-voltage circuit is detected to prevent electrical contact hazard and ensure operator safety.
  7. Wi-Fi Function: Supports connection to wireless networks and mobile hotspots for data transmission, remote diagnosis, remote upgrade and other network-based operations.
  8. Built-in Power Source: Integrated variable frequency power supply outputs voltage and frequency as required for testing. Standard built-in power capacity is up to 6KVA; higher power is customizable.
  9. Arc Detection: Detects abnormal current loops of DUT to screen out defective products with obvious short circuits.
  10. Barcode Scanning: Supports test start and test group adjustment via barcode scanning; barcodes link with test data for convenient data management and analysis.
  11. Data Management: Displays real-time statistical data in charts for easy data analysis and management. Compatible with databases and capable of docking with MES and other information systems.
IEC 62196-1 Modular Integrated Information Safety Analyzer For EV Charging Connector 2
Model & Core Test Items
Model AIP6872F
Supported Test Items AC Withstand Voltage (ACW), DC Withstand Voltage (DCW), Insulation Resistance (IR), Earth Resistance (GB), Leakage Current (LC), Load Power (PWR), Low Voltage Startup (STR)
Built-in Functions 5KVA Variable Frequency Power Supply, 6KVA Transformer
Basic Accuracy 1%
AC Withstand Voltage
Rated Output 5KV / 100mA
Output Voltage Range 100 ~ 5000V
Voltage Accuracy ±(1%×Set Value + 2 digits)
Current Measurement Range 0.00 ~ 100.00mA
Current Measurement Accuracy ±(1%×Reading + 5 digits)
Time Resolution 0.1s
DC Withstand Voltage
Rated Output 6KV / 10mA
Output Voltage Range 200 ~ 6000V
Voltage Accuracy ±(1%×Set Value + 2 digits)
Current Measurement Range 0.00 ~ 10.00mA
Current Measurement Accuracy ±(1%×Reading + 5 digits)
Insulation Resistance
Rated Output 2500V / 50GΩ
Resistance Measurement Range 1.000MΩ ~ 50.00GΩ
Resistance Measurement Accuracy ±(7%×Reading + 3 digits) (1.000MΩ~999.9MΩ@200-500V)±(15%×Reading + 3 digits) (10.00GΩ~50.00GΩ@1000-2500V)
Discharge Time < 100ms
Earth Resistance
Rated Output 32A / 600mΩ (64A)
Output Current Range 1.00 ~ 32.00A (64A)
Resistance Measurement Range 0.1 ~ 600mΩ
Resistance Measurement Accuracy ±(1%×Reading + 3 digits)
Contact Leakage Current
Test Probe & Standards 7 standard human body simulation circuits (MD A-G), supports GB12113/IEC60990, GB4706.1/IEC60335-1, UL60335, etc.
Test Voltage Range 0.0V ~ 300.0V AC
Current Measurement Range 0.00mA ~ 20.00mA
Current Measurement Accuracy ±(1%×Reading + 3 digits) (DC, 15Hz≤f≤100kHz)
Load Power
Power Range 0.0 ~ 6000W
Power Measurement Accuracy ±(0.1%×Reading + 0.1%×Range) (PF > 0.9)±(0.4%×Reading + 0.1%×Range) (PF ≤ 0.9)
Low Voltage Startup
Current Measurement Range 0.000 ~ 9.999A / 10.00 ~ 20.00A
Current Measurement Accuracy ±(0.1%×Reading + 0.1%×Range)
General Specifications
Communication Interfaces Wi-Fi, Ethernet Port, USB, RS232 (optional RS485, CAN)
Dimensions (W×H×D) 550×1360×600 mm (with casters, excluding warning light)
Standard Accessories Test Box, Test Clamp, Foot Switch, Warning Light, User Manual
