IEC 62196-1 Natural Ventilation Aging Oven For EV Charging Parts Aging Test

Detail Information

Place of Origin:

China

Certification:

Calibration

Internal Chamber Size:

500L×500W×450H

Overall Dimension:

950L×650W×1130H

Test Temperature Range:

RT ~ 300°C

Temperature Controller:

PID Intelligent Control

Heating Power (KW):

2.4

Temperature Fluctuation:

≤2°C (below 300°C)

Temperature Uniformity:

≤3°C (below 300°C)

Timer Controller:

0~24hr / Programmable

Packaging Details:

Plywood case

Supply Ability:

Product Description

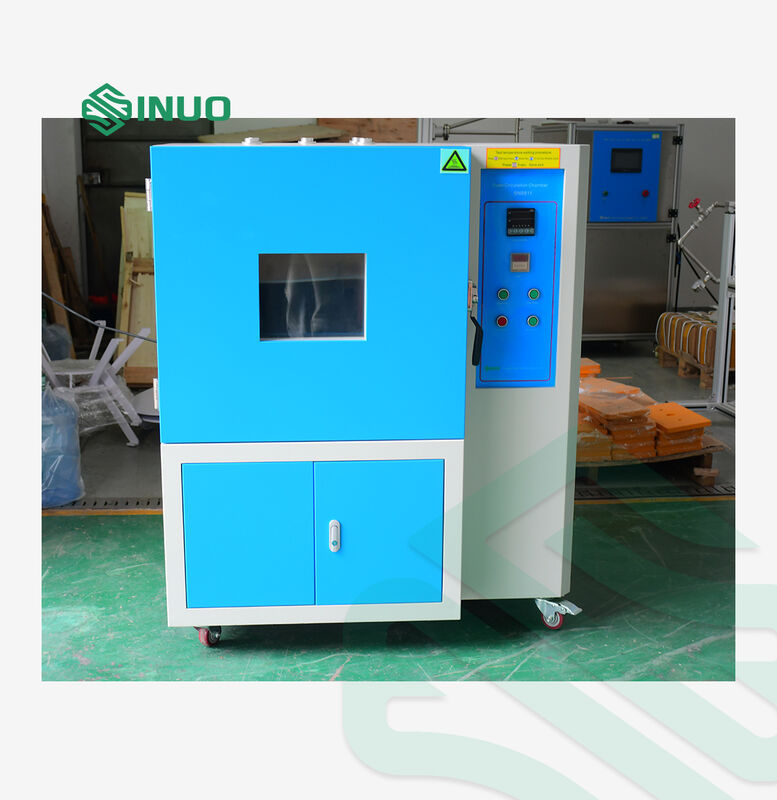

IEC 62196-1 Natural Ventilation Aging Oven For EV Charging Parts Aging Test

Product information

The natural ventilation aging oven is mainly used for natural ventilation thermal aging tests of wires, cables, plastics and rubber materials.

It fully complies with IEC 62196-1:2025 Clause 15 and IEC 60811 series international standards.

This equipment can also perform high-temperature tests in laboratories of industrial & mining enterprises, research institutions and universities.

IEC 62196-1 Natural Ventilation Aging Oven For EV Charging Parts Aging Test 0

Technical Parameters

Internal Chamber Size	500L×500W×450H(mm)
Overall Dimension	950L×650W×1130H(mm)
Test Temperature Range	RT ~ 300°C
Air Exchange Rate	8~20 times/hour (adjustable via outlet size)
Temperature Fluctuation	≤2°C (below 300°C)
Temperature Uniformity	≤3°C (below 300°C)
Effective Working Area	200×200×150mm
Timer Controller	0~24hr / programmable
Temperature Controller	PID intelligent control
Heating Power (KW)	2.4
Power Supply (V)	220V
Net Weight (Kg)	90

Natural Ventilation Aging Oven Core Advantages

Meets Global International Test Standards

This natural ventilation aging oven complies with IEC 62196-1:2025 and IEC 60811 international standards, ideal for thermal aging tests of EV charging connectors, wires, plastic and rubber materials.
Accurate & Stable Test Performance

It features precise PID temperature control, adjustable air exchange rate and stable temperature uniformity, which delivers accurate and repeatable test data for product certification and material research.
Wide Applicability for All Labs

Suitable for EV manufacturers, cable factories, research institutes and universities, one machine meets all your high-temperature aging testing demands.

IEC 62196-1 Natural Ventilation Aging Oven For EV Charging Parts Aging Test 1
