IEC 62368-1 Electric Vehicle Label Marking Abrasion Test Apparatus

IEC 62368-1 Electric Vehicle Label Marking Abrasion Test Apparatus

Brand Name:	Sinuo
Model Number:	SN1101
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 Sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration

Standartd:

IEC 62368-1

Test Stroke:

10-60mm, Adjustable

Speed:

5-60/min, Adjustable

Counter:

0-99999999 Adjustable

Voltage:

220V, 50Hz

Specification:

Two Axes

Packaging Details:

Plywood case

Supply Ability:

30 Sets/month

Product Description

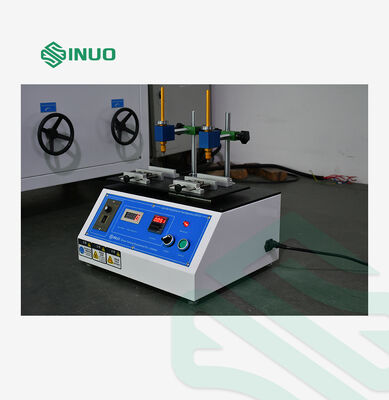

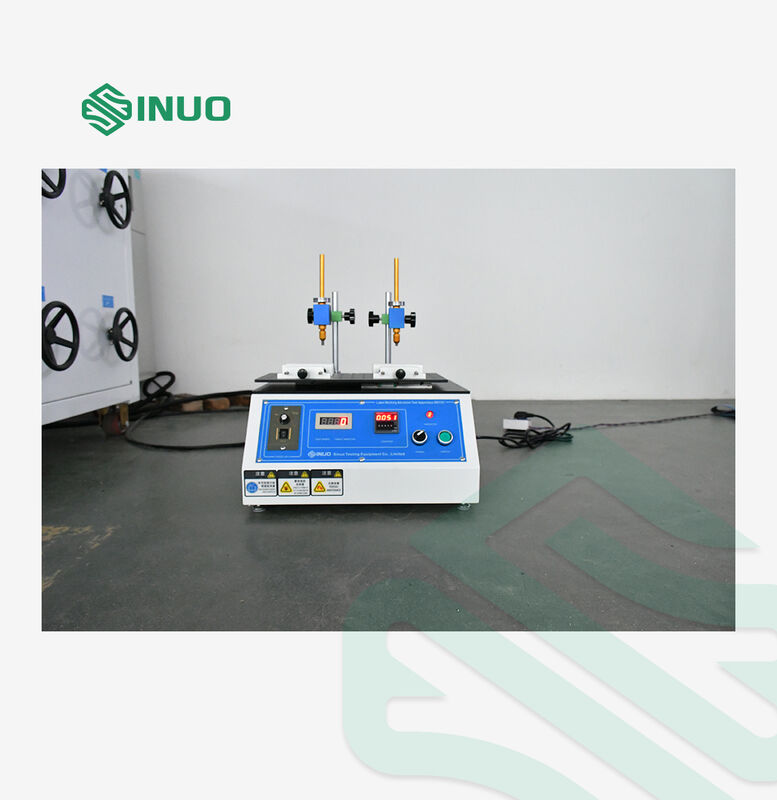

IEC 62368-1 Electric Vehicle Label Marking Abrasion Test Apparatus

Product information

This label marking abrasion test apparatus conforms to IEC 62368-1 clause Annex F.3.10.2 and Annex F.3.10.3, etc.

The Alcohol Rubber Rubbing Tester is suitable for all kinds of plastic injection, silk screen surface for abrasion test, such as: computer, mobile phone (PDA), MP3, CD/VCD/DVD, cordless telephone, electronic dictionary and other surface and printing surface.

IEC 62368-1 Electric Vehicle Label Marking Abrasion Test Apparatus

Technical Parameters

Specification	Two axes (can be used as both rubber and alcohol friction, pencil hardness test can also be added)
Test stroke	10-60mm, adjustable(Manually adjustable)
Speed	5-60/min, adjustable
Counter	0-99999999 adjustable
Weight	Two pieces of each 50, 100, 300, 500g Can be customized according to user requirements
Voltage	220V, 50Hz
Machine size	500300550mm

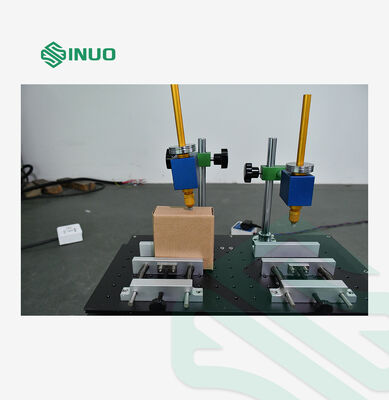

Accessories	Alcohol rubbing fixture 2 pcs, rubber rubbing fixture 2 pcs, pencil friction fixture 2 pcs, cotton cloth, eraser 2 pcs

Marking Abrasion Tester Key Features

Multi-functional & expandable
Dual-station for alcohol & rubber rubbing; pencil hardness test is optional. One unit fulfills various abrasion tests and saves lab cost & space.
Flexible adjustable parameters
Test stroke (10–60mm) and speed (5–60 cycles/min) are adjustable to satisfy diverse test standards.

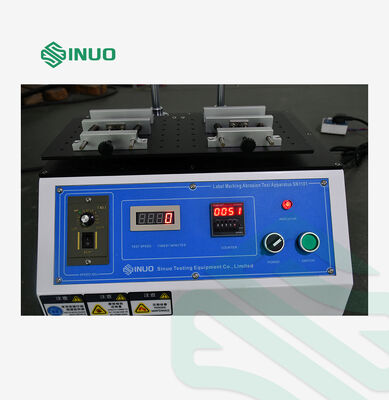

Accurate cycle counter
Built-in 0–9999999 counter with auto-stop, eliminating manual errors and guaranteeing repeatable, traceable results.
Customizable test weights
Standard weights: 50g, 100g, 300g, 500g (2 pcs each). Custom loads available for precise pressure control.
Full set of standard accessories
Supplied with rubbing fixtures, cotton cloth and erasers, ready for immediate use without extra parts.
International standard compliance
Conforms to IEC 62368-1 Annex F marking durability test. Data supports certification, QC and R&D verification.
Stable & easy to operate
Solid structure with intuitive operation. Operators can get started quickly with little training.
