| Brand Name: | Sinuo |
| Model Number: | SN2601 |
| MOQ: | 1 |
| Price: | Customized |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets per month |

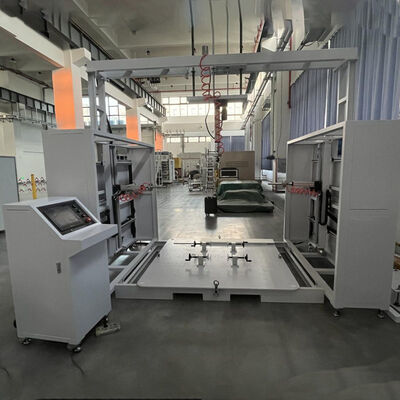

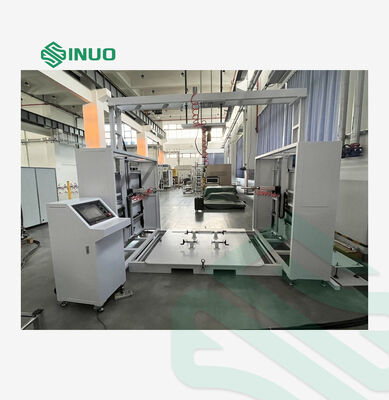

This static load test bench mainly used for mechanical loading tests and related research tests of low-voltage metering boxes, prefabricated substations and electrical equipment enclosures. It can conveniently conduct mechanical property tests on various types of metering boxes, including metal metering boxes, non-metallic metering boxes and cable distribution boxes.
It adopts integrated intelligent PLC central control with touch screen for display and operation. Test data can generate force-time curves. Parameters are set via the touch screen interface, and the whole testing process runs automatically. Pressure can be applied automatically from the side and top. Compatible with specimens of various sizes, it is reliable preferred equipment for testing institutions and laboratories.
This Static Load Test Bench is designed and manufactured in accordance with the below international & industry standards:

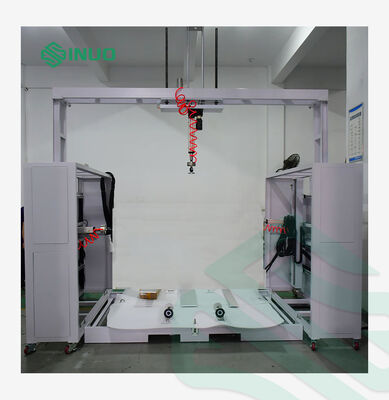

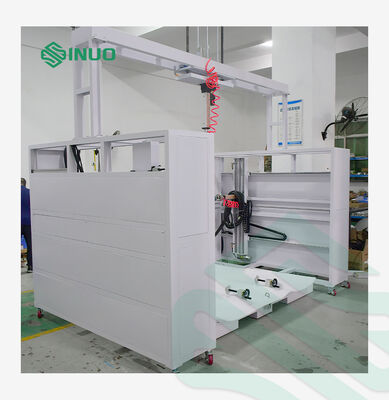

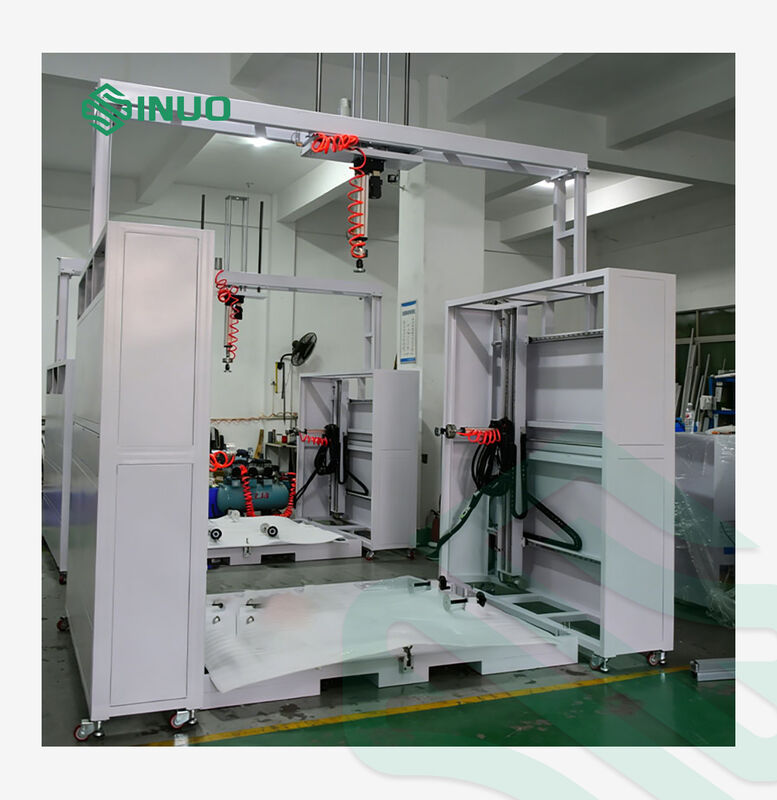

This test bench adopts a semi-enclosed structure, consisting of a horizontal loading section and a vertical loading section. Each loading actuator can move freely within the plane with 3 degrees of freedom. The three actuators jointly realize mobile loading with 8 degrees of freedom.
The crossbar height can be adjusted in stages via mounting holes. The base fixture can move forward, backward, left and right for clamping. It is equipped with a bench vice, and small specimens can be rotated with firm and reliable fixation.
Custom clamping blocks are configured for different products to facilitate securing. Different test pressing plates are equipped according to standards for various test items.
The equipment structure diagram is shown below:
| Power Supply | AC 220V / 50Hz |
| Control & Operation | Intelligent PLC control, operated via color touch screen |
| Driving System | Force applied by servo motor + electric cylinder; position adjustment driven by motor |
| Transmission System | Precision ball screw + linear guide rail |
| Equipment Frame Structure | Platform + semi-enclosed structure. Left and right horizontal manipulators are mounted on the semi-enclosed frame; vertical manipulator is installed on the crossbar |
| Allowable Specimen Dimension Range |
Single-phase 15-meter box: H1100*W1445*D1700mm Single-phase 1-unit assembled meter box: H520*W210*D140mm
|
| Test Items |
|
| Main Performance Parameters for Test Items 1, 2, 3 & 4 | |
| Loading Mechanism | 2 horizontal channels, 1 vertical channel |
| Movable Range |
3 axes with 8 degrees of freedom Left horizontal manipulator: moves up, down, forward and backward, applies force via left-right travel Right horizontal manipulator: moves up, down, forward and backward, applies force via left-right travel Vertical manipulator: moves up and down to apply force |
| Horizontal Electric Cylinder Stroke | 400 mm |
| Loading Mode | Electric drive |
| Force Application Range | Vertical: 0–10 kN; Horizontal: 0–2 kN |
| Force Resolution | 0.1 N |
| Force Application Speed | 0.1–50 mm/s |
| Displacement Resolution | 0.01 mm |
| Force Value Display | Real-time display on touch screen with force-time curve interface for real-time monitoring |
| Test Indenter | 3 pcs of 10 mm Test Indenters |
| Static Load Resistance Test(IEC 61439-5, Clause 10.2.101.2) |
(Schematic Diagram of Pressing Plate) |
| Main Parameters of Torsion Resistance Test (IEC 61439-5, Clause 8.2.101.1.3 & Clause 10.2.101.4) |
(Schematic Diagram of Square Tube) 3. Apply a force of 2×1000N via the left and right horizontal manipulators, with a force holding duration of 30 seconds. |
| Main Parameters of Mechanical Strength Test for Doors (IEC 61439-5, Clause 10.2.101.6; Q/GDW11008-2013, Clause 7.2.2.1.2; IEC 61439-5, Clause 8.2.101.3) |
1. Apply a force of 50N (450N) or other specified load on the top edge of the door at a position 300mm away from the hinge, hold the force for 3 seconds or other required duration. 2. Heightening fixture dimensions: length 1100mm, height 120mm, width 120mm. 3. Install the test specimen with backboard fitted.
(Schematic Diagram of Backboard) |
| Main Parameters of Axial Force Resistance Test for Metal Inserts (IEC 61439-5, Clause 10.2.101.7) |
(Table 102)
(Universal lifting ring + weight hook) |
| Rigidity Test for Cabinets & Racks (IEC 60297-1 Clause 5.2.2; Q/GDW11008-2013 Clause 7.2.2.1.1; IEC 61439-5 Clause 8.2.101.1.1 Item b) |
(Schematic Diagram of Pressing Plate) |
| Static Load Test for Meter Box Brackets |
Corresponding standard: IEC 61439-5 (Mechanical Strength of Enclosures for Low-voltage Switchgear and Controlgear Assemblies) 1. Equipped with 15 pieces of 40N weights, complete with soft steel wire hooks |
| Compliant Standards |
|
| Sample Clamping Fixture |
Adopts a large baseplate with multi-hole screw mounting positions to fit more types of test specimens.Rotatable from 4° to 90° with mechanical positioning.
(Schematic Diagram of Mounting Baseplate) |
| Overall Equipment Dimensions |
Equipment Length: 3.3m, Width: 2.15m, Height: 3.1m
|
The system adopts a modular design philosophy and is manufactured in strict compliance with standard requirements. Standardized design and components are utilized wherever possible to deliver optimized performance and reliable technical support. Controlled by Mitsubishi PLC, the entire system features high reliability and intelligent operation. It boasts clear functional logic, compact structure, attractive appearance and rational layout, facilitating maintenance and daily upkeep. The design and manufacture of the equipment meet customers’ general technical specifications. The system is divided into the following units:
Sample bearing platform:
The load-bearing platform is integrally constructed with reinforced support steel frames and thick steel plates. The specimen clamping mechanism and moving assemblies for left & right manipulators are mounted on top of the platform.
Force application mechanism:
The force application system consists of three manipulator sets: left horizontal manipulator, right horizontal manipulator and vertical manipulator. Each set is composed of a servo motor paired with a precision electric cylinder. A high-precision force sensor is fitted at the front end of each manipulator. The pressing head adopts an angled floating universal joint, which enables automatic self-centering to ensure full contact and stable force loading.
Transmission mechanism:
This section consists of moving mechanisms matched with the force application assembly for pressing test specimens. The respective degrees of freedom are illustrated in the figure below:
Control system:
This unit is mainly composed of PLC processor, control circuits and core control components. All electrical control components of the system are centrally installed inside one cabinet equipped with ventilation exhaust devices.
This unit adopts Mitsubishi PLC for intelligent control.
Equipped with self-developed testing software; operation can be realized via simple parameter settings.
