IEC 62196-1 Creepage Distance Test Cards For Electric Vehicle Charging Connector

IEC 62196-1 Creepage Distance Test Cards For Electric Vehicle Charging Connector

Brand Name:	Sinuo
Model Number:	SN2134
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	90 Sets/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration

Standard:

IEC62196-1:2025

Product Name:

Creepage Distance Test Cards

Product Material:

Stainless Steel

Test Sample:

Electrical Clearance Of Appliances

Packaging Details:

Carton

Supply Ability:

90 Sets/Month

Product Description

IEC 62196-1 Creepage Distance Test Cards For Electric Vehicle Charging Connector

Product Information

This creepage distance test gauge complies with IEC 62196-1:2025 Clause 28, IEC 62196-3:2026 Clause 28, as well as IEC 60884-1, IEC 60669-1.

It is applicable to test conductive components of electrical appliances. The gauge is used to verify the shortest creepage path between two conductive parts, or between a conductive part and the accessible surface of the appliance, measured along the surface of insulating materials. All dimensions and specifications are manufactured strictly in accordance with relevant standard requirements.

Test Principle

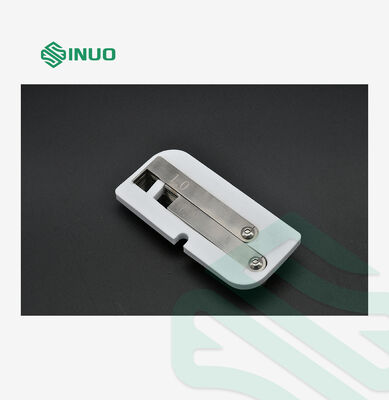

Stainless steel claw-tooth type, to verify the creepage distance between conductive components.

Techinical Parameters

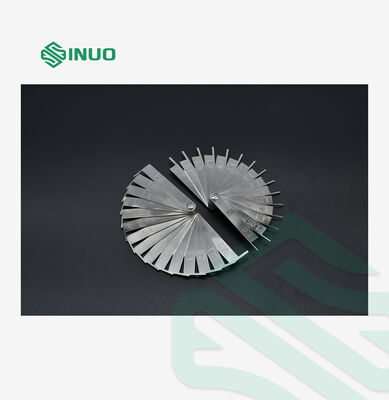

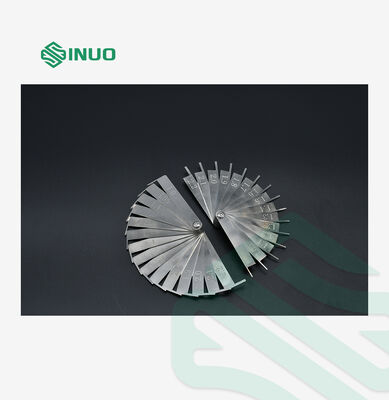

Sizes	1.0, 1.05, 1.1, 1.2, 1.25, 1.3, 1.4, 1.5, 1.6, 1.7, 1.8, 1.9, 2.0, 2.1, 2.2, 2.4, 2.5, 2.8, 3.2, 3.6, 4.0, 4.2, 4.5, 5.0, 5.6, 6.3, 7.1, 8.0, 9.0, 10 mm

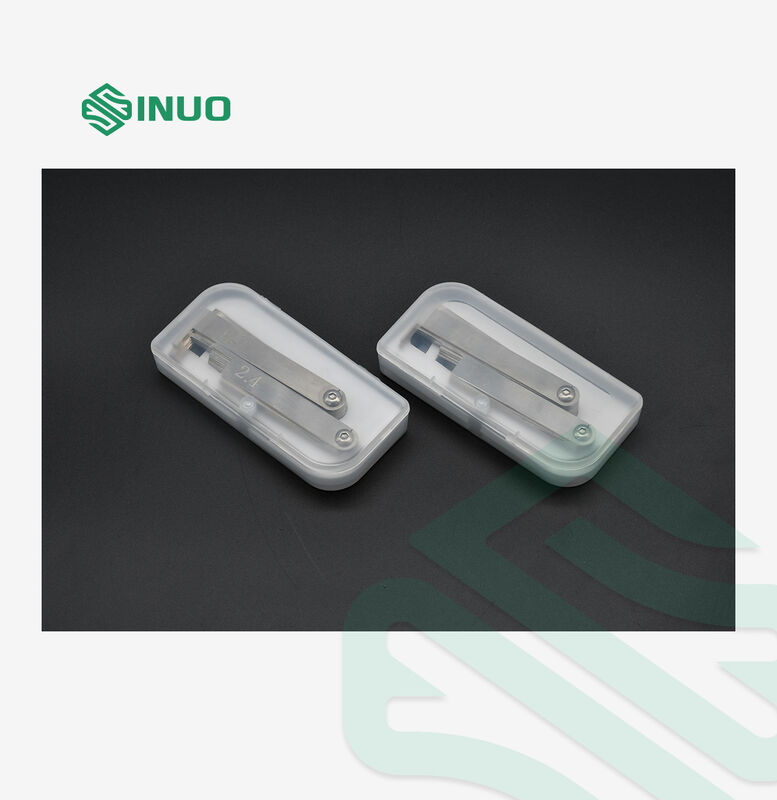

Specifications	One set of straight type and one set of curved type
Material	Stainless steel plate
