IEC 62133 Battery Crush and Nail Penetration Test Chamber for Lithium Safety Testing

With the rapid development of electric vehicles, energy storage systems, and lithium-ion battery applications, ensuring battery safety has become a critical challenge for manufacturers worldwide.

Battery crush and nail penetration tests simulate extreme mechanical abuse conditions to evaluate battery resistance against deformation, internal short circuits, and thermal runaway risks.

This testing helps battery manufacturers and laboratories:

• Validate battery safety performance before mass production
• Optimize cell and battery pack structural design
• Reduce risks caused by mechanical damage
• Achieve compliance with international battery safety standards
• Improve reliability of EV and energy storage systems

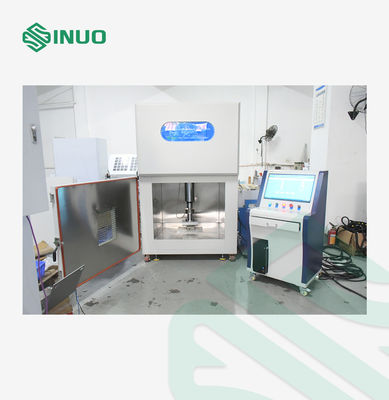

The Battery Crush and Nail Penetration Test Chamber is designed for evaluating the safety performance of lithium-ion batteries, battery cells, and EV battery modules under extreme mechanical abuse conditions.

During transportation, charging, accidents, or thermal runaway events, lithium batteries may suffer from external impact, compression deformation, or internal short circuit risks. Crush and nail penetration tests simulate these hazardous conditions to verify battery structural safety, voltage response, deformation resistance, and thermal behavior.

This test system is widely used by lithium battery manufacturers, EV battery suppliers, automotive laboratories, and third-party certification organizations for battery safety evaluation and compliance testing.

The equipment complies with international battery testing standards including SAE J2464, IEC 62133, and ISO 12405-4:2018, providing reliable test data for battery safety validation.

The battery sample is compressed using a controlled force or deformation value to simulate mechanical damage caused by vehicle collision or external pressure.

During testing, the system monitors:

• Crushing force
• Displacement deformation
• Battery voltage change
• Temperature variation

The test automatically stops when the preset condition is reached, such as:

• Required compression force
• Maximum deformation
• Voltage drop to specified value

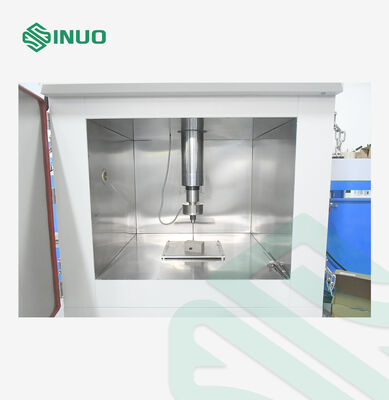

A steel nail penetrates the battery cell at a controlled speed to simulate internal short circuit conditions.

The system records:

• Voltage change
• Temperature increase
• Penetration displacement
• Test curve data

This helps evaluate battery resistance against thermal runaway and safety hazards.

The system provides flexible test control with multiple automatic stop criteria, ensuring accurate and reliable battery safety evaluation.

Supported Stop Conditions:

• Pressure control
• Displacement (deformation) control
• Voltage monitoring control

Multiple conditions can be combined according to different battery testing requirements. The test will automatically stop when any preset condition is reached, improving testing efficiency and safety.

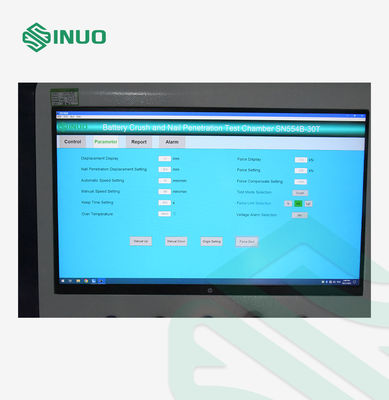

The integrated control system continuously monitors and records key test parameters throughout the process.

Real-Time Monitoring Parameters:

• Crushing force
• Displacement deformation
• Battery temperature
• Voltage variation
• Test speed

All test data, curves, and results can be saved, compared, and exported for further analysis and reporting.

Designed specifically for lithium battery abuse testing applications, the chamber integrates multiple safety protection features to minimize operational risks.

Safety Features Include:

• Explosion-proof observation window
• Automatic pressure relief structure
• Smoke exhaust system
• Emergency stop switch
• Electrical overload protection

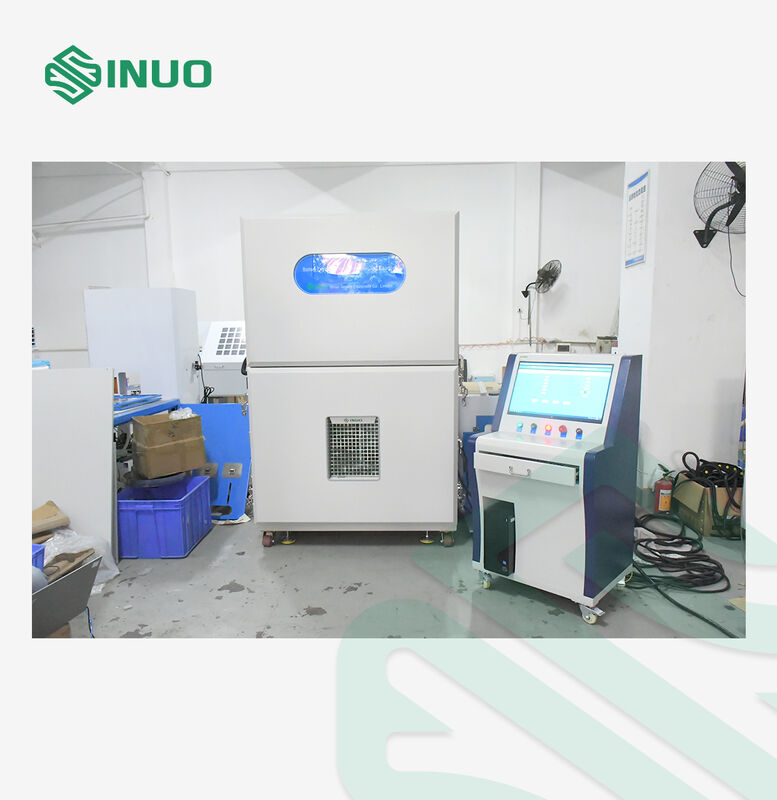

The control system is separated from the test chamber, allowing operators to conduct battery crush and nail penetration tests from a safe distance.

This remote operation design helps protect personnel from potential hazards such as:

• Battery rupture
• Smoke emission
• Thermal runaway events
