IEC 62196 EV Connector Withdrawal Force And Latching Verification Test Equipment

IEC 62196 EV Connector Withdrawal Force And Latching Verification Test Equipment

Brand Name:	Sinuo
Model Number:	SN1013B
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	30 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Applied Standard::

IEC 62196-1 Ed.4 CDV 2020

Applied Clauses::

Clause 16.16

Withdrawal Weight:

1kg

Insertion Weight:

9.2kg

Auxiliary Weight:

0.8kg

Drop Height:

50MM

Packaging Details:

Plywood Case

Supply Ability:

30 sets per month

Product Description

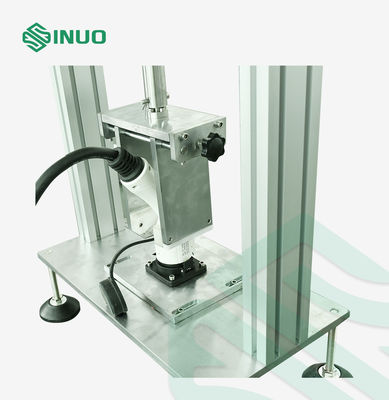

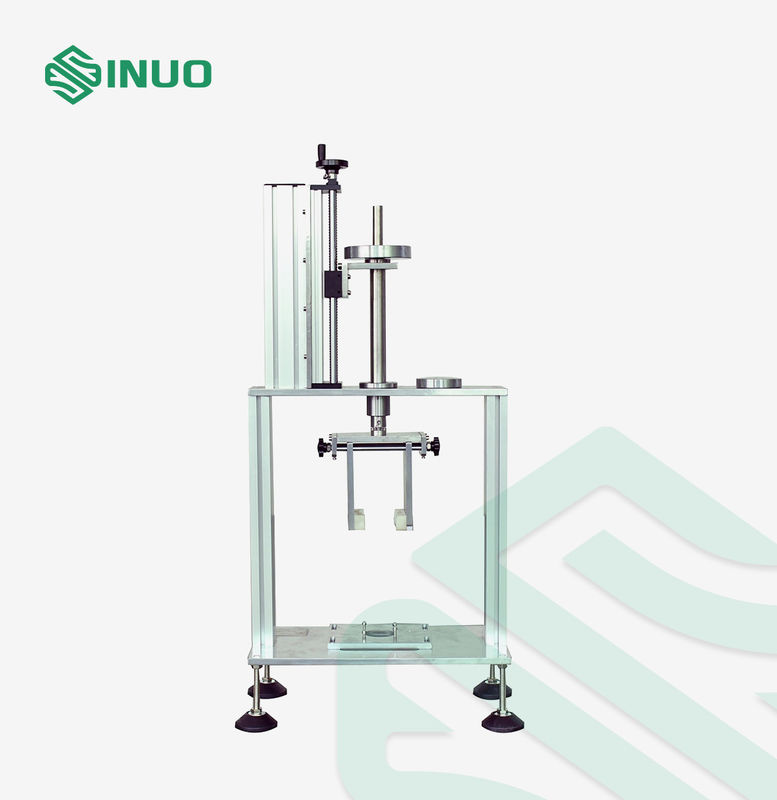

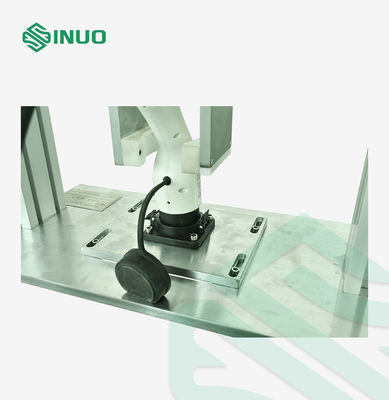

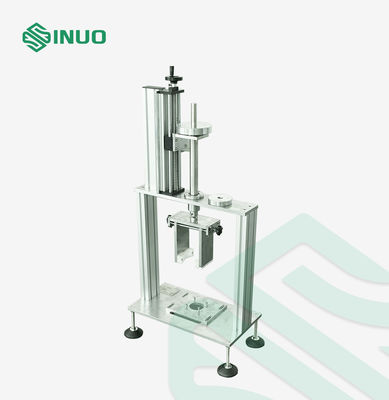

IEC 62196 EV Connector Withdrawal Force And Latching Verification Test Equipment

Product Overview

The IEC 62196 EV Connector Withdrawal Force And Latching Verification Test Equipment is designed to verify the mechanical performance of EV charging plugs, sockets, and vehicle connectors according to IEC 62196-1:2020 Clause 16.16.

It tests insertion force, withdrawal force, and latching performance by applying specified weights. The equipment is suitable for EVSE laboratories, connector manufacturers, automotive testing centers, and certification facilities. Customized test plugs are available for different AC/DC EV charging connectors.

Features & Benefits

Designed according to IEC 62196-1:2020 Clause 16.16
Verifies EV connector insertion and withdrawal mechanical performance
Suitable for socket-outlets, vehicle inlets, and charging plugs
Adjustable weight system for accurate force application
Supports customized test fixtures for different EV charging interfaces
Ideal for EVSE compliance testing and product certification laboratories

Technical Parameters

Applied Standards	IEC 62196-1 Ed.4 CDV 2020
Applied Clauses	Clause 16.16
Withdrawal Force weight	1kg
Insertion Force Weight	9.2kg
Insertion Auxiliary Weight	0.8kg
Equipment Test plugs	Customized
A. Insertion force test: 1. A fixed insertion force device for socket or appliance input socket 2. Force weight kit: 9.2kg, auxiliary weight 0.8kg 3. Drop height limit of auxiliary weight: 50mm 4. 2kg weight
B. Withdrawal force test: 1. Shared the mechanical part of SN1013, based on IEC 62196-1 :2020 Figure 13 2. Shared the test plugs for SN1013 3. Counterweight, make the lifting accessories (gauge + hook + weight) to be 9kg, and the supplemental weight is 1kg 4. 1kg weight
