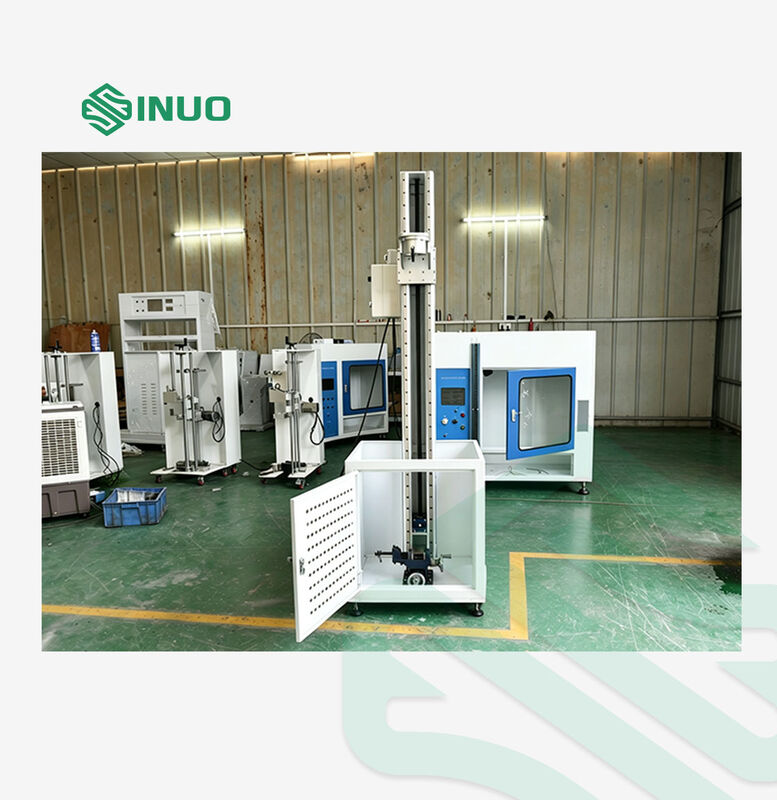

ISO3127 Vertical Impact Tester for Thermoplastic Pipes with 0-1000mm Drop Height

The SN2206T Vertical Impact Test Apparatus is designed for evaluating the external impact resistance of thermoplastic pipes according to ISO3127 standard. It uses a vertical falling weight impact method to assess pipe strength and durability under sudden impact conditions.

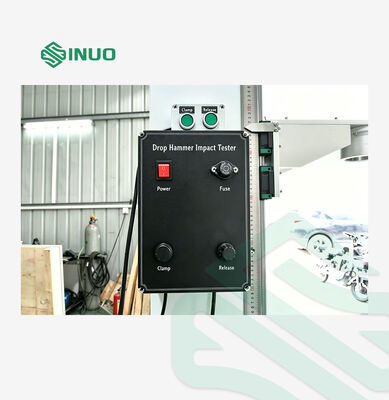

Equipped with an electric lifting system, electromagnetic release mechanism, and X/Y adjustable fixture, the tester provides accurate impact positioning, easy operation, and repeatable test results for plastic pipe manufacturers, laboratories, and quality inspection organizations.

The tester adopts a free-falling impact method, converting gravitational potential energy into impact energy to apply a controlled impact force on the pipe specimen.

Designed according to ISO3127 requirements, suitable for evaluating the external impact resistance of thermoplastic pipes.

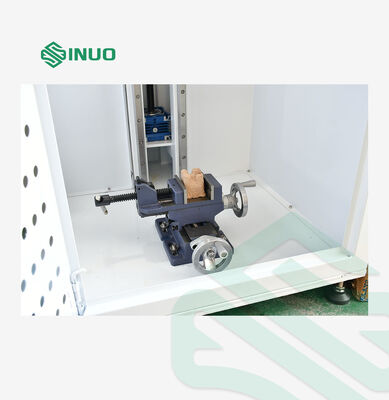

The integrated X/Y adjustable fixture allows operators to set different impact locations according to specimen requirements.

The electric lifting system enables quick and precise adjustment of drop height with a positioning accuracy of ±1 mm.

The rigid sheet metal frame with reinforced base plate ensures stable operation during impact testing.

The SN2206T Vertical Impact Test Apparatus is suitable for:

According to the vertical falling weight impact method, the impact element is lifted to a specified height and released by an electromagnetic mechanism. The impact weight falls vertically and strikes the pipe specimen.

The generated impact energy is controlled by the falling height and impact mass, allowing evaluation of the specimen’s resistance against external mechanical impact.
