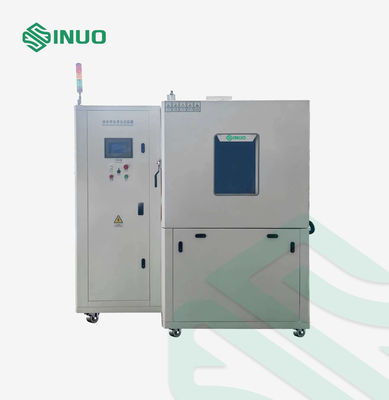

ISO16750-4 Thermal Shock Test Chamber for Vehicle Parts Ice Water Splash Testing

ISO16750-4 Thermal Shock Test Chamber for Vehicle Parts Ice Water Splash Testing

Brand Name:	Sinuo
Model Number:	SN4421
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Temperature Range:

RT+10℃～150℃

Water Temperature:

0~+4℃

Immersion Depth:

76±5mm (Height Control Of The Overflow Of The Water Tank)

Test Cycles:

0~100 Times，adjustable

Basket Load:

≥50kg (Automatically Controllable Lift)

Test Hole:

100mm Diameter With Silicone Stopper

Packaging Details:

Plywood Case

Supply Ability:

10 sets per month

Highlight:

ISO16750-4 Compliant Thermal Shock Test Chamber

Dual Testing Modes Automotive Ice Water Splash Test Equipment

Precision Temperature Control Vehicle Parts Testing System

Product Description

ISO16750-4 Thermal Shock Test Chamber for Vehicle Parts Ice Water Splash Testing

Product Overview

The Automotive Ice Water Splash Test Equipment is a specialized environmental testing system designed to evaluate the resistance of vehicle components against thermal shock caused by cold water splash and immersion conditions.

According to ISO 16750-4:2010 Clause 5.4 and VW80000 requirements, this test system simulates winter driving conditions where heated automotive components are suddenly exposed to icy water from wet roads.

By repeatedly applying controlled temperature exposure and ice water impact, the equipment helps identify potential failures such as material cracking, sealing damage, and thermal expansion-related defects in automotive electrical and mechanical components.

It is widely used by automotive manufacturers, EV component suppliers, vehicle testing laboratories, and research institutes for reliability verification and quality control.

Key Features

Realistic Automotive Thermal Shock Simulation

The system reproduces harsh winter road conditions by heating the test sample and applying rapid ice water splash or immersion tests to evaluate thermal shock resistance.

Dual Testing Modes Available

Supports both:

Ice water splash thermal shock testing
Powered component immersion testing

for comprehensive evaluation of automotive parts.

Precision Temperature and Water Control

The independent heating and cooling systems provide stable control of:

High temperature exposure
Ice water temperature
Spray duration
Test cycle frequency

Standard-Compliant Splash System

The splash nozzle system is manufactured according to automotive testing requirements with SUS316 stainless steel construction, ensuring corrosion resistance and long-term reliability.

Intelligent Touch Screen Operation

A 7-inch color touchscreen controller enables programmable test conditions, real-time monitoring, data recording, and automatic test operation.

Application Areas

The VW80000 Ice Water Splash Test Equipment is suitable for testing:

Application	Testing Purpose
EV Battery Components	Thermal shock and sealing reliability evaluation
Automotive Electrical Parts	Cold water splash resistance testing
Engine Compartment Components	Winter driving condition simulation
Sensors and Electronic Modules	Environmental durability verification
Vehicle Lighting Systems	Thermal expansion and cracking analysis
Automotive Suppliers	Product validation and quality inspection

Test Principle

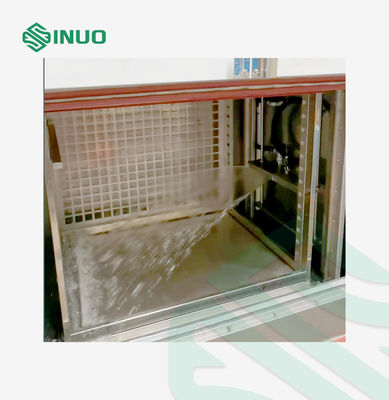

Ice Water Splash Thermal Shock Test

The DUT (Device Under Test) is first heated inside the temperature chamber to a specified temperature.

After reaching the required condition, ice water is sprayed onto the component surface for a controlled duration. The sudden temperature change simulates cold water impact during winter driving.

The test helps detect:

Material cracks caused by thermal stress
Seal failures
Structural damage caused by different expansion coefficients

ISO16750-4 Thermal Shock Test Chamber for Vehicle Parts Ice Water Splash Testing

Immersion Thermal Shock Test

The heated DUT is immersed into an ice water tank while powered on.

The immersion depth is controlled at approximately 76 ± 5 mm, allowing evaluation of waterproof reliability and thermal shock resistance under severe conditions.

1. Dimensions and sample prohibition
Studio size	1000×1000×1000mm (WDH)
Outer Dimensions (Approx)	Approx 2000×1500×2100(mm)(WDH)
Executive standard	M3499-1:2017 ISO 16750-4:2010 VW80000: 2009-10 etc.
2. Technical indicators
Temperature range	RT+10℃～150℃
Temperature deviation	≤2℃
Temperature uniformity	≤2℃ (Above is no-load condition)
Inside temperature rate	Room temperature +10℃～150℃≤45min
Test water temperature	0~+4℃
Water tank temperature uniformity	≤±0.5℃
Water temperature cooling rate	Room temperature～2℃≤30min
Immersion depth	76±5mm (Height control of the overflow of the water tank)
Number of test cycles	0~100 times,adjustable
Basket load	≥50kg (Automatically controllable lift)
Basket volume	≥500500500mm
Sample size	≤500×500×500mm
Ice water splash nozzle pattern	The nozzle and pressure calibration system are manufactured in strict accordance with the specifications of GB/T28046.4-2011:5.4, SUS316 stainless steel, detachable. The display outside the box can control the nozzle flow and other functions
Water spray diagram
Ice Water Splash Nozzle quantity	1PC
Surface-related water volume flow	QA = 3 l/m2 s
Spray time	3s
Test cycles	0~100 times, adjustable
Nozzle to product distance	325±25mm
Test liquid	Deionized water or +5%NaCl+3% Arizona fine dust
Test liquid	Recyclable
Ice water storage tank volume	About 80L
Switching time	≤20s
Power	12KW
Automatic cleaning function	After the test is completed, the pipeline and the sample are automatically cleaned
Other requirements	Self-contained drainage system, automatic protection system for lifting and lowering of the basket, and anti-clogging technology for nozzles
3. Structural characteristics

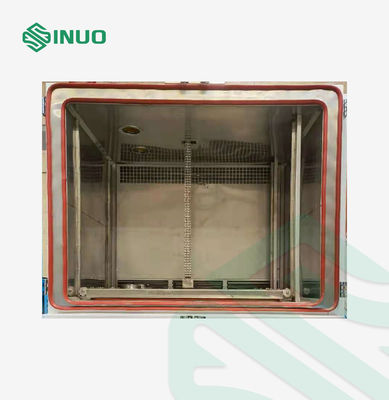

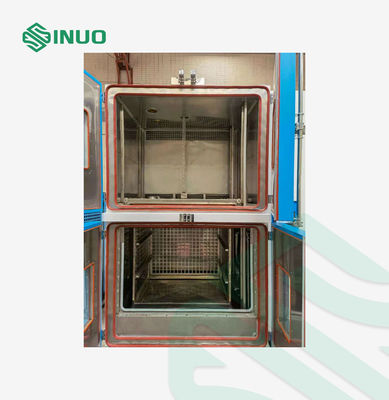

Box material	This equipment adopts an integrated welding forming structure. A. Outer box material: steel plate with plastic spray B. Inner tank: SUS316 stainless steel is used for the whole inner box and the inside of the door
Box door	Single door structure; the door contains observation windows and high temperature resistant sealing strips (double-layer sealing strips) to ensure that the test water and temperature do not leak. Multi-layer vacuum tempered glass, there are lights in the box, and the observation window does not reflect light.
Insulation	Filled with polyurethane foam + glass fiber to ensure thermal insulation performance, about 100mm thick
Test hole	100mm diameter with silicone stopper
Circulatory system	Circulating fan, stainless steel impeller;
Heating system	Heater: Nichrome electric heater Control mode: non-contact equal period pulse width modulation, SSR (solid state relay)
Test water	Adopt circulating water refrigeration system, no coils and stirrers inside and outside the water tank
Water storage tank	SUS316 stainless steel water tank
Water tank structure	The integrated water tank is integrated with the test inner box, the bottom is inclined, easy to clean, and the inside of the water tank is clean and free from obstructions such as coils.
Immersion tank water level control	Water immersion and splashing are the same water tank, and the touch screen can set different water levels to reduce the waste of test liquid
Freeze-free design	No icing phenomenon when tested with tap water or purified water
Water tank replenishment	Mechanical float DN25
Tank drain, overflow	Φ32mmPVC ball valve, Φ32mmPVC pipe
Control panel	Controller, operation button
Cooling System	Adopt French Tecumseh or compressor Condenser: A finned condenser is used to provide a place for cooling and refrigerant to provide cold and heat exchange for the refrigeration system Heat exchanger: titanium alloy heat exchanger (no rust-prone material heat exchanger is allowed) Throttling device: The expansion valve and capillary tube are used to combine and control, as the throttling device of this equipment, so that the state of the refrigerant can be changed after passing through this device
Filtering system	The water supply pipeline is equipped with an easy-to-clean filter to reduce impurities.
Movable casters	Casters: 4 Foot support: 4 fixed foot support
Control System	Thermostat: 7-inch color touch screen controller Operation mode: The test conditions can be programmed arbitrarily within the scope of the test capability Control accuracy: 0.1℃ Control mode: P.I.D automatic control Temperature measurement: platinum resistance PT100
Controller	7" true color touch screen controller: The touch screen can control the temperature in the box, the temperature of the water tank, the flow rate, the water pump and the test time, etc.; the flow rate and temperature are directly displayed on the touch screen, and the automatic constant current and constant temperature are used.
Setting method	English menu, touch screen input
Operation mode	Periodic operation, continuous operation
Program settings	The test program name and program parameters can be customized, and the program storage and import are supported.
Display function	Real-time dynamic refresh sampling data and setting parameters, real-time curve refresh function. Can display pressure, flow, temperature, test time, etc.
Testing time	0-999min (touch screen control), there are corresponding standard time options for different waterproof requirements.
Testing frequency	1-999 times (touch screen control)
Alarm function	Alarm automatic shutdown, alarm record viewing and exporting, alarm setting and fault analysis functions
Record function	The sampling time is 10s, and the curve and experimental data within three months can be recorded. The sampling data at each moment within three months can be inquired in detail. It can be exported by USB2.0, printed and recorded on the PC, and the data report can be generated.
4. Security system
Emergency stop	The equipment is equipped with a fault alarm buzzer, and an emergency stop button is set on the control panel. If the equipment fails to stop, the emergency stop button can be used to stop
Cooling System	Compressor overheating; compressor overcurrent; compressor overpressure; condensing fan overheating
Test box	Adjustable over-temperature; test space temperature fuse; air-conditioning channel limit over-temperature; fan motor overheating
Other	Main power phase sequence and phase loss protection; leakage protection; overload and short circuit protection The main power switch has leakage protection function; Equipped with waterway safety protection device; water shortage alarm.
5. Conditions of use (the user guarantees that the following conditions are met)
Installation site	The ground is flat and well ventilated; There is no strong vibration around the device; There is no strong electromagnetic field around the device; There are no flammable, explosive, corrosive substances and dust around the equipment; Appropriate space for use and maintenance is reserved around the equipment, see the manual for details
Environmental conditions	Temperature: 5℃～35℃ Relative humidity: ≤85% Air pressure: 86kPa～106kPa
Power supply conditions power supply	AC380V three-phase five-wire Voltage allowable fluctuation range: AC (380 ± 38) V
Battery capacity Maximum current	Frequency allowable fluctuation range: (50±0.5)Hz The grounding resistance of the protective ground wire is less than 4Ω The user is required to configure the air or power switch of the corresponding capacity for the equipment at the installation site, and And this switch must be used independently for this device

Why Choose SN Automotive Ice Water Splash Test Equipment?

Advantage	Benefit
ISO & VW Standard Compliance	Meets global automotive testing requirements
Real Road Condition Simulation	Reproduces winter cold water impact environments
Dual Test Capability	Supports splash and immersion thermal shock testing
High Reliability Design	SUS316 chamber and corrosion-resistant components
Intelligent Operation	Automated testing with data recording
