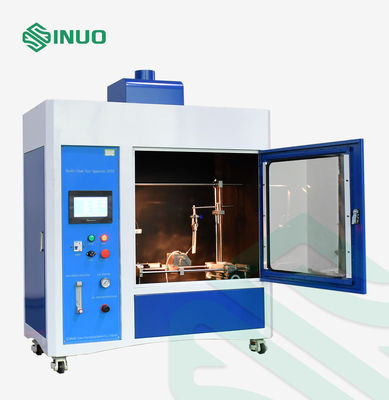

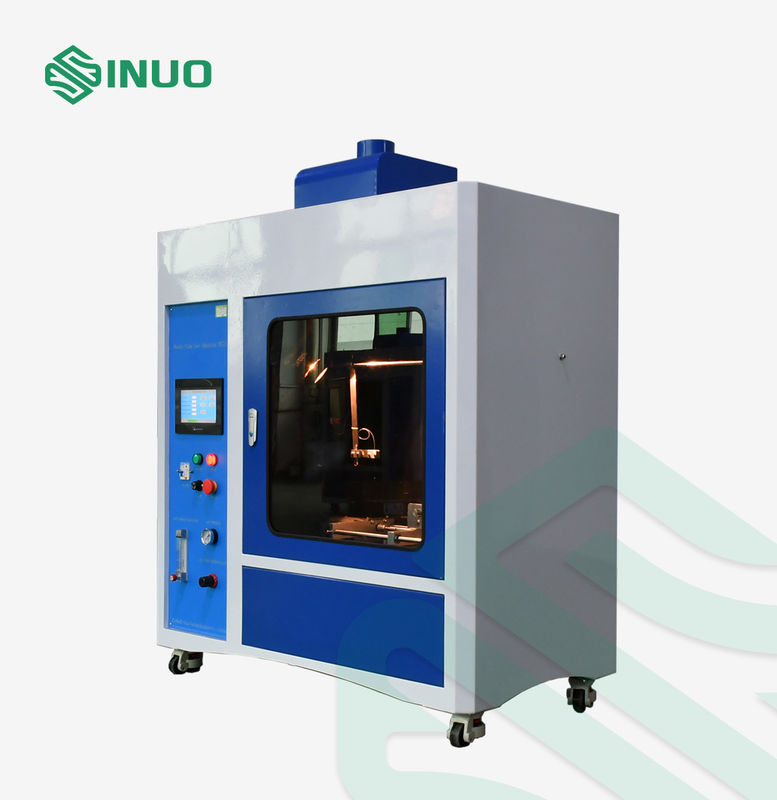

IEC60335-1 clause 30.2.3.2, Annex E Needle Flame Test Apparatus

The Needle Flame Test Apparatus is designed to evaluate the fire hazard of electrical and electronic products, components, insulating materials and solid combustible materials under fault conditions.

The tester applies a controlled needle flame to the test specimen at a specified angle and evaluates whether the material ignites, as well as the flame duration and combustion behavior after exposure.

The equipment is designed in accordance with IEC 60695-11-5 and is applicable to the needle flame testing requirements specified in IEC 60335-1 Clause 30.2.3.2, Annex E, and other relevant standards.

With PLC control and a 7-inch color touchscreen, the SN773 provides automated test operation and convenient parameter monitoring for laboratory and quality-control applications.

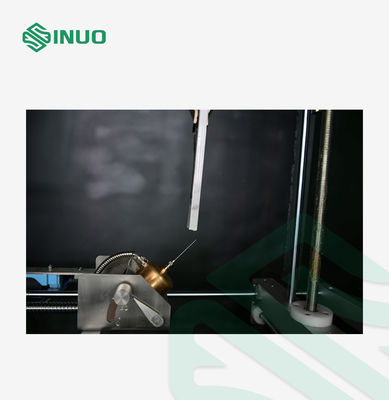

The test uses a needle-shaped burner supplied with butane gas. The burner is positioned at 45° to the specimen during the test.

A specified flame is applied to the sample for the required duration. The fire hazard is evaluated based on factors including:

• Whether the specimen ignites
• Whether combustion continues after flame application
• Burning duration
• Flame propagation or combustion behavior

The test helps assess the resistance of materials and components to ignition caused by a small external flame under abnormal or fault conditions.

The PLC control system automates the test sequence and improves testing repeatability.

A user-friendly touchscreen interface allows operators to set and monitor the test parameters conveniently.

The flame height is adjustable to 12 ± 1 mm and can be checked using the supplied flame height gauge.

The integrated timer supports precise measurement of ignition and combustion duration.

The test procedure incorporates an independent air-draft system to help maintain the required testing conditions.

Parameter/ model	SN773
Working voltage	AC 220V/50Hz
Control	PLC
Display	7 inch color touch screen
Timing device	9999X0.1S
Combustor	Inner boreφ0.5mm ± 0.1mm , OD ≤φ0.9mm, L ≥ 35mm, stainless steel
Combustion angle	tilt 45°( testing ) or vertical ( when adjust the height of the flame)
Height of the flame	12±1mm adjustable(with flame height gauge)
Gas category	95% butagas ( can use the bottled lighter gas)
Range of temperature test	0~1000℃
Flame warming requirement	From 100°to 700°,time for standard values within 23.5S±1S
Temperature thermocouple	φ0.5 armour nickel-chromium/nickel aluminum wire K-Thermocouple

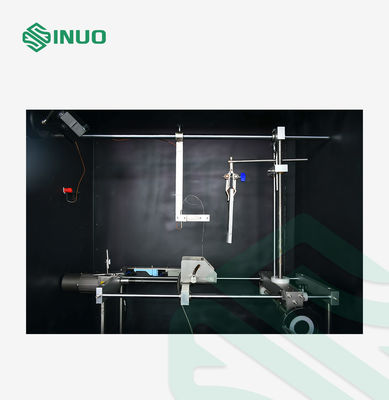

Work shop	0.5 cube, staunless steel case, black yogon background
Testing process	Test procedure automatic control, independent air draft
Volume size adjustment	Flowmeter adjustment
Accessories	A White Pine Board *1 Tissue Paper *5 Flame height gauge as per figure A.3 *1 A remote controller*1: A aluminum foil exhaust pipe *1
Equipment size & weight	1100mm* 550mm* 1100mm, 120KGS
Conforms to standard	IEC 60695-11-5,IEC60335-1, etc.
