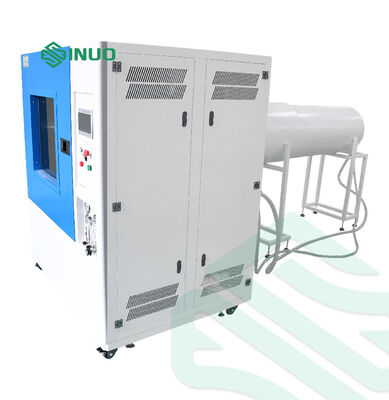

IEC 60529 IPX5 IPX6 High-Pressure Water Spray Test Equipment Waterproof Chamber

The IPX5 IPX6 Waterproof Test Chamber is designed for IEC 60529 ingress protection and IP rating testing. It features dedicated water jet nozzles, adjustable flow and pressure, a motorized turntable, and continuous water circulation for reliable and repeatable testing.
Suitable for electrical, electronic, lighting and automotive products, the chamber supports waterproof testing for product development, quality inspection and compliance verification.

Equipped with two dedicated stainless-steel spray nozzles:

• IPX5: Ø6.3 mm nozzle
• IPX6: Ø12.5 mm nozzle

The system supports two high-pressure water jet test levels within one test chamber.

The water spray system incorporates a digital flow meter and pressure gauge for monitoring and adjustment of test conditions.

Water collected at the bottom of the chamber is returned to the tank and continuously recirculated, making the system suitable for repeated waterproof testing.

The 1600 mm diameter turntable rotates at an adjustable speed of 1–7 rpm, helping expose different surfaces of the specimen to the water jet.

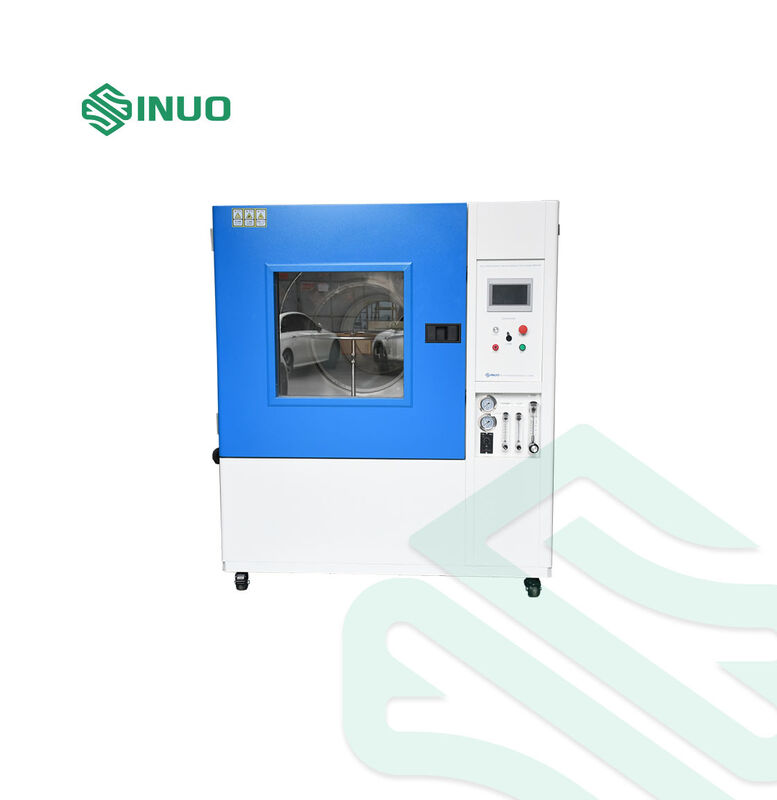

The LCD touchscreen controller allows operators to set test time and control the test process conveniently.

The chamber and spray piping are manufactured from SUS304 stainless steel for durability and resistance to continuous water exposure.

The system operates through a closed-loop high-pressure water circulation system.
Water is stored in the tank at the bottom of the chamber. During testing, the pump draws water from the tank and pressurizes it before delivering it through the stainless-steel spray piping.

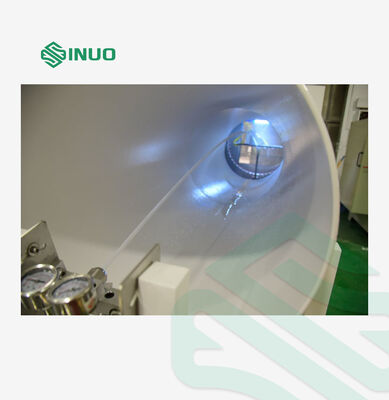

For IPX5 and IPX6 testing, the corresponding spray nozzle directs water toward the test specimen. The specimen is positioned on the motorized turntable, while the turntable rotates at the preset speed.
The water flow rate and spray pressure are monitored during the test, and the water is collected and returned to the tank for continuous circulation.
This configuration helps provide stable and repeatable conditions for IP waterproof testing and ingress protection evaluation.

Inner Chamber Size	2000*2000*1000mm(W*D*H)
Outer Chamber Size	Approx.4800*2060*1800mm(W*D*H)
Sample Size
Turntable Diameter	1600 mm
Turntable Load Capacity	10 kg
Number of Spray Nozzles	2; 1 for IPX5 and 1 for IPX6
Water Exposure Surface	Side of the product
Nozzle-to-Sample Distance	2500*3000mm
Nozzle Orifice Diameter	IPX5:φ6.3 mm IPX6:φ12.5 mm
Water Flow Rate	IPX5:12.5±0.625(L/min) IPX6:100±5(L/min)
Pipe Diameter	1/4-inch and 1-inch high-pressure hoses, 1 each
Water Spray Pressure	30–200 kPa, adjustable according to flow rate
Turntable Speed	1–7 rpm
Spray Duration	3, 10, 30, 9999 min, adjustable
Operating Time	1–9999 min, adjustable
Water Circulation System	Continuous water circulation
Pressure Gauge	Displays water spray pressure
Control System	Self-developed touchscreen control system (Teelong)
Spray System	Water pump, pressure gauge, and fixed spray pipe support
Spray Pipe Material	Stainless steel
Chamber Material	SUS304 stainless steel
