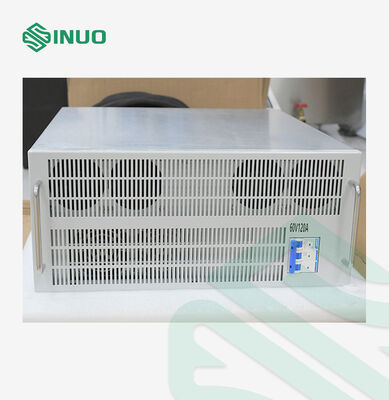

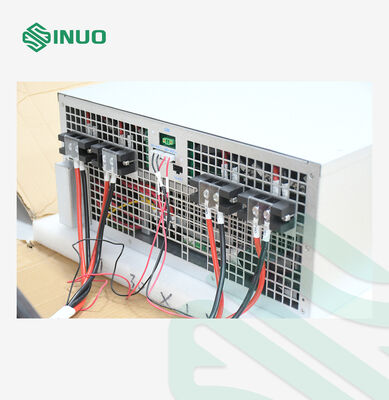

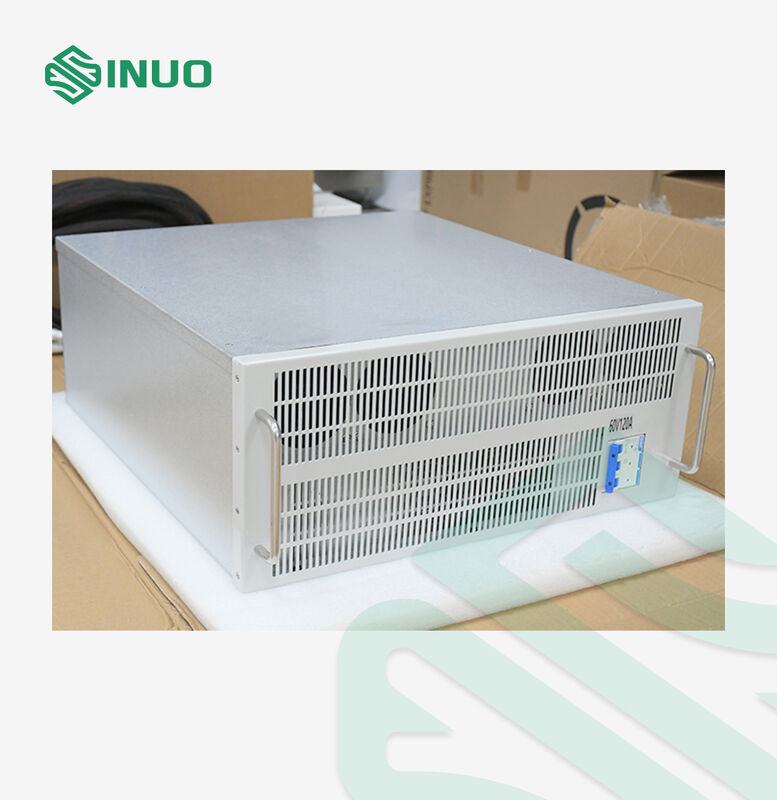

60V 120A Lithium Battery Charge Discharge Tester for Cycle Life & Capacity Testing

60V 120A Lithium Battery Charge Discharge Tester for Cycle Life & Capacity Testing

Product Overview

The 60V 120A Lithium Battery Charge Discharge Tester is a high-precision battery testing system designed for evaluating lithium battery and battery pack performance.

It supports programmable constant current (CC), constant voltage (CV), constant current/constant voltage (CCCV), constant power (CP), constant voltage discharge and rest modes. With two fully independent main channels, different test conditions can be configured independently.

The system measures voltage, current, capacity and energy in real time, with optional temperature data acquisition. Test data can be stored and analyzed for battery performance evaluation and report generation.

Its energy feedback technology helps reduce heat generation and power consumption during operation, making it suitable for long-duration battery charge and discharge testing.

Key Features

• 2 fully independent main channels
• Voltage range: 0–60V charging / 8–60V discharging
• Maximum current: ±120A
• Voltage resolution: 0.1mV
• Current resolution: 0.1mA
• Voltage and current accuracy: ±(0.05%RD + 0.05%FS)
• Current response time: ≤20ms
• Energy feedback technology
• Optional temperature data acquisition
• RJ-45 network communication

Technical Parameters
