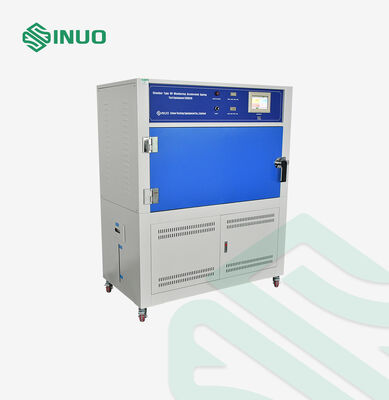

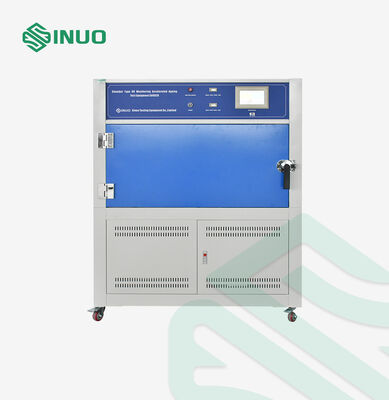

ISO 4892-82 Compliant UV Accelerated Weathering Test Chamber with UV-A or UV-B Lamps and Automatic Water Spray

Model

SN882B

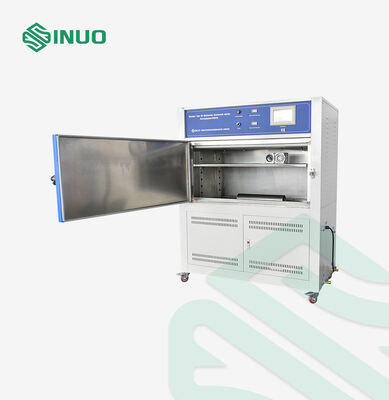

Sample placement area

Chamber type

WDH=1140*600*500(mm)

Sample size

WDH=1100*600*500(mm) Inner size sample

Shape space

About 1400*1750*750(mm)W×H ×D

Center distance in the lamp

70mm

Distance between the test surface of the sample and the center of the lamp

50±3 mm

Nozzle quantity

Top row 4 pcs

Spraying pressure

70～200Kpa adjustable

UV-B

Lamp irradiation distribution diagram

1.Standard machine irradiation intensity 0～0.9 is W/m2.313nm, adjustable

UV-A lamp irradiation distribution diagram

1. Standard machine irradiation intensity is 0～0.9W/m2.340nm, adjustable

Lamp length

1220mm

Lamp power

40W

Lamp lifespan

More than 1600h

Number of lamps

8 pcs lamps in the top row

Note: Customers can select either UV-A or UV-B lamps when placing an order. If no specific instructions are provided, the default configuration will be UV-A lamps.

Weight

80 kg

Maximum power

3 KW

Maximum current

15A

Power supply conditions and power supply

AC 220V single-phase two-wire and protective grounding; voltage fluctuation range ±10%V; frequency fluctuation range 50/60Hz; TN-S or TT power supply; protective grounding resistance less than 4Ω; users are required to configure an air or power switch of corresponding capacity for the equipment at the installation site, and this switch must independently control the use of this equipment

Performance indicators

Operating environment conditions

The values ​​are measured when the ambient temperature is +25℃, the relative humidity is ≤85%, and there is no test sample in the test chamber.

Temperature and humidity range

Irradiation temperature: 50～ 70℃

Condensation temperature: RT～ 60℃

Spraying temperature: room temperature

Relative humidity: Condensation cycle ≥85%RH; Irradiation cycle ≦75%RH

Main technical parameters

Temperature resolution: 0.01℃

Temperature deviation: ±1℃

Temperature uniformity: 2℃

Temperature fluctuation: ±1℃

Heating rate

Irradiation temperature RT→+70℃≤45 min

Condensation temperature RT→+60℃≤45 min

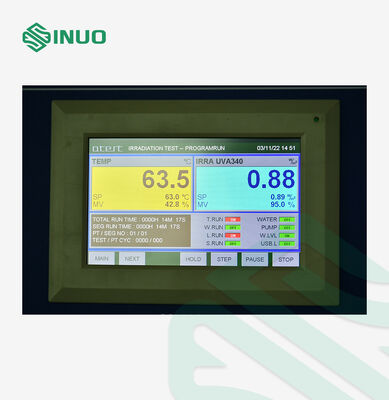

Control Panel

Power switch, alarm, radiation accumulation timer, radiation ammeter, radiation intensity adjustment knob, controller

Power distribution control cabinet

Cooling fan, distribution board, controller,

Lamp arrangement

Radiation Heating System

Adopt scale-type heating tube, multi-wing centrifugal fan air supply loop, temperature controller output control contactless SSR, achieve temperature balance, long-term stable operation

Condensation heating system

The heating method is steam heating, and the nickel-metal alloy heating tube P.I.D controls the heating to achieve temperature balance.

Water supply system

Manual and fully automatic water supply control systems are available. Just connect to the water pipe for automatic control, easy to use.

Note: If the tap water has too much impurities or is acidic or alkaline, a screening program needs to be installed at the water inlet.

Drainage system

Drain valve control device, manual drainage mode

Automatic over-water overflow control system

Spray system

A booster pump is used to control the spraying water pressure.

The spraying time and spraying cycle are fully automatically controlled. Accurate over-water overflow device
