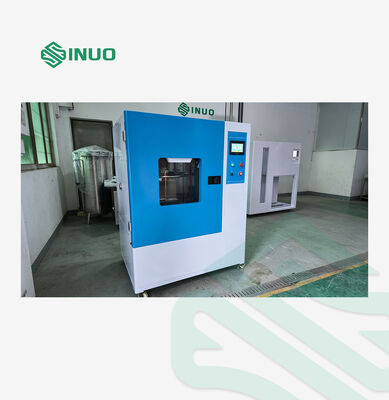

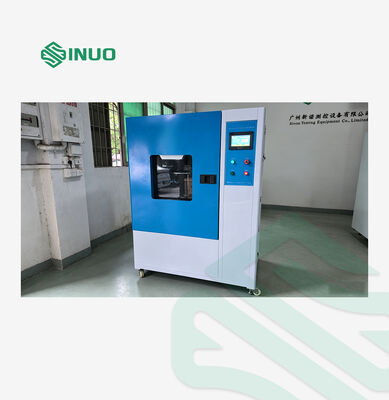

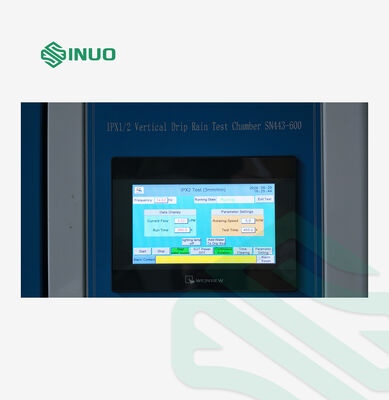

IEC 60529 IPX1‑2 Vertical Drip Rain Test Chamber For Electronic & Auto Parts

Technical parameters

Structural Parameters

Drip Plate Size

Approx. L600 × W600 mm

Inner Chamber Size

Approx. L800 × D800 × H1000 mm

Overall External Dimension

Approx. L1250 × D1020 × H1750 mm

Drip Hole Diameter

Ø0.4 mm

Spacing Between Drip Holes

20 × 20 mm

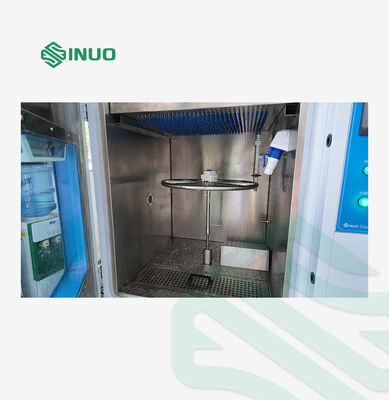

Turntable Diameter

Ø600 mm

Functional Parameters

Rainfall Volume

IPX1: 1±0.5 mm/min
IPX2: 3±0.5 mm/min

Flow Regulation Mode

Manual adjustment

Drip Plate Lifting Mode

Fixed non-liftable type; lifting realized by sample carrier turntable

Turntable Lifting Height

400–700 mm

Turntable Load Capacity

50KG

Turntable Tilt Angle

0° or 15° (horizontal reference)

Turntable Rotation Speed

1 r/min (for IPX1 test)

Test Time Range

0-999 min

Safety Protection Devices

Earth leakage protection, water shortage protection, short-circuit protection

Electrical Parameters

Power Supply

AC 220V

Rated Power

1.0 kW

Standard accessories

1 copy of operation manual
1 copy of factory certificate
1 equipment warranty card
1 filter cartridge
100 test drip needles
20 brass drip needle bases

Operating Conditions

The user shall guarantee the following conditions and complete corresponding connections.

Installation Site

1. Flat floor with smooth drainage; floors and walls shall be waterproofed, equipped with floor drains or drainage ditches.
2. Floor load capacity ≥ 200 kg/m²
3. Well ventilated site
4. No severe vibration around the equipment
5. No strong electromagnetic field interference around the equipment
6. No flammable, explosive, corrosive substances or dust near the equipment
7. Adequate space for operation and maintenance around the unit: 600 mm clearance at rear, left, right and top sides
8. 1200 mm clearance at front side of the equipment

Ambient Conditions

· Temperature: 5°C ~ 35°C
· Relative Humidity: ≤85% RH
· Atmospheric Pressure: 86 kPa ~ 106 kPa

Power Supply Conditions

Voltage & Frequency

AC 220V±10%, 50Hz±10%; Live wire + Neutral wire + Protective Earth wire

Installed Power

1.0 kW

Protective Earth Resistance

Protective earthing resistance less than 4 Ω

Power Switch

1. User shall install an independent residual current circuit breaker (RCCB) of matching capacity exclusively for this equipment at the installation site.
2. Knife switches or wall sockets are prohibited.
3. The residual current circuit breaker shall be installed within 2 meters from the equipment.

Water Supply Requirements

1. User shall provide water supply with water pressure ≥0.2 MPa, fitted with a 4-point water tap at the installation site.
2. The water tap shall be within 2 meters from the equipment.

Air Supply Requirements

Air compressor is required; recommended air pressure: 0.6 ~ 0.8 MPa.
