IEC60335‑1 Tracking Resistance Tester for Appliance Insulation Performance Test

IEC60335‑1 Tracking Resistance Tester for Appliance Insulation Performance Test

Product information:

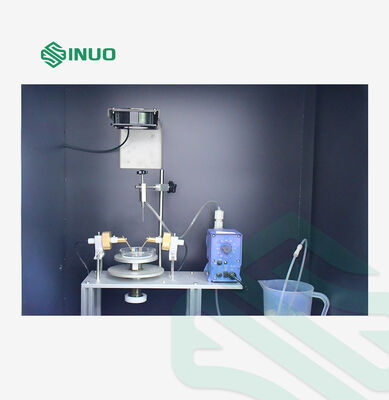

The SN774 Comparative Tracking Index (CTI) and Proof Tracking Index (PTI) tester is a professional laboratory testing device engineered for evaluating the tracking resistance performance of solid insulating materials. Fully compliant with global IEC, UL and ASTM international standards, this precision testing equipment is widely adopted by quality inspection laboratories, manufacturing factories and third-party certification institutions across Europe, North America, Southeast Asia and other global regions.

Simulating the actual working environment of electrical products, the tester adopts ammonium chloride liquid dripping and high-voltage electrode conduction mode to detect insulation failure, tracking breakdown and flame ignition of insulating materials under the combined action of electric field, humidity and contaminants. It provides accurate and reliable test data for material selection, product safety certification and quality control of electrical and electronic products.

Product Advantages & Key Features

High-precision Test Configuration: Equipped with imported Prominent micropump to ensure ultra-accurate liquid drop volume and dripping interval, eliminating manual operation errors and ensuring repeatable test results.

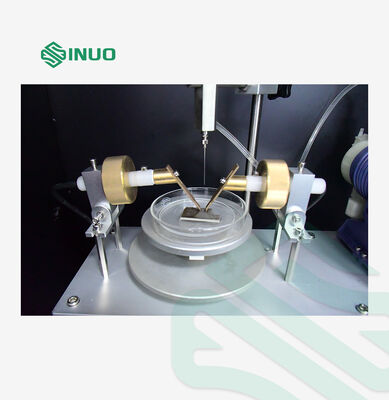

Professional Platinum Electrode: Adopts standard-size platinum electrode with 60° included angle and 1.00N constant pressure, real-time pressure display on screen, fully meeting standard test requirements.

Intelligent PLC Control System: Equipped with 7-inch full-color touch screen, one-click setting of test voltage, current, dripping times and timing parameters, simple operation and intelligent data display.

Safe & Humanized Design: Closed test chamber, external operation after door closing, automatic alarm for tracking failure (≥2s), effectively ensuring operator safety.

Adjustable & Calibratable Structure: Equipped with standard gauge block, adjustable table height and electrode angle, convenient for quick calibration and meeting diverse test demands.

Wide Application Coverage: Suitable for all kinds of electrical insulation materials, engineering plastics and electrical accessories, supporting industrial quality inspection and R&D testing.

Technical Parameters

Parameter\ model	SN774 (0.5m³)
Working voltage	AC 220V±10% / 50Hz,1KVA
Control	PLC
Display	7 inch color touch screen
Testing voltage	0～600V adjustable,precision 1.5％
Timing device	9999X0.1S
Electrode	Platinum electrode , one pair
Platinum Electrode dimension	(5±0.1) x(2±0.1)x(5)mm, 30°slant
Electrode included angle and distance	60°±5°, distance is (4±0.1㎜)
Electrode pressure	1.00N±0.05N The pressure can be adjusted and the value can be measure and real-time displayed on the touch screen
Dropping liquid control	Controlled by an micropump The dropping liquid volume and interval are accurate Micropump brand: Prominent
The interval of dropping liquid	30±5S, adjustable
Dropping liquid height	35±5mm
Dropping liquid delay	0.2S(solenoid valve opening time)
Dropping liquid size	45～50 drip/cm3
Time-delay circuit	2±0.1S(in 0.5A or larger current)
Short-circuit pressure drop	8% MAX
Short-circuit current	1±0.1A 1％
Wind speed	0.2m/s
Environmental requirement	0～40℃, relative humidity≤80%, in the place of no obvious vibration and corrosive gas
Equipment size & weight	1100mm* 550mm* 1100mm, 180KGS
Conforms to standard	IEC60695, IEC60112, IEC 60598-1, IEC 60884-1, UL746A, ASTMD3638, etc.
