IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing

Name: IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN2134
Price: Negotiable USD
Availability: InStock

Brand Name:	Sinuo
Model Number:	SN2134
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	90 Sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate（Cost Additional）

Gauge Quantity:

30 Pcs Creepage Distance Gauges

Gauge Sizes:

1.0mm‑10.0mm

Product Type:

Creepage Distance Test Gauges

Test Object:

Clearance Between Conductive Parts Or Conductive Part & Equipment Bounding Surface

Main Application:

Measure Shortest Creepage Path Along Insulation Surface Between Conductive Parts

Measuring Principle:

Detect Shortest Creepage Path Along Insulation Surface Per Standard Requirements

Packaging Details:

Carton boxed

Supply Ability:

90 Sets/month

Highlight:

IEC60598-1 creepage distance gauges

insulation creepage path testing tools

electric vehicle insulation testing equipment

Product Description

IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing

Complied Standards

IEC 62196-1 Ed.4CDV 2020 clause 28.

Product information:

These test gauges conform to IEC60598-1, IEC60335-1 Clause 29 and IEC60884-1 etc. They are used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.

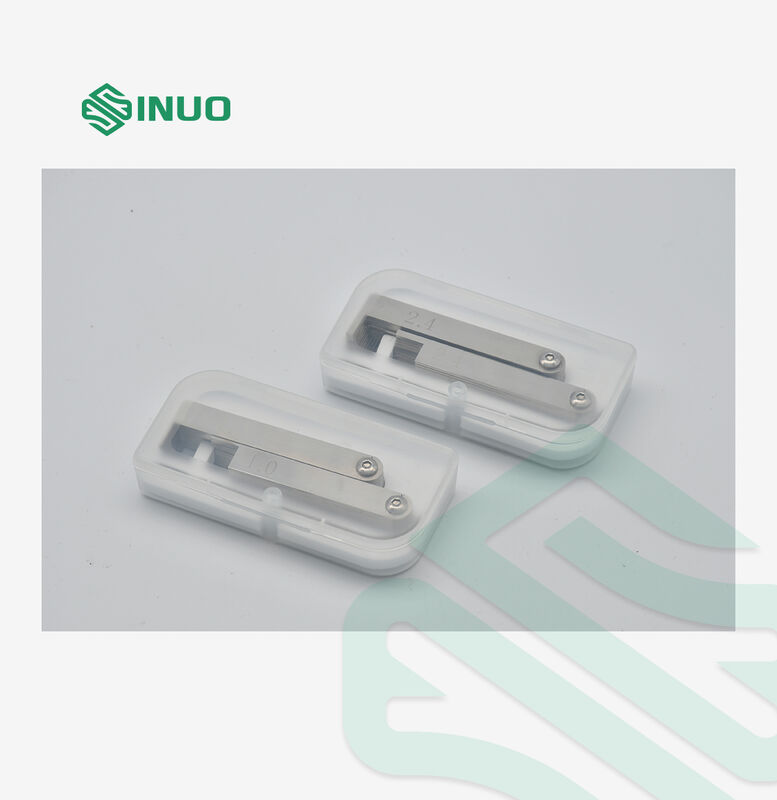

IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing

Technical parameters:

Model No.

Size Specification

SN2134

1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/

1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm/2.5mm/2.8mm/3.2mm/3.6mm/

4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm

Total 30 creepage distance gauges

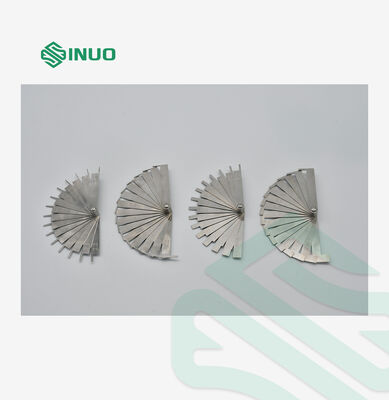

IEC60598‑1 Creepage Distance Gauges for Insulation Creepage Path Testing
