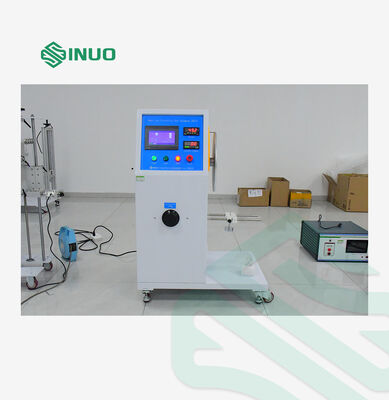

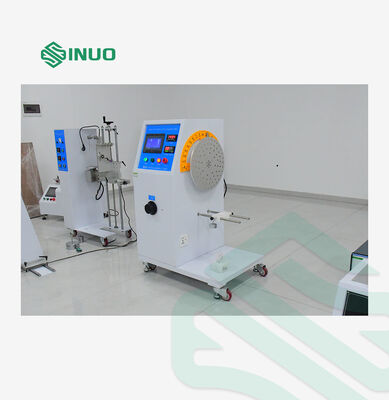

IEC 60335‑1 Cord Flexing Tester for EV Charging Cable Fatigue Test

IEC 60335‑1 Cord Flexing Tester for EV Charging Cable Fatigue Test

Brand Name:	Sinuo
Model Number:	SN1112
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	10 sets/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate（Cost Additional）

Test Cycles:

0-999999, Can Be Preset

Loading Weight:

5N,10N

Loading Voltage:

0-250V, Can Be Regulated

Input Power:

AC220V, 50Hz

Standard:

IEC 60335-1

Drive Mode:

Electrical

Packaging Details:

Plywood case

Supply Ability:

10 sets/month

Highlight:

IEC 60335-1 EV charging cable tester

EV charging cable fatigue test equipment

cord flexing tester for EV cables

Product Description

IEC 60335‑1 Cord Flexing Tester for EV Charging Cable Fatigue Test

Product information:

Standard: Clause 25.14 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements.

Application: It is used to check that the supply cord of the small household appliances (such as Coffee pot / electric iron) and lamps is adequately protected against excessive flexing where it enters the appliance.

Test sample: Small household appliances, such as coffee pot, electric iron, toaster, luminaires and etc.

Feature: The test stations, test angles, load voltage can be customized. The test cycles, speed, voltage, etc., can be preset.

IEC 60335‑1 Cord Flexing Tester for EV Charging Cable Fatigue Test

Technical parameters:

Input Power	AC220V, 50Hz

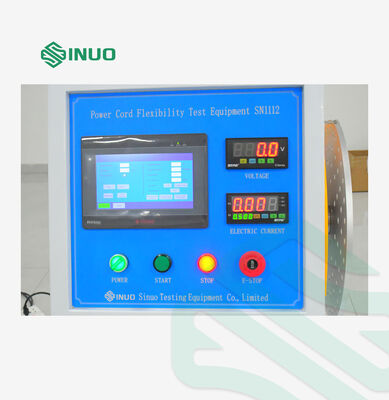

Control Method	PLC control, touch screen operation
Station	One
Drive Mode	Electrical

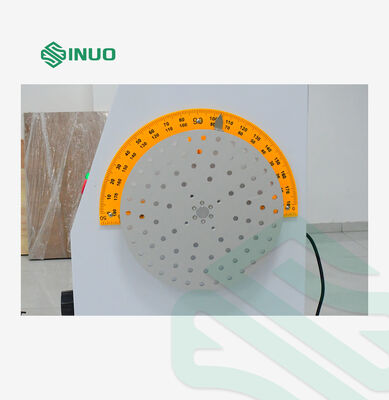

Flexing Angle	0-360°, preset on the touch screen
Flexing Speed	0-60 cycles/min, can be preset
Test Cycles	0-999999, can be preset
Loading Weight	5N,10N
Loading Voltage	0-250V, can be regulated
Sample judgment	Judge the conduction by current

IEC 60335‑1 Cord Flexing Tester for EV Charging Cable Fatigue Test
