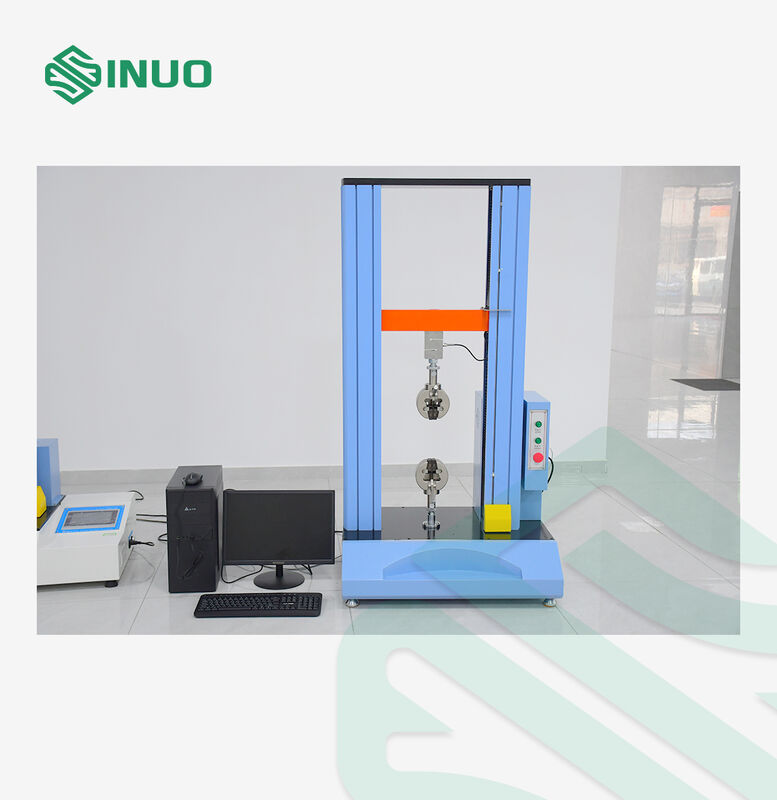

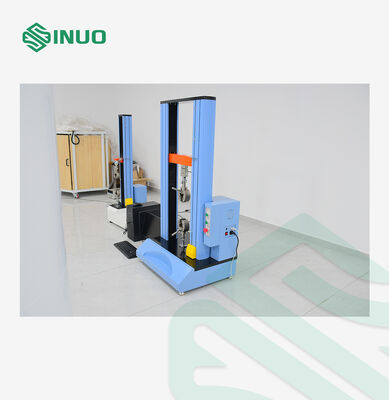

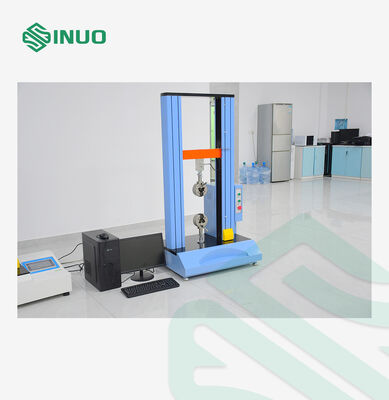

10kN Universal Material Testing Machine for Tensile Compression & Bending Tests

Product Overview:

This machine adopts computer control, widely used in the mechanical properties of various materials test, with special fixture is also suitable for all kinds of finished products tensile, compression, stripping, shear, tear, bending (folding) test. It can print a number of data, according to different data to make graphic output comparison, high control precision, easy to operate; Modular design, a variety of accessories variety, flexible collocation.

Key Features

Multi-Function Material Testing Platform

One testing frame can be configured for different mechanical testing applications, including:

• Tensile strength and elongation testing
• Compression testing
• Three-point bending testing
• Shear testing
• Tear testing
• Peel testing
• Puncture testing
• Spring tension and compression testing
• Static and dynamic cycle testing

The computer-based control system allows test speed, load conditions, rupture conditions and test duration to be configured according to the selected test method.

Servo Drive for Stable Motion Control

The servo motor system provides closed-loop control of position, speed and torque, helping maintain stable movement during testing.

The drive system is designed for smooth operation at both low and high speeds and provides rapid response during acceleration and deceleration.

Precision Ball Screw Transmission

The machine uses a Taiwan ZPT ball screw transmission system for accurate and stable mechanical movement.

The ball screw structure provides efficient power transmission, low friction and good positioning repeatability, making it suitable for controlled tensile, compression and bending test movements.

High-Speed Data Acquisition

The control system uses a 24-bit analog-to-digital acquisition device with a sampling rate of up to 2,000 measurements per second.

This enables the system to capture rapid changes in force during a test and process high-resolution measurement data.

The displacement encoder provides a resolution of up to 0.0005 mm according to the supplied configuration.

Flexible Test Software

The supplied computer software provides test setup, real-time measurement, curve analysis and report generation.

Users can configure different test projects and select the required measurement units, control parameters and result items.

Supported curves include:

• Load–Displacement
• Load–Time
• Displacement–Time
• Stress–Strain
• Strain–Time
• Stress–Time

The software also supports statistical calculations, including mean value, standard deviation and coefficient of variation.

Standard Test Fixtures

The universal testing machine can be supplied with multiple interchangeable fixtures for different mechanical testing applications.

The supplied three-point bending fixture is designed according to the configuration specified for ISO 178 testing.

A large deformation extensometer is also included in the supplied configuration for deformation measurement.

Testing & Measurement Software

The TM2101 computer measurement and control system is developed for universal material testing applications.

It can be configured for different test procedures and supports mechanical property evaluation under tensile, compression, bending, shear, tear, peel and puncture conditions.

Configuration list:

★ Software outstanding features

1. Support English and Chinese language interface switching.

2. Support functional navigation, users enter the corresponding test function module according to the navigation interface.

3. Support all kinds of metal material mechanical properties tests, such as metal tensile, compression, bending, shearing and other tests.

4. Support all kinds of non-metallic material mechanical properties test, such as cement compression and bending resistance, concrete compression, rigid foam compression, etc.

5. Support extended test function, users can add their own test items.

6. Independent open test project setting module, test projects can be established by technical personnel, test operators reference test projects to do tests, greatly reducing the professional level requirements of the majority of test operators and the difficulty of operation.

7. Test control process design, users view the test control steps at a glance, rich instruction types.

8. The name of test data can be modified and the sequence of display of test data can be adjusted to meet the special data output requirements of users.

9. Support custom appended test data items.

10. Support custom additional test standards and test data processing.

11. Support statistical calculation of test data (mean, standard deviation, coefficient of variation).

12. Support curve analysis;

13. Support test traceability.

14. Support custom test report, using Word or Excel spreadsheet, easy to operate, simple Settings, you can print or preview.

15. The software has a variety of equipment safety and test safety protection.

16. Detailed software help documentation.

Control & Safety System

The machine combines software control with physical control buttons for convenient laboratory operation.

Safety functions include:

• Emergency stop
• Fast/slow movement control
• Upper and lower travel limits
• Overload protection
• Automatic breakpoint stop
• Software and control-unit operation

The control board also provides multiple input and output interfaces for system expansion, including USB, RS232, RS485, analog input/output and encoder interfaces.
