IEC 62133 Compliant Mechanical Shock Test System with 25kg Maximum Load

IEC 62133 Compliant Mechanical Shock Test System with 25kg Maximum Load

Product information:

It is required by UN 38.3, IEC 60068 2 27, IEC 62133 and etc.

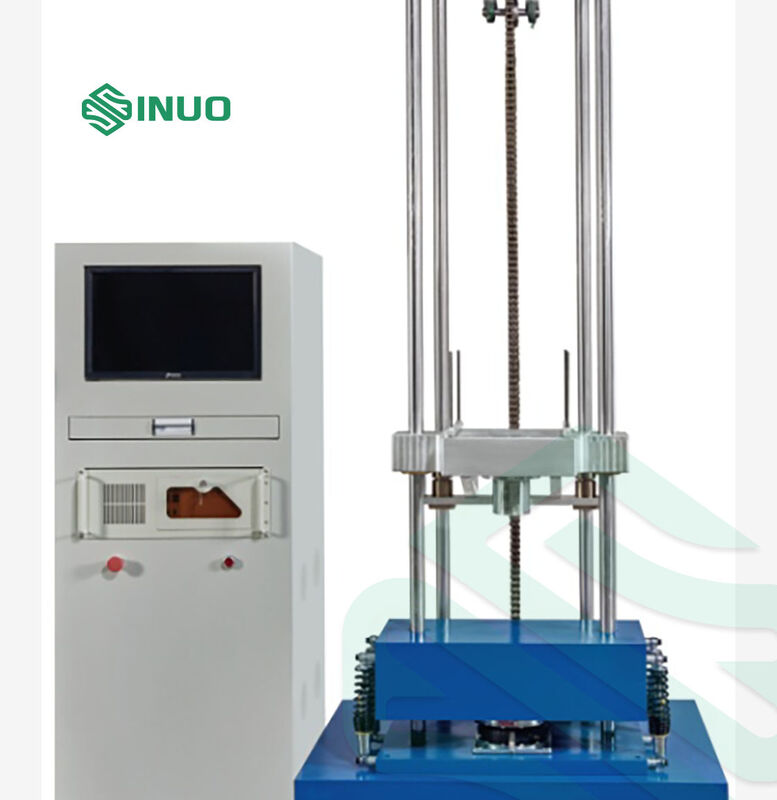

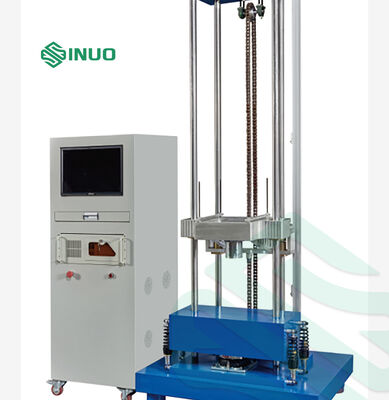

This machine is mainly suitable for the impact resistant test of electronic products, aerospace, ships, automobile parts, transportation and other fields. By selecting different waveform generators, impact tests of half sine wave, back peak sawtooth wave or square wave can be carried out.

It meets MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E and etc.

Structure:

Technical Parameters:

Key Features

High-Speed Shock Signal Acquisition

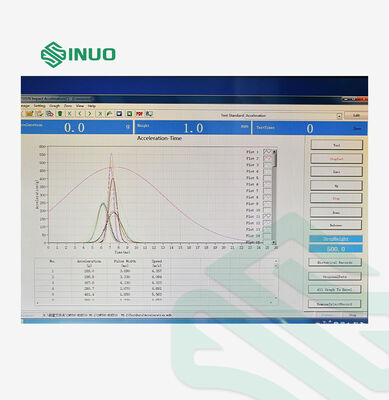

The system provides high-speed acquisition for transient impact signals, with a maximum sampling frequency of 1 MHz. This allows the system to capture rapid changes in acceleration during severe mechanical shock events.

The measurement system supports acceleration levels up to 100,000 gn and can identify impact pulses with a minimum duration of 0.1 ms, making it suitable for demanding shock and impact measurement applications.

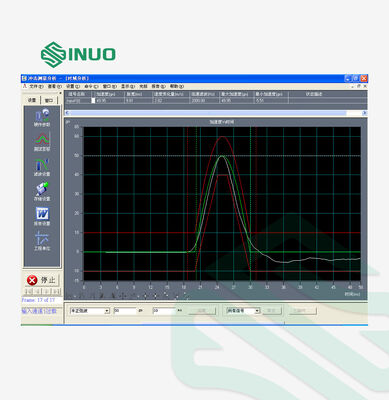

Multi-Frame Waveform Recording & Playback

Multiple impact waveforms can be recorded and stored for subsequent analysis. Recorded signals can also be played back for waveform comparison, test verification and laboratory data review.

Flexible Triggering

Both internal and external trigger modes are supported. The triggering function allows the acquisition system to capture the required impact event accurately while reducing unnecessary signal data.
