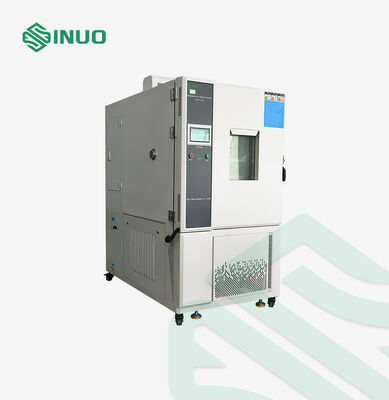

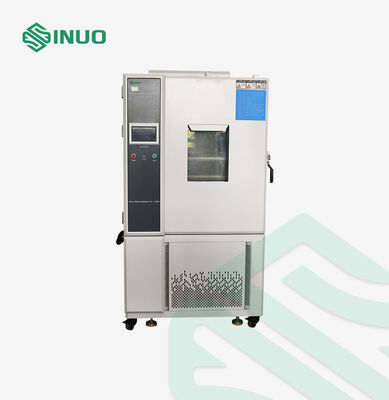

IEC 60068-2-1 Explosion-Proof Environmental Test Chamber for Temperature & Humidity Testing

Control & Operation

PLC and touch screen intelligent control system

Chamber Size

Inner Size

External Size

1000*1000*1000 mm

1250*2150*1950 mm

Temperature Range

-70 °C ~+150°C

Humidity Range

20%～98%RH

(Temperature: 20℃～85℃, refer to the temperature and humidity controllable range diagram, no active heat load)

Temperature fluctuation

±0.5℃

Humidity fluctuation

≤2.5%

Temperature deviation

≤±2.0℃

Humidity Deviation

≤±3%

Heating Rate

-70℃→+150℃ ≤2-3℃/min Average No-load

Cooling Rate

+150℃→-70℃ ≤1℃/min Average No-load

Load condition

None

Working noise

A sound level≤70dB(A)

(Measured in a soundproof room with an ambient temperature of 25°C and low echo. Using A weighting, test the average of 9 points. Each test point is 1 meter away from the noise source horizontally and 1 meter above the ground.)

Insulation enclosure structure

1. Outer wall material: A3 board spraying.

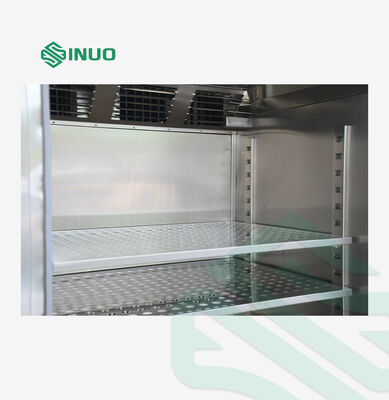

2. Inner wall material: brushed stainless steel plate SUS﹟304.

3. Chamber thermal insulation material: 100mm high temperature resistant rigid polyurethane foam.

4. Chamber door insulation material: 100mm high temperature resistant rigid polyurethane foam.

Bottom structure strength

The weight capacity of the track at the bottom of the test chamber: ≤100Kg/m² (load)

Air conditioning channel

1. Stainless steel long-axis centrifugal fans: 4 sets/90W.

2. Fan, heater, evaporator (also dehumidifier), drainage device, pressure balance port, adjustable air deflector, temperature sensor

Standard configuration of test chamber

1. Observation window: 400x600x40mm 3-layer vacuum tempered glass

2. Flat embedded handles

3. Door hinges: SUS #304 imported hinges

4. Energy-saving lamp inside the chamber

5. Lead hole: φ100mm 1 piece

Chamber door

1. The single-piece door opens outwards, with the hinge on the left and the handle on the right (when facing the front of the box).

2. Equipped with a safety door locking mechanism (the door can be opened in the test room), the door is equipped with electric heat to prevent condensation, and the visible range of the insulating glass observation window (W400×H600mm). The door frame is equipped with an anti-condensation electric heating device.

Explosion-proof pressure relief port

The equipment is equipped with one explosion-proof pressure relief port on the left side, measuring 300mm × 300mm. When the internal pressure of the chamber is ≥0.104MPa, the pressure relief port will automatically open.

Explosion-proof chain

Explosion-proof window

Control panel

Controller 7-inch display screen, temperature (humidity) control display screen, operating indicator light, and lighting button.

Mechanical room

Refrigeration unit, compressor water tray, pressure relief device, heating device

Power distribution cabinet

Distribution board, cooling fan, main power switch, transformer, intermediate relay, time relay, solid-state relay, AC contactor, circuit breaker

Heater

1. Fin-type radiator-shaped stainless steel electric heater

2. Heating control method: SSR (Solid State Relay) non-contact equal period pulse width modulation

3. Heating power: approximately 4KW

Power cable hole

Located on the back of the chamber
