IEC 62196 EV Plug Electronic Lock Test Machine Charging Connector Cycle Life Tester

IEC 62196 EV Plug Electronic Lock Test Machine Charging Connector Cycle Life Tester

Brand Name:	Sinuo
Model Number:	SNQC1023A
MOQ:	1
Price:	Customized
Payment Terms:	T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Polarity Conversion:

Automatic PLC Switching 1 S After Electronic Lock Feedback

Forward Conduction:

0–5000 Ms Adjustable, Resolution ≤1 Ms

Reverse Conduction:

0–5000 Ms Adjustable, Resolution ≤1 Ms

Fault Judgment:

Signal Feedback Monitoring With Automatic Fault Shutdown

Test Function:

Equipped With Push Rod Type Electronic Lock Test Function

Operation Mode:

Manual Or Program-controlled Operation

Packaging Details:

Plywood Case

Supply Ability:

10 sets per month

Highlight:

IEC 62196 EV plug cycle life tester

EV charging connector test machine

electronic lock test equipment for EV

Product Description

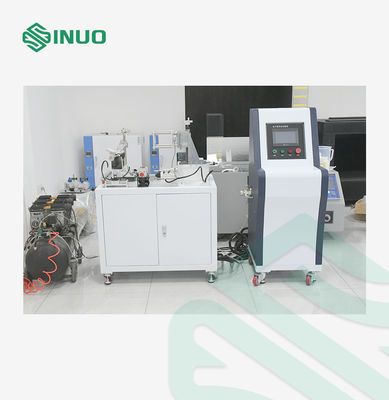

IEC 62196 EV Plug Electronic Lock Test Machine Charging Connector Cycle Life Tester

Product Overview

The EV Charging Connector Electronic Lock Test Machine is designed to evaluate the mechanical strength, durability, and operating reliability of electronic locking devices used in EV charging plugs, connectors and couplers.
It combines mechanical force loading, displacement measurement, electrical control and signal monitoring to simulate different operating conditions of an electronic lock.
The servo-driven system provides precise and repeatable movement, while the Mitsubishi PLC and 7-inch touchscreen HMI enable easy programming of test force, stroke, timing and cycle numbers.
IEC 62196 EV Plug Electronic Lock Test Machine Charging Connector Cycle Life Tester

Main Testing Functions

Electronic lock normal operation and service life testing
Manual emergency unlocking testing
Electronic lock extreme-condition cycle life testing
Structural strength testing
Locking rod tensile and compression force testing
Locking/unlocking signal monitoring
Electrical polarity conversion and load current control
Automatic fault detection and test shutdown

Technical Specifications

Test items	a) Normal operation (service life) test of electronic locking device b) Manual emergency unlocking test of electronic locking device c) Cycle life of electronic locking device under extreme conditions d) Structural strength test of electronic locking device
Workstation	Single station
Electrical control mode	Mitsubishi PLC intelligent integrated control, 7-inch color human-machine touch interface operation
Operation mode	Manual or program-controlled operation
Fixture	a) Meet the requirements of independent electronic locking device fixture or universal fixture; b) Meet the requirements of national standard, American standard, European standard AC and DC charging interface universal fixture
Test function	Equipped with push rod type electronic lock test function
Electronic locking device unlocking	It is capable of manually unlocking the electronic locking device and adopts an electronically controlled automatic operation mode. It is programmed to meet the normal operation (service life) requirements of the electronic locking device. The unlocking force requirement meets (0~50)N. The indication error is ≤±0.5%F.S., and the resolution is ≤0.1N.
Electronic locking device force	Equipped with a force-applying device for the locking rod mechanism of the electronic locking device. The force-applying device can clamp the end of the locking rod and apply axial thrust or tension. The force measurement range is required to meet (0~50)N. The indication error is ≤±0.5%F.S., and the resolution is ≤0.1N. The force-applying rate can be adjusted and the force value can be kept constant. The force-applying device can measure the displacement of the force-bearing part and the position status of the locking rod. The displacement measurement range meets (0~50)mm. The indication error is ≤±0.02mm, and the resolution is ≤0.01mm.
Polarity conversion	The PLC program switches automatically. And it switches 1s after monitoring the electronic lock status feedback.
Switch power supply	(0~24) VDC is adjustable, the voltage accuracy is better than 0.5 level, and the resolution is ≤0.1V.
Forward conduction	(0~5000) ms can be set arbitrarily, and the resolution is ≤1ms.
Reverse conduction	(0~5000) ms can be set arbitrarily, and the resolution is ≤1ms.
Interval time	Can be set arbitrarily within the range of (0~200)s. Resolution ≤1s. 1-200mA adjustable, load current coordinated action.
Function	Configured with 1-200mA adjustable load current. Equipped with a monitoring device to feedback the unlocking/locking signal of the electronic lock. Record the on-off status and number of signals.
Fault judgment	Built-in signal feedback judgment, automatic shutdown when abnormality occurs.
Number of tests	(0~99999) times can be set arbitrarily.
Safety protection	Ground protection, short circuit protection, overload protection.
Power sypply	Power supply: AC380V±10%/50-60Hz, 5kW
Equipment dimension and weight	Dimensions: about W1000D900H1400mm; Weight: about 200kg

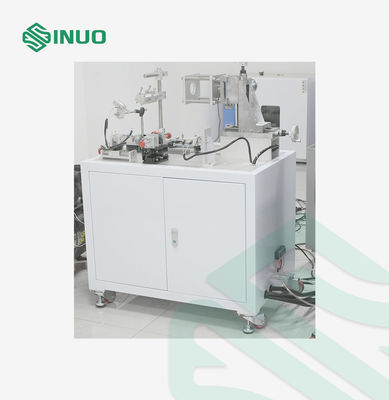

Flexible Fixture Design

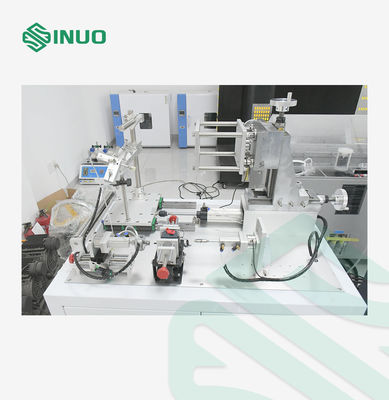

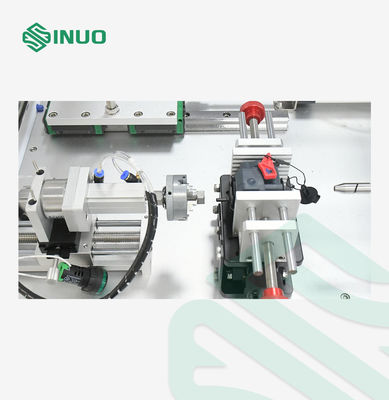

The three-axis adjustable fixture allows the tester to accommodate different EV charging connector structures.

Suitable for individual electronic locking devices
Supports universal fixture configurations
Applicable to AC and DC charging interfaces
Adjustable to different sample positions and dimensions
Suitable for multiple EV connector models

This makes the equipment practical for EV connector R&D, production quality control and laboratory durability testing.

Programmable Cycle Testing

The electronic lock tester supports up to 99,999 programmable test cycles.
Operators can preset:

Test cycle number
Force and movement conditions
Forward/reverse conduction time
Interval time
Load current
Electrical lock feedback conditions

During testing, the PLC monitors the locking/unlocking signal and can automatically stop the machine when an abnormal condition is detected.

Application Areas

Suitable for reliability and durability testing of:

EV charging plugs
EV charging connectors
EV couplers
AC charging interfaces
DC charging interfaces
Electronic locking devices
Industrial plugs and sockets
Electrical accessories with electronic locking mechanisms

Typical users: EVSE manufacturers, charging connector manufacturers, electrical testing laboratories, certification laboratories and product development teams.
